LT 125 (954000332-D) - Husqvarna Lawn Tractor (1991-10) Transaxle And Rear Wheel Parts Diagram

Lawn Tractor

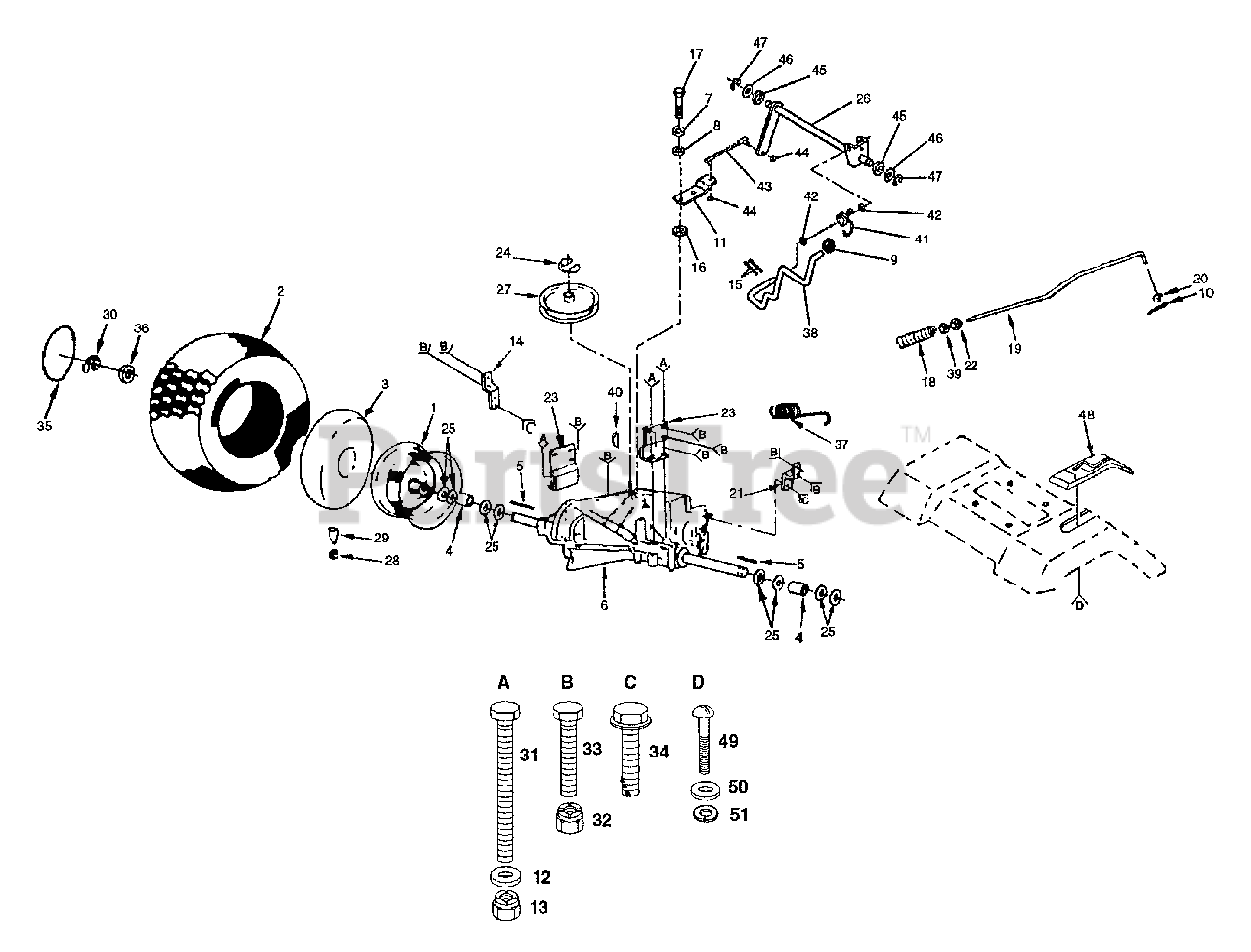

Transaxle And Rear Wheel Parts Diagram

  • Title

1

Husqvarna 532124999

Rim Assembly
(Superseded to 532106108)

$145.99

$

In Stock, only 1 left!

0

2

Husqvarna 532106268

Tire
(Superseded to 532420531)

$120.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532124926

Tube, Tire
(Superseded to 532007152)

Note: (Optional, Service Item Only)

$74.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532109502

Spacer, Split

$

$

Not available

5

Husqvarna 532123583

Key, Square 3/16 x 2

$4.99

$

In Stock, only 4 left!

0

6

Husqvarna 532127051

Transaxle, Peerless

Note: Model No. 930-010

$

$

Currently unavailable

7

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

8

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532121274

Knob, Control

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 876020412

Cotter Pin 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

11

Husqvarna 532127276

Arm, Shift

$

$

Currently unavailable

12

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532127285

Strap, Torque L.H.

$

$

Not available

15

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532105701

Washer, Shift Plate

$6.49

$

In Stock, only 1 left!

0

17

Husqvarna 871040412

Bolt, Hex 1/4-28 x 3/4 Gr. 8

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532106888

Spring, Rod, Brake
(Superseded to 532151332)

$6.49

$

In Stock, Qty 6

0

19

Husqvarna 532131867

Rod, Brake

$

$

Not available

20

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532121520

Strap, Torque R.H.

$7.49

$

In Stock, only 3 left!

0

22

Husqvarna 873350600

Nut, Hex Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

23

Husqvarna 532109167

Bracket, Transaxle

$

$

Not available

24

Husqvarna 812000028

Ring, Retainer

$7.49

$

In Stock, Qty 14

0

25

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 532127273

Shaft Assembly, Shifter
(Superseded to 532136978)

$

$

Not available

27

Husqvarna 532123666

Pulley, Input Transaxle

$37.99

$

In Stock, only 3 left!

0

28

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, only 1 left!

0

29

Husqvarna 532065139

Stem, Valve

$10.99

$

In Stock, Qty 20+

0

30

Husqvarna 812000001

E-Ring

$4.99

$

In Stock, Qty 17

0

31

Husqvarna 874760540

Bolt, Hex 5/16-18 x 2-1/2

$2.99

$

Usually ships in 3-10 days

0

32

Husqvarna 873680600

Nut, 3/8-16

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 874760612

Bolt, Hex 3/8-16 x 3/4

$4.99

$

In Stock, Qty 17

0

34

Husqvarna 817490512

Screw Hex Washer Hd. Thd. Form. Type TT 5/16-18 UNC x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 532124578

Cover, Wheel

$

$

Not available

36

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 532110422

Spring, Brake Return
(Superseded to 532146682)

$8.99

$

In Stock, only 1 left!

0

38

Husqvarna 532127288

Rod, Shifter
(Superseded to 532141002)

$

$

Not available

39

Husqvarna 873800600

Locknut, Hex W/Wsh. 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532125096

Key, Woodruff #9 3/16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532123782

Spring, Torsion

$

$

Not available

42

Husqvarna 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

43

Husqvarna 532123793

Rod, Link, Shift
(Superseded to 532166230)

$28.99

$

Usually ships in 3-10 days

0

44

Husqvarna 873530400

Nut, Nylock 1/4-28
(Superseded to 873610400)

$

$

Not available

45

Husqvarna 532127272

Bushing, Pivot

$

$

Not available

46

Husqvarna 532126591

Washer, Shim .53 x 1.25 x .0598

$

$

Not available

47

Husqvarna 812000003

Ring-E

$

$

Not available

48

Husqvarna 532127287

Console Shift

$

$

Not available

49

Husqvarna 874640806

Screw #8 x 3/8

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 819060718

Washer 3/16 x 7/16 x 18 Ga.

$2.99

$

Usually ships in 3-10 days

0

51

Husqvarna 810100800

Washer Lock # 8

$3.99

$

Usually ships in 3-10 days

0
