LT 125 (954002711-B) - Husqvarna Lawn Tractor (1995-01) Drive Parts Diagram

Lawn Tractor

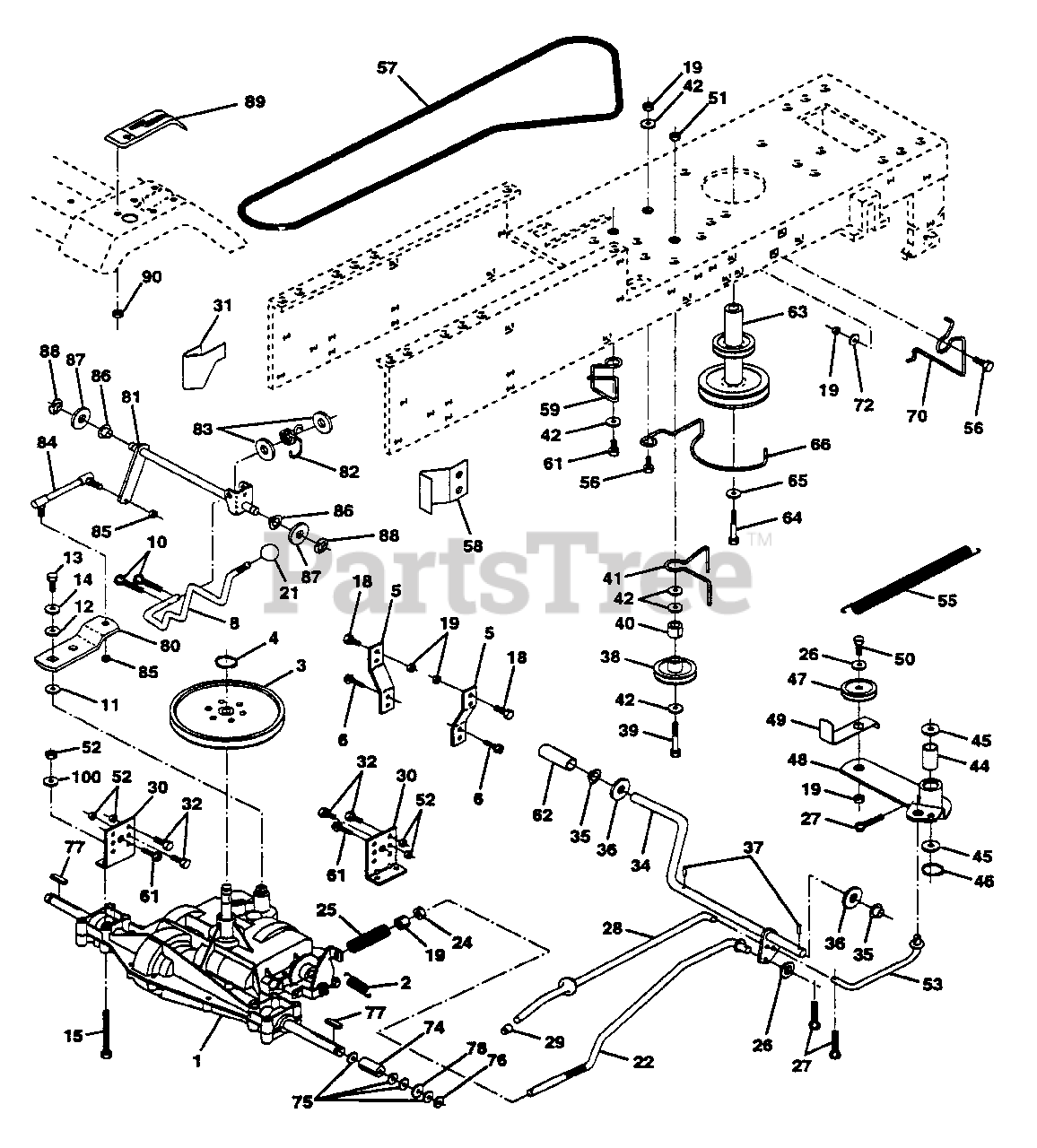

Drive Parts Diagram

  • Title

1

Husqvarna 532142603

Transaxle 6sp Model No. 4360-79
(Superseded to 532170269)

$

$

Not available

2

Husqvarna 532110422

Spring Return Brake T/a Zinc
(Superseded to 532146682)

$8.99

$

In Stock, only 1 left!

0

3

Husqvarna 532123666

Pulley Transaxle 18" tires

$37.99

$

In Stock, only 3 left!

0

4

Husqvarna 812000028

Ring Retainer # 5100-62

$7.49

$

In Stock, Qty 13

0

5

Husqvarna 532121520

Strap Torque 30 Degrees

$7.49

$

In Stock, only 3 left!

0

6

Husqvarna 817490512

Screw Tndrol 5/16-18 X 3/4 TYT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532130802

Bracket Saddle Shift
(Superseded to 532162240)

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532131679

Rod Shifter

$

$

Not available

9

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Ga.

$

$

Not available

10

Husqvarna 876020416

Pin Cotter 1/8 X 1 Cad

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532105701

Washer Plate Shf 388 Sq Hole

$6.49

$

In Stock, only 1 left!

0

12

Husqvarna 819091210

Washer 9/32 X 3/4 X 10 Ga

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874550412

Bolt 1/4-28 Unf Gr.8 w/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

15

Husqvarna 874780544

Bolt Fin Hex 5/16 - 18 UNC x 2.75

$

$

Not available

17

Husqvarna 532121520

Strap Torque LT

$7.49

$

In Stock, only 3 left!

0

18

Husqvarna 874780616

Bolt Fin Hex 3/8-16unc X 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

Nut Hex Lock W/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 817490512

Screw Thdrol 5/16-18 X 3/4 TYT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532121274

Knob Duckhead 1/2-13 UNC

$8.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532130804

Rod Brake Blk Zinc 27 326

$31.99

$

Usually ships in 3-10 days

0

23

Husqvarna 873800600

Nut Lock Hex W/wsh 3/8-16unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

25

Husqvarna 532106888

Spring Rod Brake 2 00 Zinc
(Superseded to 532151332)

$6.49

$

In Stock, Qty 6

0

26

Husqvarna 819131316

Washer 13/32 X 13/16 X 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532145204

Rod Brake Parking LT

$

$

Not available

29

Husqvarna 532071673

Cap Brake Parking Black

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 532130807

Bracket Mtg Transaxle

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532127275

Keeper Belt LH LT 14 Ga

$

$

Not available

32

Husqvarna 874760512

Bolt Hex Hd 5/16-18unc X 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 873800500

Nut Hex W/Ins Lock 5/16-18

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532122424

Shaft Asm Pedal Foot 1 930

$

$

Not available

35

Husqvarna 532120183

Bearing Nylon Blk 629 Id

$6.49

$

In Stock, Qty 7

0

36

Husqvarna 819211616

Washer 21/32 X 1 X 16 Ga

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

Pin Roll 3/16 X 1"
(Superseded to 532002882)

$6.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532123674

Pulley Idler Flat

$31.99

$

In Stock, only 2 left!

0

39

Husqvarna 874760644

Bolt Fin Hex 3/8-16unc X 2-3/4

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532124965

Spacer Split 395 X 59 Bzp

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532109070

Keeper Belt Retainer

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 873800600

Nut Lock Hex W/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532105706

Bearing Nyl 503 X 628 X 1 25

$7.49

$

In Stock, only 1 left!

0

45

Husqvarna 532110812

Washer Hardened

$

$

Not available

46

Husqvarna 812000039

Ring Klip #t5304-50

$6.49

$

In Stock, Qty 12

0

47

Husqvarna 532127783

Pulley Idler V Groove Plastic
(Superseded to 532139245)

$34.99

$

In Stock, only 3 left!

0

48

Husqvarna 532123789

Bellcrank Asm Clutch

$

$

Not available

49

Husqvarna 532123205

Retainer Belt Style Spring

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

Bolt Hex Hd 3/8-16unc X 1-1/2
(Superseded to 874930624)

$

$

Not available

51

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 819131316

Washer 13/32 X 13/16 X 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

53

Husqvarna 532105710

Link Clutch 7 66
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

54

Husqvarna 876020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

55

Husqvarna 532105709

Spring Return Clutch 6 75

$10.99

$

In Stock, Qty 20+

0

56

Husqvarna 876020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

57

Husqvarna 532130801

V-Belt Ground Drive 95 25 42"
(Superseded to 532138255)

$36.99

$

In Stock, Qty 16

0

58

Husqvarna 532127274

Keeper Belt RH LT Pnt/zinc 16g

$4.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532140312

Keeper Belt Chassis Span Ctr
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

60

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

61

Husqvarna 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

62

Husqvarna 532124872

Cover Pedal Blk Round
(Superseded to 532008883)

$6.49

$

In Stock, Qty 16

0

63

Husqvarna 532140186

Engine Pulley

$93.99

$

Usually ships in 3-10 days

0

64

Husqvarna 871170764

Bolt Hex 7/16-20x4 Gr 5
(Superseded to 532173937)

$4.99

$

In Stock, Qty 11

0

65

Husqvarna 810040700

Washer Lock Hvy Hlcl Spr. 7/16
(Superseded to 539990247)

$

$

Not available

66

Husqvarna 532129921

Keeper Belt Engine LH LT

$

$

Not available

67

Husqvarna 874760616

Bolt Fin Hex 3/8-16unc X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

69

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532134683

Guide Belt Mower Drive RH

$

$

Not available

71

Husqvarna 874760616

Bolt Fin Hex 3/8-16unc X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

72

Husqvarna 819132012

Washer 13/32 X 1-1/4 X 12 Ga
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

73

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532109502

Spacer Axle

$

$

Not available

75

Husqvarna 532121749

Washer 25/32 X 1 1/4 X 16 Ga.

$3.49

$

In Stock, Qty 20+

0

76

Husqvarna 812000001

E-ring #5133-75

$4.99

$

In Stock, Qty 17

0

77

Husqvarna 532123583

Key Square 2 0 X 1845/ 1865

$4.99

$

In Stock, only 4 left!

0

78

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$3.49

$

In Stock, Qty 20+

0

80

UNKNOWN

$

$

Not available

81

UNKNOWN

$

$

Not available

82

UNKNOWN

$

$

Not available

83

UNKNOWN

$

$

Not available

84

UNKNOWN

$

$

Not available

85

UNKNOWN

$

$

Not available

86

UNKNOWN

$

$

Not available

87

UNKNOWN

$

$

Not available

88

UNKNOWN

$

$

Not available

89

UNKNOWN

$

$

Not available

90

UNKNOWN

$

$

Not available

95

Husqvarna 817490612

Screw Thdrol 3/8 - 16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

100

Husqvarna 819111216

Washer 11/32 x 314 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0
