LT 125 (H12538C) - Husqvarna Lawn Tractor (1991-06) Hardware (Electrical) Parts Diagram

Lawn Tractor

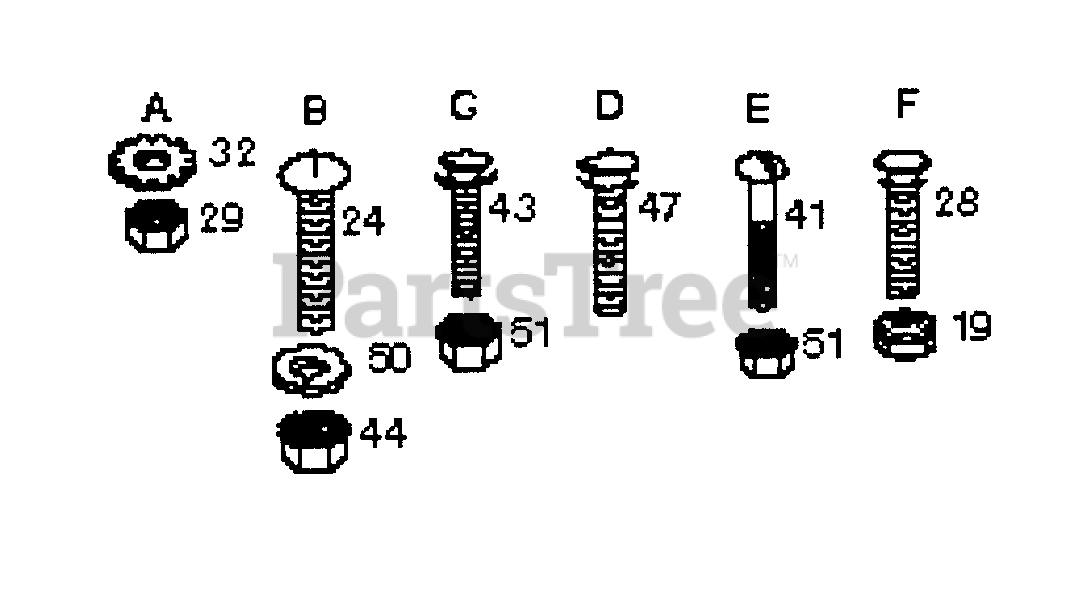

Hardware (Electrical) Parts Diagram

  • Title

19

Husqvarna 873680400

Nut, Hex 1/4 - 20
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 874780408

Screw 10/32 x 1/2 Pan Head UNF
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 874780408

Bolt, Hex 1/4 - 20 x 1/2 Gr. 5
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 873510400

Nut, Keps, Hex 1/4- 20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 811050400

Washer, Lock 1/4 - 20 Ext. Tooth
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

41

Husqvarna 874641008

Slotted Pan Head Screw #10-32

$2.99

$

Usually ships in 3-10 days

0

43

Husqvarna 871031008

Hex Washer Head Screw
(Superseded to 874641008)

$2.99

$

Usually ships in 3-10 days

0

44

Husqvarna 873350400

Nut, Keps #10-32 UNF
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

47

Husqvarna 817021008

Screw, Hex Tapping #10-24 x 1/2

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 810090400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

51

Husqvarna 873951000

Nut, Keps

$5.99

$

Usually ships in 3-10 days

0

Husqvarna 532121549

Decal, Battery, Caution

$

$

Not available

Husqvarna 532127227

Manual, Operators (English)

$

$

Not available

Husqvarna 532127694

Manual, Operator's (French)

$

$

Not available

Husqvarna 532127294

Manual, Parts (English)

$

$

Not available

Husqvarna 532127800

Manual, Parts (French)

$

$

Not available

Husqvarna 532101539

Sheet, Instruction, Tractor 15 Slope (English)

$

$

Not available

Husqvarna 532101572

Sheet, Instruction, Tractor 15 Slope (French)

$

$

Not available
