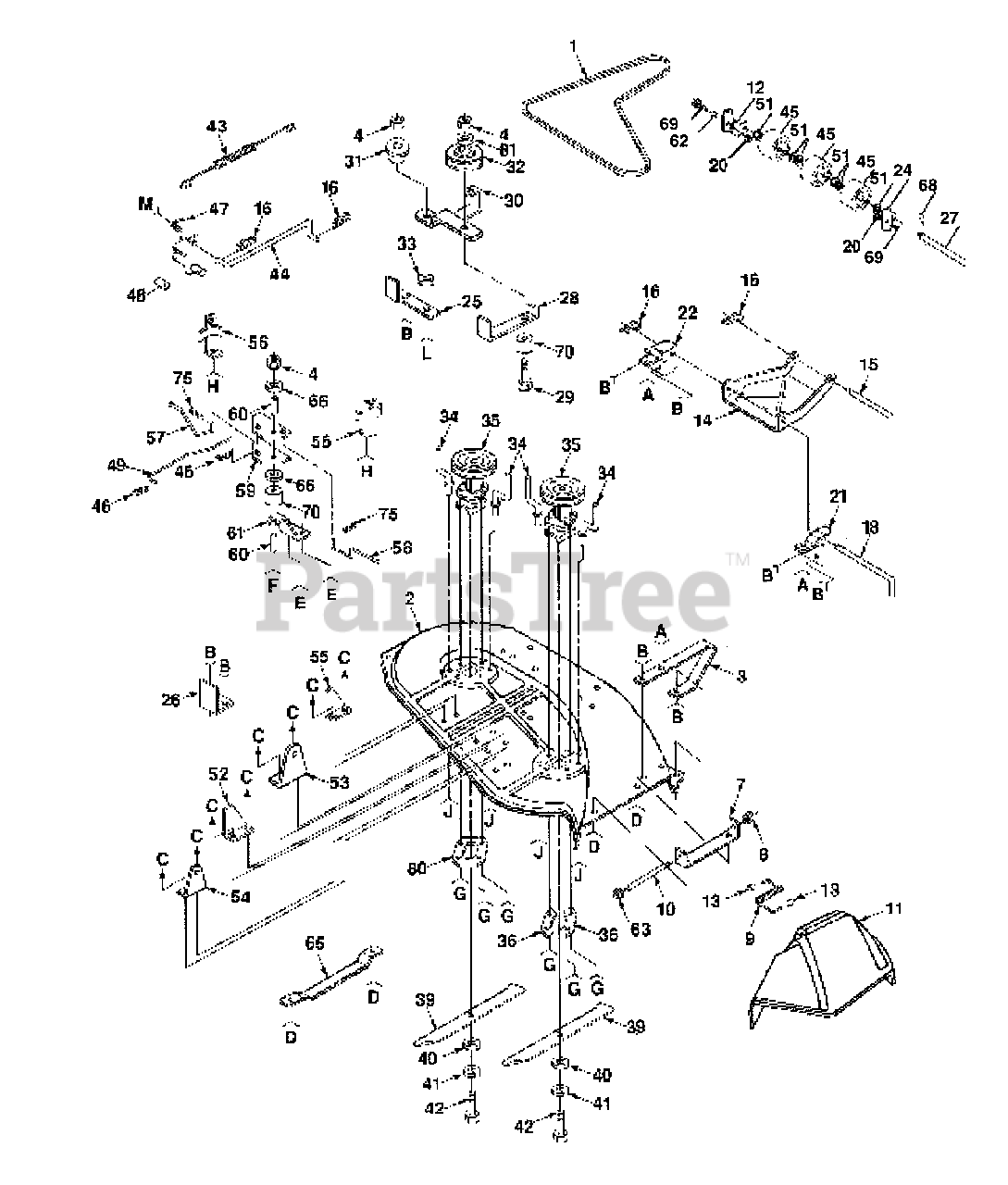

LT 125 (H12538C) - Husqvarna Lawn Tractor (1991-06) Mower Parts Diagram

Lawn Tractor

Mower Parts Diagram

  • Title

1

Husqvarna 532106085

V-Belt

$36.99

$

In Stock, only 1 left!

0

2

Husqvarna 532121259

Housing
(Superseded to 532144725)

$

$

Not available

3

Husqvarna 532124962

Runner R:H.
(Superseded to 532128772)

$

$

Not available

4

Husqvarna 873680600

Locknut 3/8 - 16

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532105896

Bracket, Deflector
(Superseded to 532137607)

$6.49

$

In Stock, only 4 left!

0

8

Husqvarna 532110452

Push Nut

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532106734

Spring, Deflector
(Superseded to 532123713)

$5.99

$

In Stock, Qty 9

0

10

Husqvarna 532106735

Rod, Hinge

$8.99

$

In Stock, only 1 left!

0

11

Husqvarna 532106736

Deflector, Shield

$

$

Not available

12

Husqvarna 532109646

Bracket, Nose Roller L.H.

$

$

Not available

13

Husqvarna 532105304

Cap

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532105662

Link, Parallel

$

$

Not available

15

Husqvarna 532105744

Pin, Hinge, Front

$

$

Not available

16

Husqvarna 532124961

Spring, Retainer
(Superseded to 532004921)

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 532109835

Pin, Hinge, Rear

$

$

Not available

20

Husqvarna 873680500

Locknut 5/16 - 18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532109598

Bracket, Lift R.H.

$

$

Not available

22

Husqvarna 532109597

Bracket, Lift L.H.

$

$

Not available

24

Husqvarna 532109647

Bracket, Nose Roller R.H

$

$

Not available

25

Husqvarna 532109503

Support, Arm

$

$

Not available

26

Husqvarna 532109504

Stop, Deck, Front

$

$

Not available

27

Husqvarna 532109776

Pin, Pivot

$8.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532126756

Guide, Belt

$

$

Not available

29

Husqvarna 874760632

Bolt 3/8 - 16 x 2
(Superseded to 874930632)

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532127163

Arm, Idler Assembly

$

$

Not available

31

Husqvarna 532106902

Spacer

$2.99

$

In Stock, only 2 left!

0

32

Husqvarna 532123688

Pulley, Idler
(Superseded to 532123674)

$31.99

$

In Stock, only 2 left!

0

33

Husqvarna 532106513

Washer, Wear 1/16

$3.99

$

In Stock, only 3 left!

0

34

Husqvarna 532102669

Keeper, Belt

$

$

Not available

35

Husqvarna 532121676

Mandrel, Assembly
(Superseded to 532121687)

$

$

Not available

36

Husqvarna 532100668

Plate, Support, Mandrel

$

$

Not available

39

Husqvarna 532121263

Blade
(Superseded to 532143978)

$24.99

$

Usually ships in 3-10 days

0

40

Husqvarna 819132012

Washer 13/32 x 1 - 1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 810030600

Washer, Lock 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 874610624

Bolt, Hex 3/8 - 24 x 1 -1/2 Gr. 5

$6.49

$

In Stock, only 1 left!

0

43

Husqvarna 532108250

Spring, Ext.

$

$

Not available

44

Husqvarna 532108235

Rod, Clutch, Mower

$

$

Not available

45

Husqvarna 532109729

Roller, Nose

$

$

Not available

46

Husqvarna 876020616

Pin, Cotter 3/16 x 1

$

$

Not available

47

Husqvarna 532124066

Assembly, Rock Shaft
(Superseded to 532109892)

$

$

Not available

48

Husqvarna 532124915

Spacer 1 /2 x 9/16

$

$

Not available

49

Husqvarna 532108247

Rod, Brake, Primary

$8.99

$

Usually ships in 3-10 days

0

51

Husqvarna 819151610

Washer 15/32 x 1 x 10 Ga.
(Superseded to 734117801)

$

$

Not available

52

Husqvarna 532108243

Bracket, Pivot R .H.

$

$

Not available

53

Husqvarna 532108241

Bracket, Pivot L.H.

$

$

Not available

54

Husqvarna 532105857

Bracket, Susp., Rear R.H.

$

$

Not available

55

Husqvarna 532108673

Bracket, Susp., Rear L.H.

$

$

Not available

56

Husqvarna 532106578

Brake Assembly

$46.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532106463

Rod, Brake, Secondary L.H.

$

$

Not available

58

Husqvarna 532108249

Rod, Brake, Secondary R.H.

$30.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532106456

Bracket, Brake, Pivot

$

$

Not available

60

Husqvarna 532100672

Spacer, Brake

$

$

Not available

61

Husqvarna 532100673

Bracket, Support

$

$

Not available

62

Husqvarna 819161616

Washer 1/2 x 1 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

63

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$0.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532125074

Runner L.H.
(Superseded to 532007631)

$18.99

$

In Stock, only 4 left!

0

66

Husqvarna 819131614

Washer 13/32 x 1 x 14 Ga
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

69

Husqvarna 874760512

Bolt, Hex Hd. 5/16 - 18 UNC x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

70

Husqvarna 532122314

Spacer

$

$

Not available

75

Husqvarna 876020308

Pin, Cotter 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

80

Husqvarna 532110445

Plate, Support L.H

$10.99

$

Usually ships in 3-10 days

0

81

Husqvarna 819131316

Washer, 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 532123928

Mower Deck, Complete

$

$

Not available

Husqvarna 532105814

Decal, V-Belt Mower Drive

$

$

Not available

Husqvarna 532121349

Decal, Danger Warning

$2.99

$

Usually ships in 3-10 days

0

Husqvarna 532109820

Decal, Instruction Caution

$

$

Not available
