LT 125 (H12538C) - Husqvarna Lawn Tractor (1991-06) Transaxle And Rear Wheel Parts Diagram

Lawn Tractor

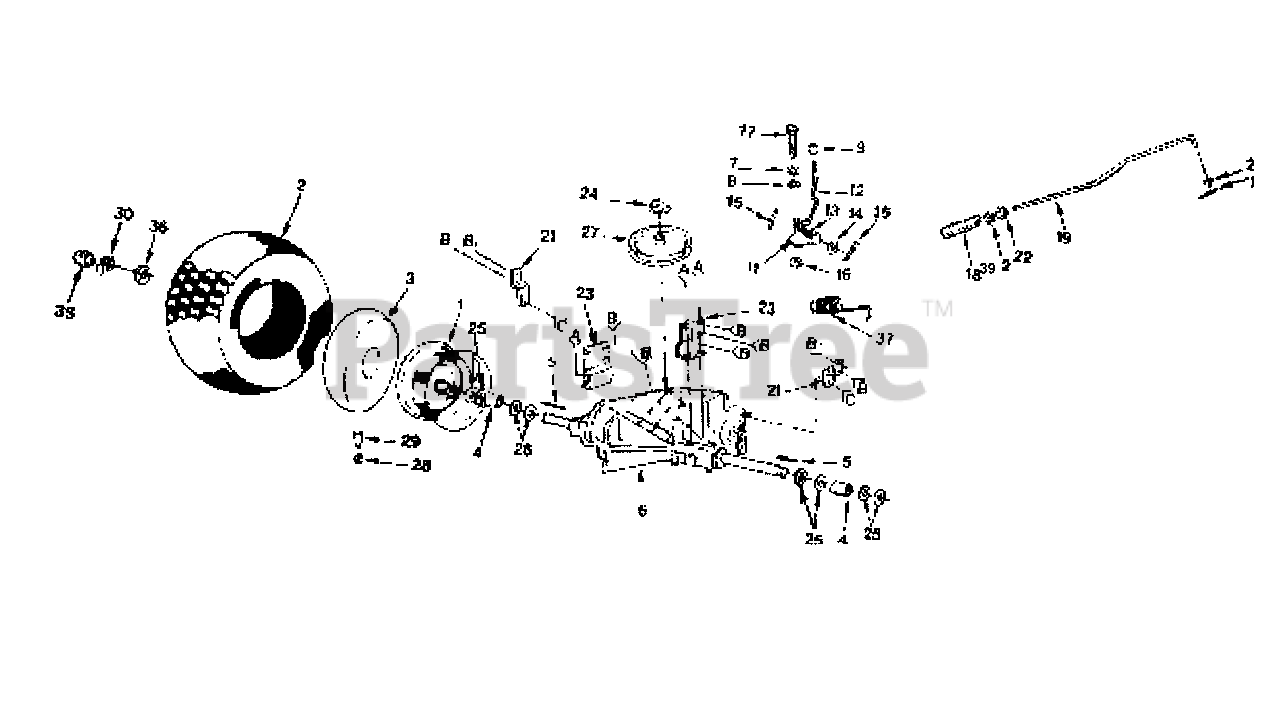

Transaxle And Rear Wheel Parts Diagram

  • Title

1

Husqvarna 532124999

Rim Assembly
(Superseded to 532106108)

$145.99

$

In Stock, only 1 left!

0

2

Husqvarna 532106268

Tire
(Superseded to 532420531)

$120.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532124926

Tube, Tire
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532109502

Spacer, Split

$

$

Not available

5

Husqvarna 532123583

Key, Square 3/16 x 2

$4.99

$

In Stock, only 4 left!

0

6

Husqvarna 532120898

Transaxle 6 Speed

$

$

Not available

7

Husqvarna 810040400

Washer, Lock 1 /4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

8

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532121274

Knob, Control

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 876020412

Cotter Pin 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

11

Husqvarna 532106919

Plate, Rod, Shift

$

$

Not available

12

Husqvarna 532121728

Rod, Shifter

$12.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532105700

Spring, Torsion

$

$

Not available

14

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Ga.

$

$

Not available

15

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532105701

Washer, Shift Plate

$6.49

$

In Stock, only 1 left!

0

17

Husqvarna 871040412

Bolt, Hex 1/4-28 x 3/4 Gr. 8

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532106888

Spring, Rod, Brake
(Superseded to 532151332)

$6.49

$

In Stock, Qty 6

0

19

Husqvarna 532110437

Rod, Brake
(Superseded to 532131867)

$

$

Not available

20

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532121520

Strap, Torque

$7.49

$

In Stock, only 3 left!

0

22

Husqvarna 873350600

Nut, Hex Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

23

Husqvarna 532109167

Bracket, Transaxle

$

$

Not available

24

Husqvarna 812000028

Ring, Retainer

$7.49

$

In Stock, Qty 13

0

25

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532123666

Pulley, Input Transaxle

$37.99

$

In Stock, only 3 left!

0

28

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, only 1 left!

0

29

Husqvarna 532065139

Stem, Valve

$10.99

$

In Stock, Qty 20+

0

30

Husqvarna 812000001

E-Ring

$4.99

$

In Stock, Qty 16

0

35

Husqvarna 532104757

Cap, Axle

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 532110422

Spring, Brake Return
(Superseded to 532146682)

$8.99

$

In Stock, only 1 left!

0

39

Husqvarna 873800600

Locknut, Hex W/Wsh. 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0
