LT 125 (HVLT125AE) - Husqvarna Lawn Tractor (1990-01) Drive Group Parts Diagram

Lawn Tractor

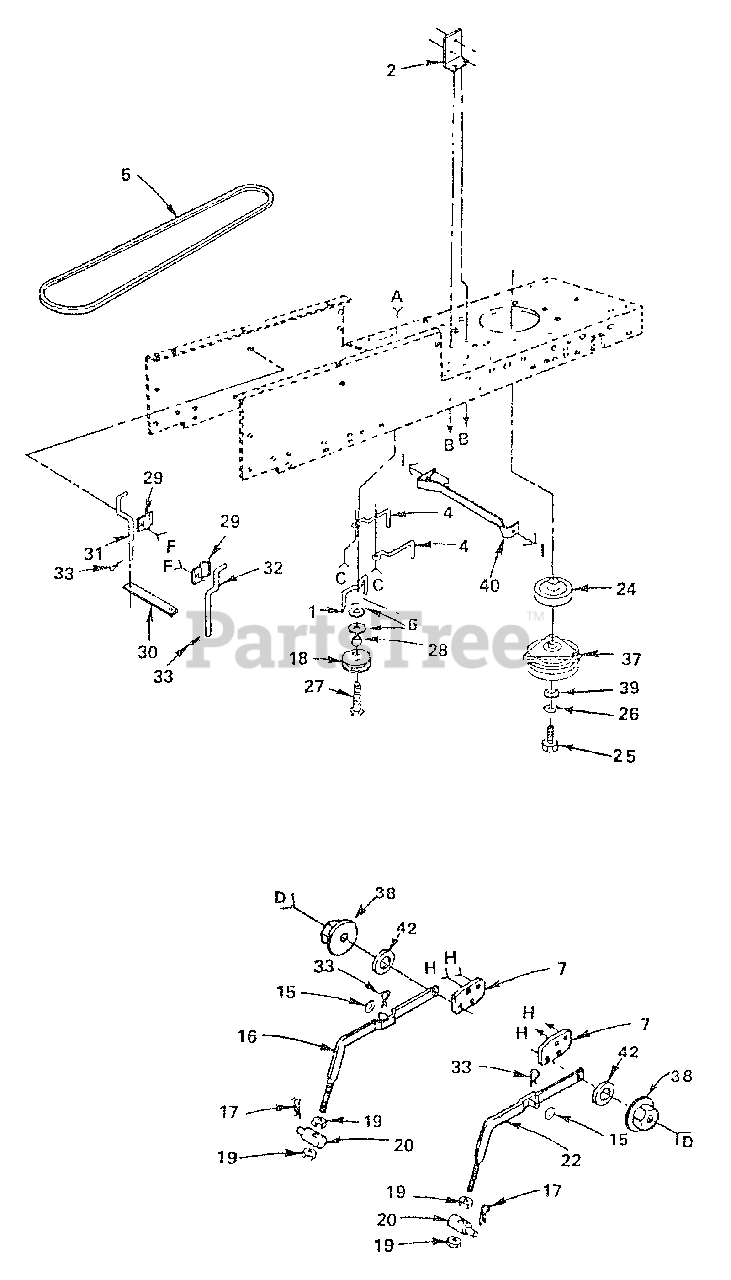

Drive Group Parts Diagram

  • Title

1

Husqvarna 532109070

Retainer Belt

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532108236

Bracket- Switch

$2.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532105730

Keeper- Belt, Engine

$4.99

$

Usually ships in 3-10 days

0

4a

Husqvarna 532121218

Keeper- Belt, Engine

$

$

Not available

5

Husqvarna 532125907

V-Belt, Drive

$36.99

$

In Stock, Qty 20+

0

6

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 532105864

Bracket - Suspension

$

$

Not available

15

Husqvarna 819171516

Washer 17/32 x 15/16 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

16

Husqvarna 532121599

Arm Assembly - Suspension, L.H.

$

$

Not available

17

Husqvarna 532009135

Retainer - Spring

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532123674

Idler - Flat

$31.99

$

In Stock, only 2 left!

0

19

Husqvarna 873220800

Nut - Hex 1/2-13
(Superseded to 873350800)

$

$

Not available

20

Husqvarna 532106308

Trunnion - Lift, Lower
(Superseded to 532175689)

$

$

Not available

22

Husqvarna 532121598

Arm Assembly - Suspension, R.H.

$

$

Not available

24

Husqvarna 532109841

Pulley- Engine
(Superseded to 532140189)

$42.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532125005

Bolt - Hex 7/16-20 x 4
(Superseded to 747810100)

$

$

Not available

26

Husqvarna 810040700

Washer- Lock 7/16
(Superseded to 539990247)

$

$

Not available

27

Husqvarna 874760644

Bolt - Hex 3/8-16 x 2 - 3/4

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532004470

Spacer
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532106190

Clamp

$

$

Not available

30

Husqvarna 532123770

Strap - Locator

$

$

Not available

31

Husqvarna 532123662

Keeper - Belt, L. H.

$

$

Not available

32

Husqvarna 532123663

Keeper - Belt, R. H.

$

$

Not available

33

Husqvarna 532004921

Spring - Retainer

$6.49

$

In Stock, only 1 left!

0

37

Husqvarna 532108218

Clutch - Electric
(Superseded to 532142600)

$

$

Not available

38

Husqvarna 873980600

Centerlock Flange Nut - 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532126197

Washer - 15/32 x 1-3/8 x 1/4

$8.99

$

In Stock, Qty 20+

0

40

Husqvarna 532109169

Locator - Clutch
(Superseded to 532109172)

$

$

Not available

41

Husqvarna 819382616

Washer

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532110739

Spring Washer

$4.99

$

Usually ships in 3-10 days

0
