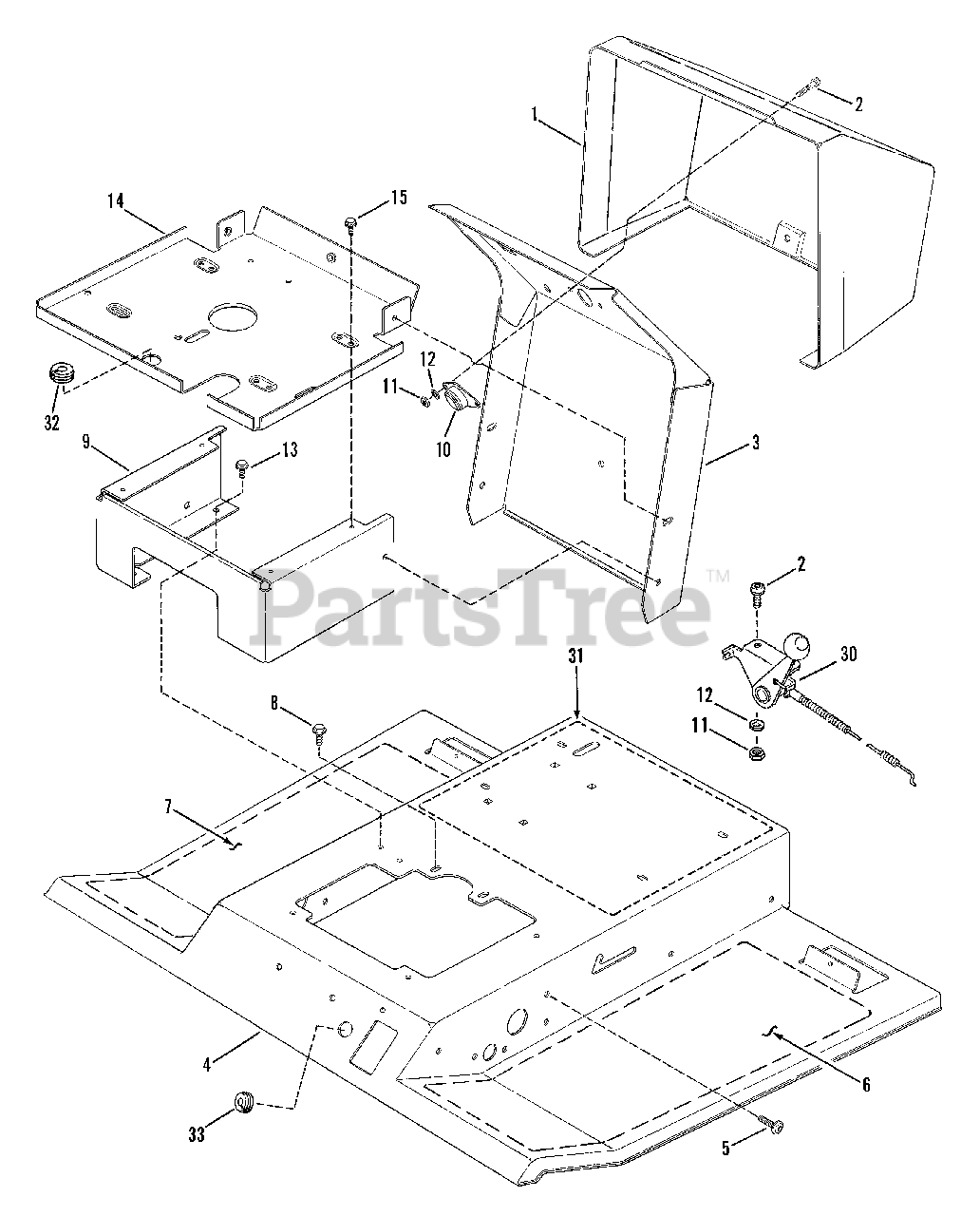

LT 12D330B (82899) - Snapper 33" Lawn Tractor, 12hp Dash Panel, Fuel Tank, Battery (Part 1) Parts Diagram

33" Lawn Tractor, 12hp

Dash Panel, Fuel Tank, Battery (Part 1) Parts Diagram

  • Title

1

Snapper 7052685

PANEL, Dash
(Superseded to 7052685YP)

Note: Was 57557

$108.99

$

Usually ships in 2-12 days

0

2

Snapper 7090996

SCREW, 1/4-20x1" Phillips

$2.99

$

In Stock, only 3 left!

0

3

Snapper 7033172

SUPPORT, Steering Shaft

Note: Was 35137

$

$

Currently unavailable

4

Snapper 7051915

CHANNEL, Foot Rest
(Superseded to 7051915YP)

Note: (Includes Decal, item 31)

$398.99

$

Usually ships in 2-12 days

0

5

Snapper 7091000

SCREW, 5/16-18x7/8" Torx, S.T.
(Superseded to 1960086SM)

Note: Was 91001

$4.99

$

In Stock, Qty 5

0

6

Snapper 7019047

TREAD, Left Side (Non-Skid)

$

$

Not available

7

Snapper 7019046

TREAD, Right Side (Non-Skid)
(Superseded to 7019046YP)

$14.99

$

In Stock, only 1 left!

0

8

Snapper 7090361

SCREW, 5/16-18x5/8" H.C.S.T.
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

9

Snapper 7033073

MOUNT, Fuel Tank/Battery
(Superseded to 7033073YP)

$60.99

$

Usually ships in 2-12 days

0

10

Snapper 7026196

FLANGE ASSM'Y., Steering Shaft
(Superseded to 7026196SM)

Note: Was 23173

$7.49

$

In Stock, Qty 12

0

11

Snapper 7076978

NUT, 1/4-20 Hex Lock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 13

0

13

Snapper 7090858

SCREW, 5/16-18x1/2" Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, Qty 10

0

14

Snapper 7033078

PLATE, Fuel Tank & Battery Mount

Note: Was 35139

$

$

Not available

15

Snapper 7091122

SCREW, 1/4-20x1/2" H.C.S.T.
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7016824

CONTROL, Throttle
(Superseded to 7016824YP)

Note: Was 19037

$50.99

$

In Stock, only 1 left!

0

31

Snapper 7017026

DECAL, Caution & Instruction

$

$

Not available

32

Snapper 7023166

GROMMET, 11/16 I.D.x1-5/16" O.D. Split

$

$

Currently unavailable

33

Snapper 7014856

GROMMET, 5/16 I.D.x1" O.D. Split

$

$

Not available
