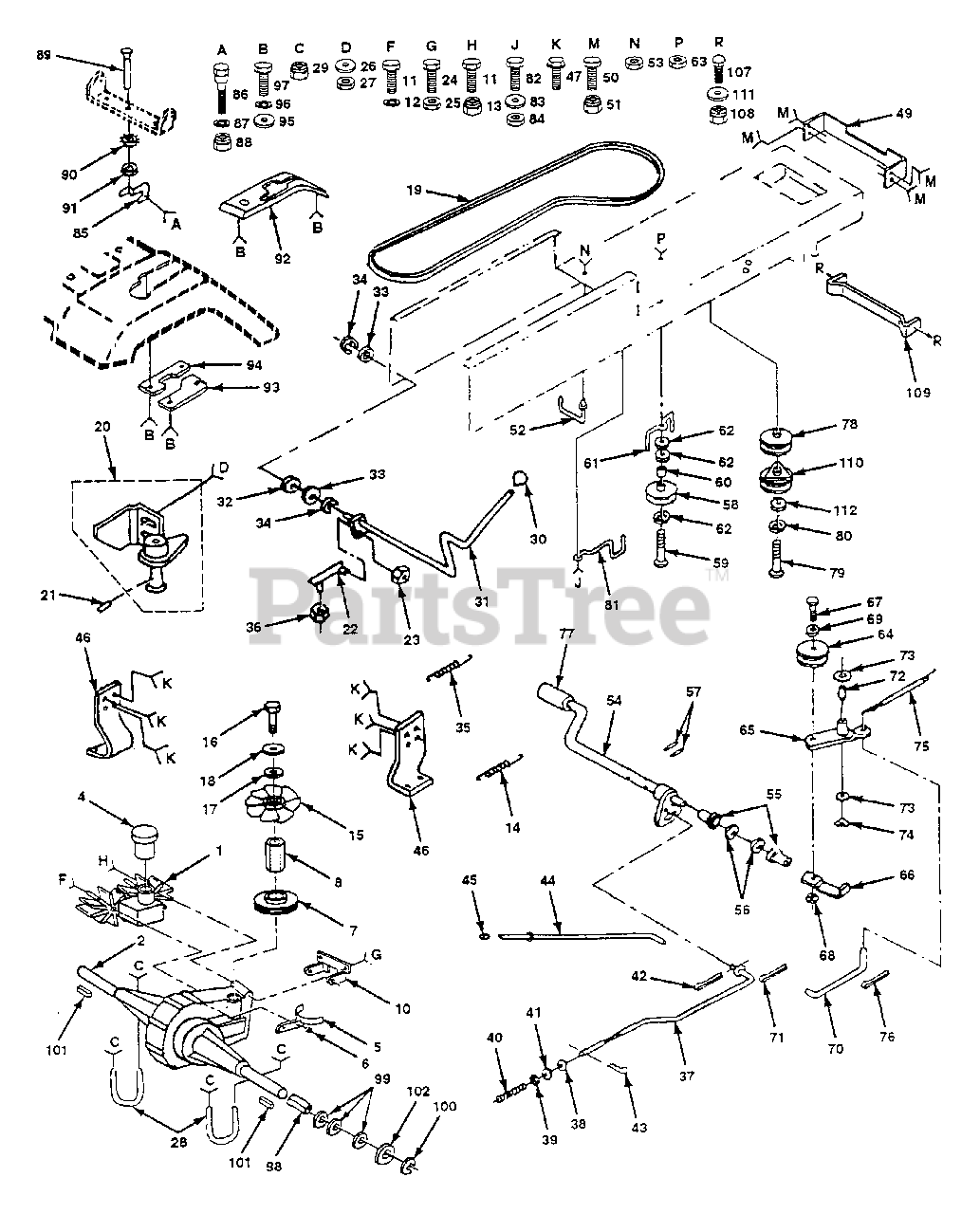

LT 140 (954000512-A) - Husqvarna Lawn Tractor (1993-01) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Husqvarna 532121430

Sunstrand Pump, Hydro

$

$

Not available

2

Husqvarna 532121431

Transaxle Assembly.

$

$

Not available

4

Husqvarna 532121323

Resevoir, Transaxle Pump
(Superseded to 506774701)

$

$

Not available

5

Husqvarna 532126581

Belt Keeper, Transaxle

$

$

Not available

6

Husqvarna 873680400

Nut, Crownlock 1/4-20 Unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532126579

Transaxle Pulley

$

$

Not available

8

Husqvarna 532121211

Spacer, Stand-off, Transaxle Fan

$

$

Not available

10

Husqvarna 532121188

Bracket, Differential Mounting

$

$

Not available

11

Husqvarna 874780572

Bolt, Hex 5/16-18uncx4 5 Gr. 5
(Superseded to 874780580)

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

13

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532110422

Spring Return Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

15

Husqvarna 532126578

Fan, Transaxle Hydro 7"

$

$

Not available

16

Husqvarna 874780412

Bolt, Hex 1/4-20unc X 75
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 819092016

Washer 9/32 X 1-1/4 X 16 Ga

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 810040400

Washer, Lock, Hlcl 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

19

Husqvarna 532137589

V-Belt, Ground Drive

$

$

Not available

20

Husqvarna 532126912

Friction Pack Assembly

$

$

Not available

21

Husqvarna 532126655

Pin, Roll 198 X 866

$

$

Not available

22

Husqvarna 532137328

Rod, Tie Hydro Stretch

$

$

Not available

23

Husqvarna 873040400

Nut, Hex, Flange 1/4-28 Unf

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874760612

Bolt, Hex 3/8-16unc X 3/4

$4.99

$

In Stock, Qty 14

0

25

Husqvarna 873680600

Nut, Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 819131216

Washer 13/32 X 3/4 X 16 Ja

$

$

Not available

27

Husqvarna 873680600

Nut. Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532121189

U-Bolt 3/8-16 X 2 83

$

$

Not available

29

Husqvarna 873680600

Nut, Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532121274

Knob 1/2-13

$8.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532126592

Control Lever Assembly

$

$

Not available

32

Husqvarna 532126590

Bushing, Transaxle

$

$

Not available

33

Husqvarna 532126591

Washer, Shim .53 X 1 25 X .0598

$

$

Not available

34

Husqvarna 812000003

E-Ring

$

$

Not available

35

Husqvarna 532126910

Spring Extension

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 873040400

Nut, Hex, Flange 1/4-28 Unf

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532137630

Rod, Brake

$

$

Not available

38

Husqvarna 873800600

Locknut 3/8-16unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 873350600

Nut, Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

40

Husqvarna 532106888

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, Qty 6

0

41

Husqvarna 819131316

Washer 13/32 X 13/16 X 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 532124961

Retainer Spring
(Superseded to 532004921)

$6.49

$

In Stock, only 1 left!

0

43

Husqvarna 532124788

Retainer Spring
(Superseded to 532004497)

$10.99

$

In Stock, Qty 19

0

44

Husqvarna 532133261

Rod, Parking Brake

$

$

Not available

45

Husqvarna 532071673

Cap, Parking Brake

$4.99

$

In Stock, only 1 left!

0

46

Husqvarna 532136922

Bracket, Transaxle

$

$

Not available

47

Husqvarna 817490616

Screw, Thd., Roll. 3/8-16 X 1 Ty-tt
(Superseded to 817000616)

$7.49

$

In Stock, Qty 10

0

49

Husqvarna 532138307

Bracket, Mounting

$

$

Not available

50

Husqvarna 872110606

Bolt, Carriage 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873680600

Nut, Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532126577

Keeper, Center Span

$

$

Not available

53

Husqvarna 873680600

Nut, Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532122424

Shaft, Foot Pedal

$

$

Not available

55

Husqvarna 532120183

Bearing, Nylon

$6.49

$

In Stock, only 4 left!

0

56

Husqvarna 819211616

Washer 21/32 X 1 X 16 Ga

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532124963

Pin Roll 3/16 X 1
(Superseded to 532002882)

$6.99

$

In Stock, Qty 5

0

58

Husqvarna 532123674

Pulley, Idler, Flat

$31.99

$

In Stock, only 2 left!

0

59

Husqvarna 874760644

Bolt, Hex 3/8-16unc X 2-3/4

$6.49

$

Usually ships in 3-10 days

0

60

Husqvarna 532124965

Spacer, Split

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532109070

Keeper, Belt Retainer

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

63

Husqvarna 873680600

Nut, Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532127783

Pulley, Idler, V-Groove
(Superseded to 532139245)

$34.99

$

In Stock, Qty 6

0

65

Husqvarna 532123789

Bellcrank Assembly

$

$

Not available

66

Husqvarna 532123205

Retainer Belt

$6.49

$

Usually ships in 3-10 days

0

67

Husqvarna 874760624

Bolt, Hex 3/8-16unc X 1-1/2
(Superseded to 874930624)

$

$

Not available

68

Husqvarna 873680600

Nut, Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

69

Husqvarna 819131316

Washer 13/32 X 13/16 X 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

70

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

71

Husqvarna 876020412

Cotter Pin 1/8 X 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

72

Husqvarna 532105706

Nylon Bearing

$7.49

$

In Stock, only 1 left!

0

73

Husqvarna 532110812

Washer, Hardened

$

$

Not available

74

Husqvarna 812000039

Ring, Klip #t5304-50

$6.49

$

In Stock, Qty 12

0

75

Husqvarna 532105709

Spring, Return, Clutch

$10.99

$

In Stock, Qty 8

0

76

Husqvarna 876020412

Cotter Pin 1/8 X 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

77

Husqvarna 532123533

Cover Pedal

$6.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532136905

Pulley, Engine
(Superseded to 532140189)

$42.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532125120

Bolt, Hex M10-1.5 x 110
(Superseded to 747810110)

$

$

Not available

80

Husqvarna 810040700

Washer, Lock, Hlcl 7/16
(Superseded to 539990247)

$

$

Not available

81

Husqvarna 532129921

Keeper, Belt, Engine, LH

$

$

Not available

82

Husqvarna 874760616

Bolt, Hex 3/8-16unc X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

83

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

84

Husqvarna 873680600

Nut, Crownlock 3/8-16 Un

$3.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532126575

Arm, Control

$

$

Not available

86

Husqvarna 532124815

Bolt, Shoulder 1/4 X 20 Unc
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

87

Husqvarna 532110739

Washer, Spring, Oiled

$4.99

$

Usually ships in 3-10 days

0

88

Husqvarna 873680400

Nut, Crownlock 1/4-20 Unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

89

Husqvarna 532133836

Control, Bypass

$

$

Not available

90

Husqvarna 811050600

Washer, Lock, Ext. Teeth 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

91

Husqvarna 873610600

Nut, Hex, Fin. 3/8-24 Unf
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

92

Husqvarna 532126600

Console. Shift

$

$

Not available

93

Husqvarna 532126597

Plate, Neutral Adjust, RH

$

$

Not available

94

Husqvarna 532126598

Plate, Neutral Adjust, LH

$

$

Not available

95

Husqvarna 819091216

Washer 9/32 X 3/4 X 16 Ga

$

$

Not available

96

Husqvarna 810040400

Washer, Lock, Hlcl 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

97

Husqvarna 874760408

Bolt, Hex 1/4-20unc X 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532121199

Spacer, Split

$

$

Not available

99

Husqvarna 532121749

Washer 25/32 X 1 1 /4 X 16 Ga

$3.49

$

In Stock, Qty 20+

0

100

Husqvarna 812000001

E-Ring #5133-75

$4.99

$

In Stock, only 3 left!

0

101

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, Qty 6

0

102

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga.

$3.49

$

In Stock, Qty 20+

0

107

Husqvarna 872140506

Bolt Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

108

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

109

Husqvarna 532137141

Bracket, Asm. Clutch

$

$

Not available

110

Husqvarna 532137140

Clutch Electric
(Superseded to 532142600)

$

$

Not available

111

Husqvarna 819111012

Washer 11/32 x 5/8 x 12 Ga.

$6.49

$

Usually ships in 3-10 days

0

112

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$8.99

$

In Stock, Qty 18

0
