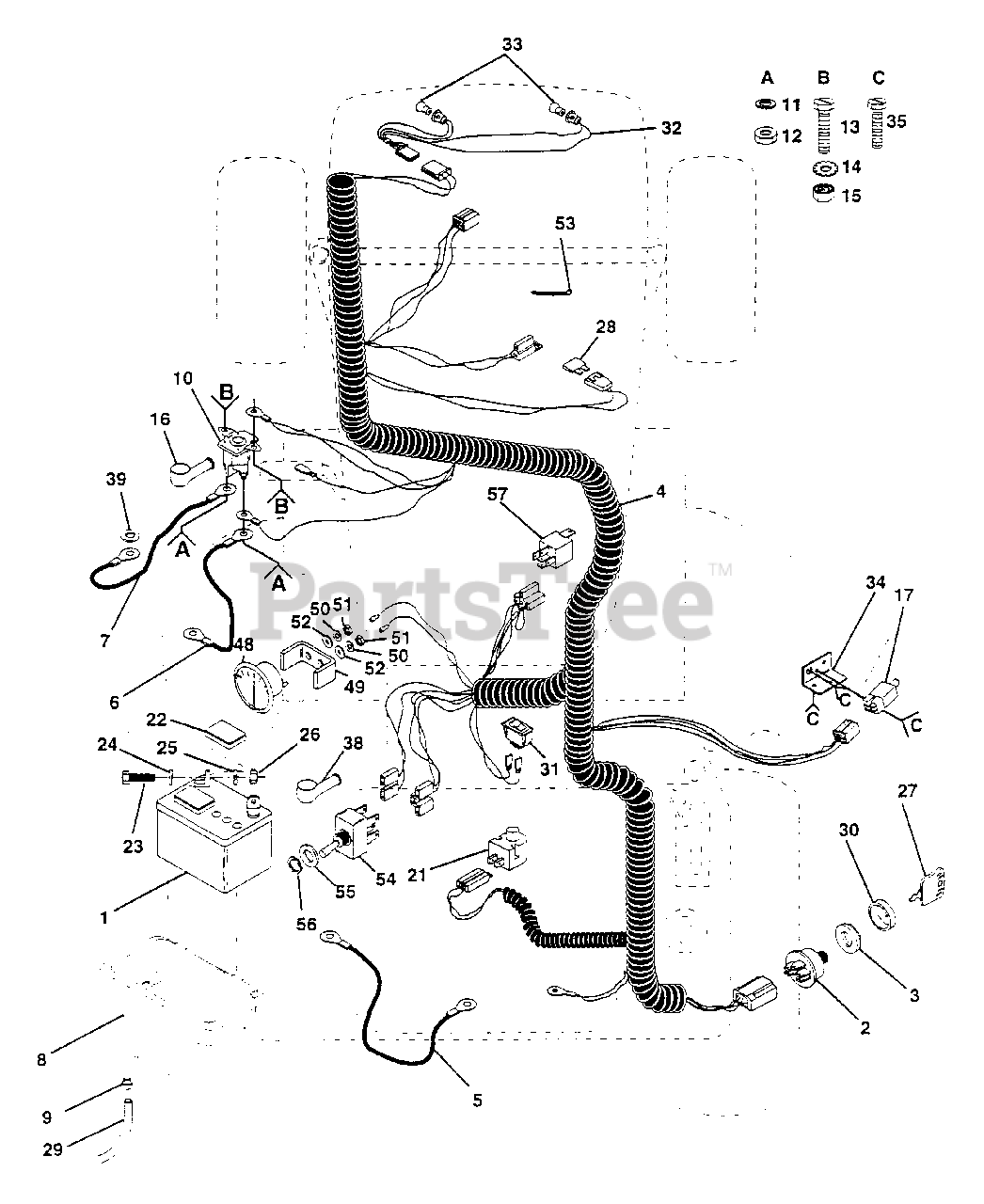

LT 140 (954000512-A) - Husqvarna Lawn Tractor (1993-01) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532121537

Battery 12 Volt 30 Amp
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532102972

Switch Ign 5 Term Wo/wash/nut
(Superseded to 532158913)

$67.99

$

In Stock, only 1 left!

0

3

Husqvarna 532124211

Nut Ignition

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532138982

Harness Ign Kohl Fend HI Amm

$

$

Not available

5

Husqvarna 532124773

Cable Ground 6ga 12"black
(Superseded to 532420700)

$8.99

$

In Stock, only 1 left!

0

6

Husqvarna 532124964

Cable Battery 6ga 39" Red
(Superseded to 532005114)

$

$

Not available

7

Husqvarna 532124770

Cable Battery 6ga 22" red
(Superseded to 532185464)

$11.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532133753

Case Battery w/o Lid

$

$

Not available

9

Husqvarna 532109596

Clamp Hose Olive

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532138406

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

11

Husqvarna 810090400

Washer Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

12

Husqvarna 873350400

Nut Jam Hex 1/4-20 Unc
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

13

Husqvarna 874780408

Bolt Fin Hex 1/4-20uncx1/2 Gr5
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 811050400

Washer Lock Ext Tooth 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

15

Husqvarna 873510400

Nut Keps Hex lid-20 Unc
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532109553

Switch Interlock Clutch
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 532121305

Switch Plunger Nc Gray
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

22

Husqvarna 532121264

Caps Battery 20/25/30 Amp

$

$

Not available

23

Husqvarna 874760412

Bolt Hex Hd 1/4-20unc X 3/4

$7.49

$

In Stock, Qty 5

0

24

Husqvarna 819091016

Washer 9/32 X 5/8 X 16 Ga

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

26

Husqvarna 873220400

Nut Fin Hex 1/4-20 Unc
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

27

Husqvarna 532122147

Key Ign Molded Generic

$

$

Not available

28

Husqvarna 532108824

Fuse 30 Amp Auto Green

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532109238

Tube Plastic 12"

$

$

Not available

30

Husqvarna 532123620

Cover Sw Key Blk 1 25 Text Sit
(Superseded to 532141226)

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532110712

Switch Light Blk Blk Red

$8.99

$

In Stock, Qty 10

0

32

Husqvarna 532136850

Harness Socket Light

$

$

Not available

33

Husqvarna 532124893

Bulb, Light r 1141
(Superseded to 532007662)

$4.99

$

In Stock, Qty 15

0

34

Husqvarna 532108236

Bracket Switch Clutch

$2.99

$

Usually ships in 3-10 days

0

35

Husqvarna 817021008

Screw Hex Tapping # 10-24 X 1/2

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532124783

Cover, Terminal
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

39

Husqvarna 811150400

Washer. Lock Int. Tooth 1/4

$2.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532124900

Ammeter Round 15 Amp

$37.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532131708

Bracket Ammeter 2 242 X 1 180

$

$

Not available

50

Husqvarna 810101000

Washer Lock
(Superseded to 810071000)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 873911000

Nut

$0.99

$

Usually ships in 3-10 days

0

52

Husqvarna 819070818

Washer 7/32 X 1/2 X 18 Ga

$9.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532124756

Tie Cable
(Superseded to 532007192)

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532126016

Switch PTO
(Superseded to 532004021)

$

$

Not available

55

Husqvarna 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

56

Husqvarna 532124932

Nut Hex 1/2-28 Unf
(Superseded to 532004022)

$

$

Not available

57

Husqvarna 532109748

Relay Assembly

$34.99

$

In Stock, only 1 left!

0
