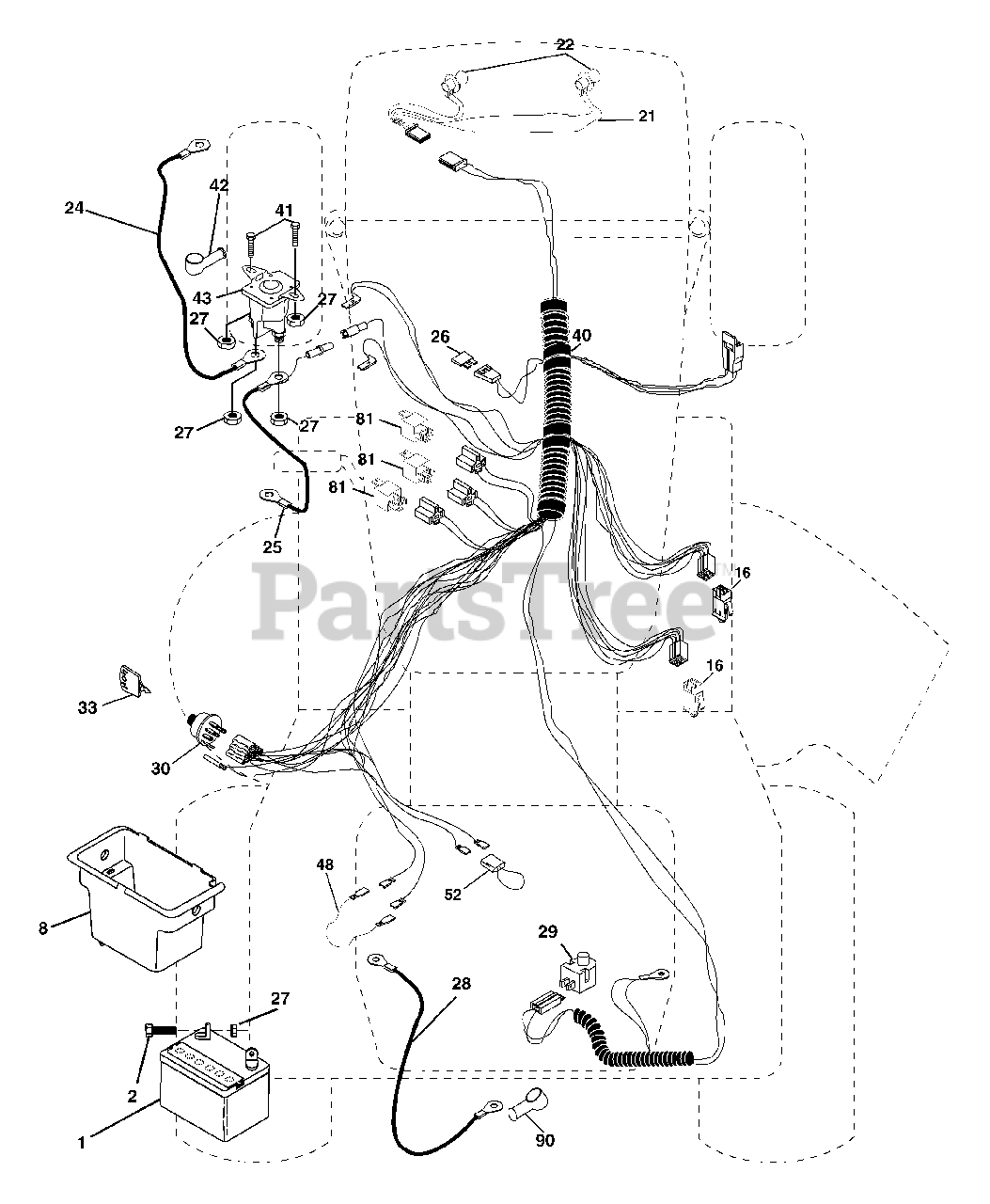

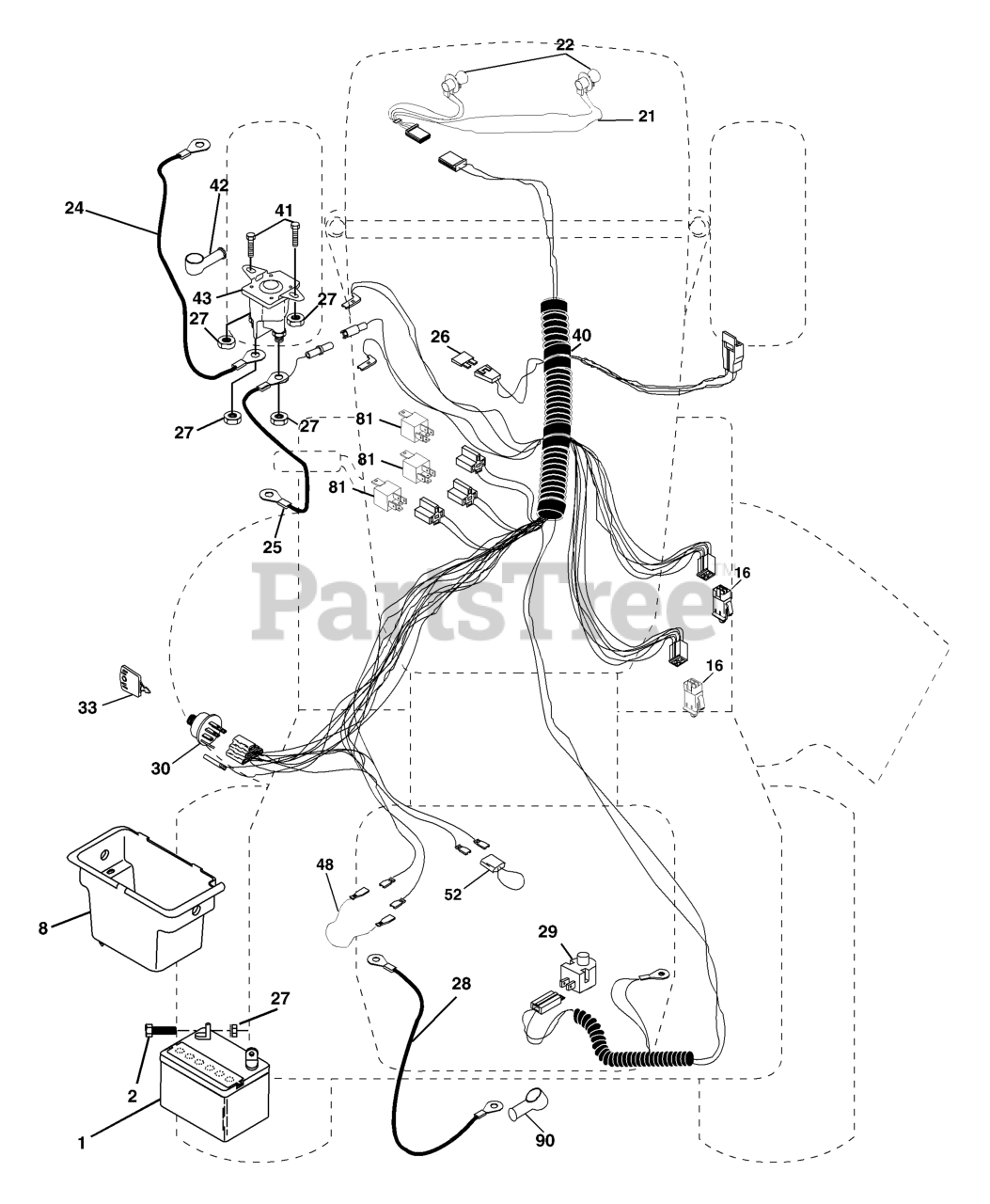

LT 1538 (954569776-A) - Husqvarna Lawn Tractor (2002-11) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532163465

Battery 12 Volt 28 AMP
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20unc X 3/4

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532176689

Battery Box

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532176137

Switch Interlock Push-In

$24.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532175688

Harness Asm Light W/4152j

$44.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

Bulb Light #1156

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532124780

Cable Battery 6 Ga 11" red
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146147

Cable Battery 6 Ga 44" red w/16 wire

$34.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532175158

Fuse 20 AMP

$7.49

$

In Stock, Qty 11

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532124773

Cable Ground 6 Ga 12" black
(Superseded to 532420700)

$8.99

$

In Stock, only 1 left!

0

29

Husqvarna 532160784

Switch Plunger

$18.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532175566

Switch Ign

$12.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140401

Key Ign

$6.49

$

In Stock, Qty 20+

0

40

Husqvarna 532179722

Harness Ign.

$218.99

$

Usually ships in 3-10 days

0

41

Husqvarna 871110408

Bolt Blk Fin Hex 1/4 - 20 x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532178861

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

48

Husqvarna 532140844

Adapter Ammeter

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532141940

Protection Wire Loop

$7.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532109748

Relay Asm.

$34.99

$

In Stock, only 1 left!

0

90

Husqvarna 532180449

Cover Terminal
(Superseded to 532435395)

$6.49

$

Usually ships in 3-10 days
