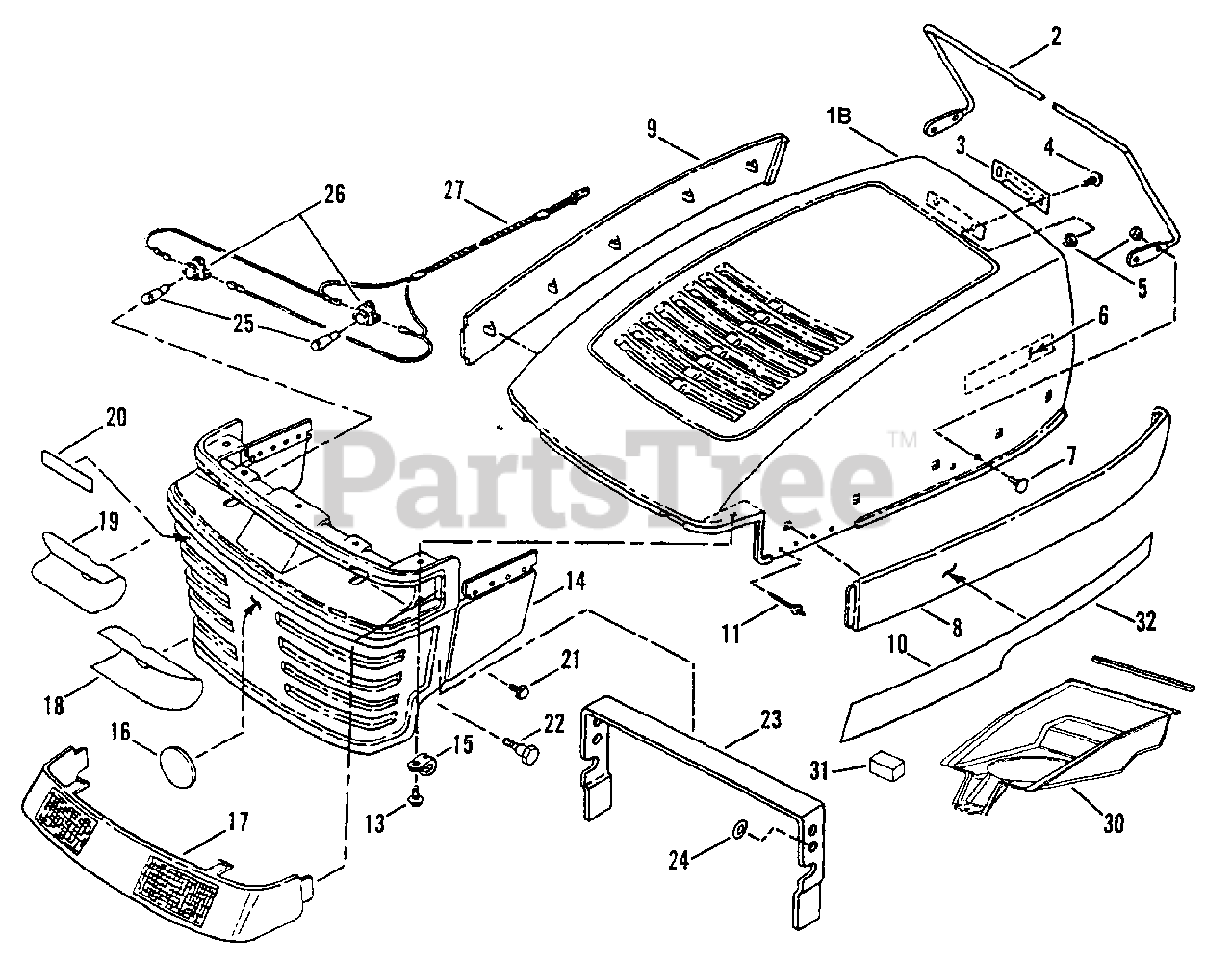

LT 160H42CBV (80842) - Snapper 42" Lawn Tractor, 16hp Hood, Bumper, Headlights & Components Parts Diagram

42" Lawn Tractor, 16hp

Hood, Bumper, Headlights & Components Parts Diagram

  • Title

1B

Snapper 7024471

HOOD, Mozart
(Superseded to 7063298YP)

Note: (Model LT160H42CBV)

$1036.99

$

Usually ships in 2-12 days

0

1B

Snapper 7063298

HOOD, Mozart w/Scoop (Not shown)
(Superseded to 7063298YP)

Note: Was 26406 or 61383 (Model LT160H42CBV2)

$1036.99

$

Usually ships in 2-12 days

0

2

Snapper 7016766

ROD, Hood Support
(Superseded to 7016766YP)

$15.99

$

Usually ships in 2-12 days

0

3

Snapper 7024718

LATCH, Spring
(Superseded to 7024718YP)

$23.99

$

Usually ships in 2-12 days

0

4

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head, Torx
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7024980

DECAL - SNAPPER, 8" Molded Logo, Silver Letters

Note: Was 16974 or 36438

$

$

Not available

7

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7029572

PANEL, Hood (Left Hand) (Black)

$

$

Currently unavailable

9

Snapper 7029571

PANEL, Hood (Right Hand) (Black)

$

$

Currently unavailable

10

Snapper 7028636

DECAL, Hood (Right Hand)

Note: (Model LT145H38CBV)

$

$

Not available

10

Snapper 7028637

DECAL, Hood (Left Hand)
(Superseded to 7028637YP)

Note: (Model LT145H38CBV)

$6.99

$

Usually ships in 2-12 days

0

10

Snapper 7029020

DECAL, Hood (Right Hand)
(Superseded to 7029020YP)

Note: (Model LT160H42CBV)

$6.49

$

In Stock, only 1 left!

0

10

Snapper 7029019

DECAL, Hood (Left Hand)
(Superseded to 7029019YP)

Note: (Model LT160H42CBV)

$7.49

$

In Stock, only 1 left!

0

10

Snapper 7027820

DECAL, Hood (Right Hand)
(Superseded to 7027820YP)

Note: (Model LT160H42CBV2)

$7.99

$

Usually ships in 2-12 days

0

10

Snapper 7027821

DECAL, Hood (Left Hand)
(Superseded to 7027821YP)

Note: (Model LT160H42CBV2)

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 7091095

RIVET, 1/8 Pop
(Superseded to 7091095SM)

$2.99

$

In Stock, Qty 12

0

13

Snapper 7091106

SCREW, M4.8 x 1.59 x 16.00 mm, Special
(Superseded to 7091106YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7029570

GRILLE, Hood
(Superseded to 7029570YP)

$152.99

$

Usually ships in 2-12 days

0

15

Snapper 7026482

CLIP, "J"
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

16

Snapper 7026377

DECAL, Molded Medallion

Note: Was 71544

$

$

Currently unavailable

17

Snapper 7029602

LENS, Grille (Headlights)
(Superseded to 7029602YP)

$60.99

$

Usually ships in 2-12 days

0

18

Snapper 7026180

DECAL, Reflect (Left Hand)
(Superseded to 7026180YP)

$7.99

$

Usually ships in 2-12 days

0

19

Snapper 7026179

DECAL, Reflect (Right Hand)
(Superseded to 7026179YP)

$5.99

$

Usually ships in 2-12 days

0

20

Snapper 7022968

DECAL - SNAPPER, 4" Molded Logo

Note: (Silver Letters - Blue Stripe)

$

$

Not available

21

Snapper 7090858

SCREW, 5/16-18 x 1/2" Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, Qty 14

0

22

Snapper 7024061

BOLT, Shoulder, 3/8-16 x 1 1/4" Hex Socket, Torx
(Superseded to 7024061YP)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7034324

BRACE, Hood Support
(Superseded to 7034324YP)

$50.99

$

Usually ships in 2-12 days

0

24

Snapper 7011791

RETAINER, Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7026172

BULB, Headlights
(Superseded to 7026172YP)

$14.99

$

In Stock, only 1 left!

0

26

Snapper 7024709

SOCKET, Headlight Bulb

$

$

Not available

27

Snapper 7026171

HARNESS, Headlight Wiring
(Superseded to 7026171YP)

$11.99

$

Usually ships in 2-12 days

0

30

Snapper 7028764

PLENUM,
(Superseded to 7028764YP)

Note: (Model LT160H42CBV2 Only)

$68.99

$

Usually ships in 2-12 days

0

31

Snapper 7026844

FOAM, 2 x 2 x 3.5
(Superseded to 7026844YP)

Note: (Model LT160H42CBV2 Only)

$3.99

$

Usually ships in 2-12 days

0

32

Snapper 7026803

FOAM, 1/2 x 3/4 x 14.25

Note: (Model LT160H42CBV2 Only)

$

$

Currently unavailable
