LT 160H42GBV (84594) - Snapper 42" Lawn Tractor, 16hp Electrical Parts Diagram

42" Lawn Tractor, 16hp

Electrical Parts Diagram

  • Title
28571

Snapper 7028571

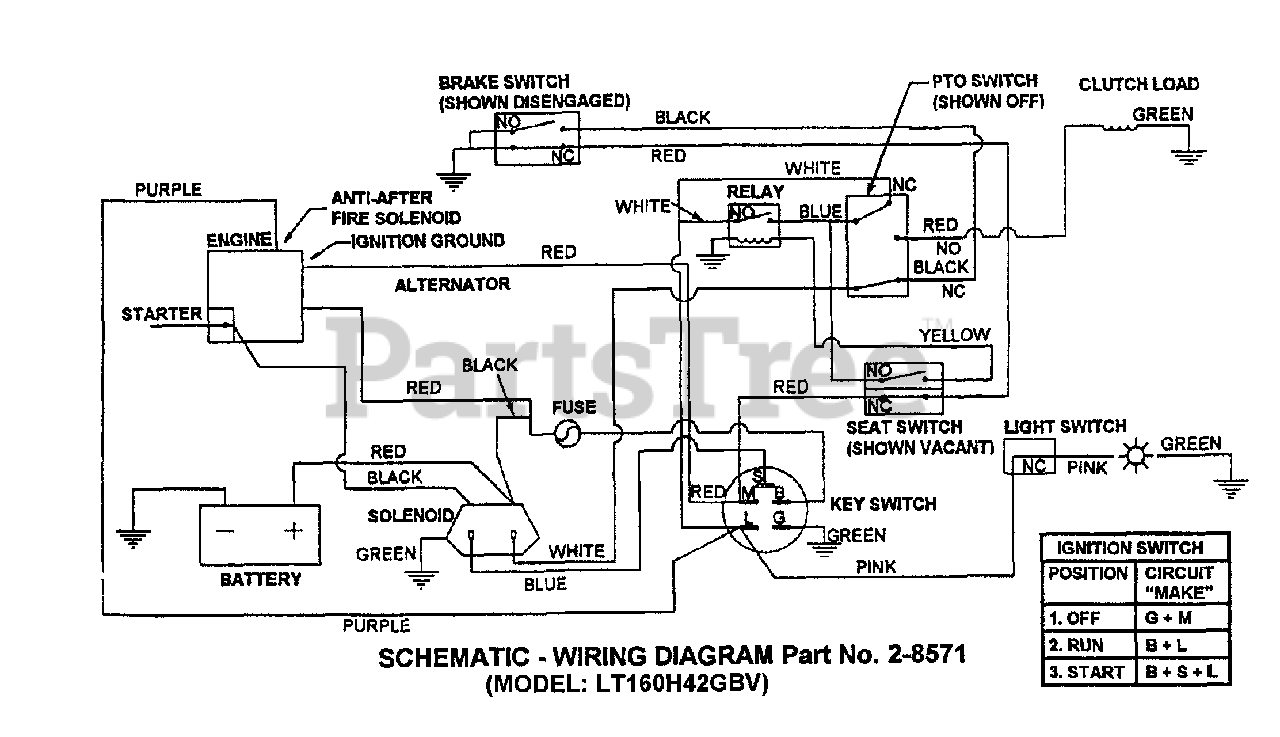

Schematic - Wiring Diagram

Note: (MODEL: LT160H42GBV)

$

$

Not available
