LT 160H482BV (80392) - Snapper 48" Lawn Tractor, 16hp Spindle Assembly - 48" Cutting Deck Parts Diagram

48" Lawn Tractor, 16hp

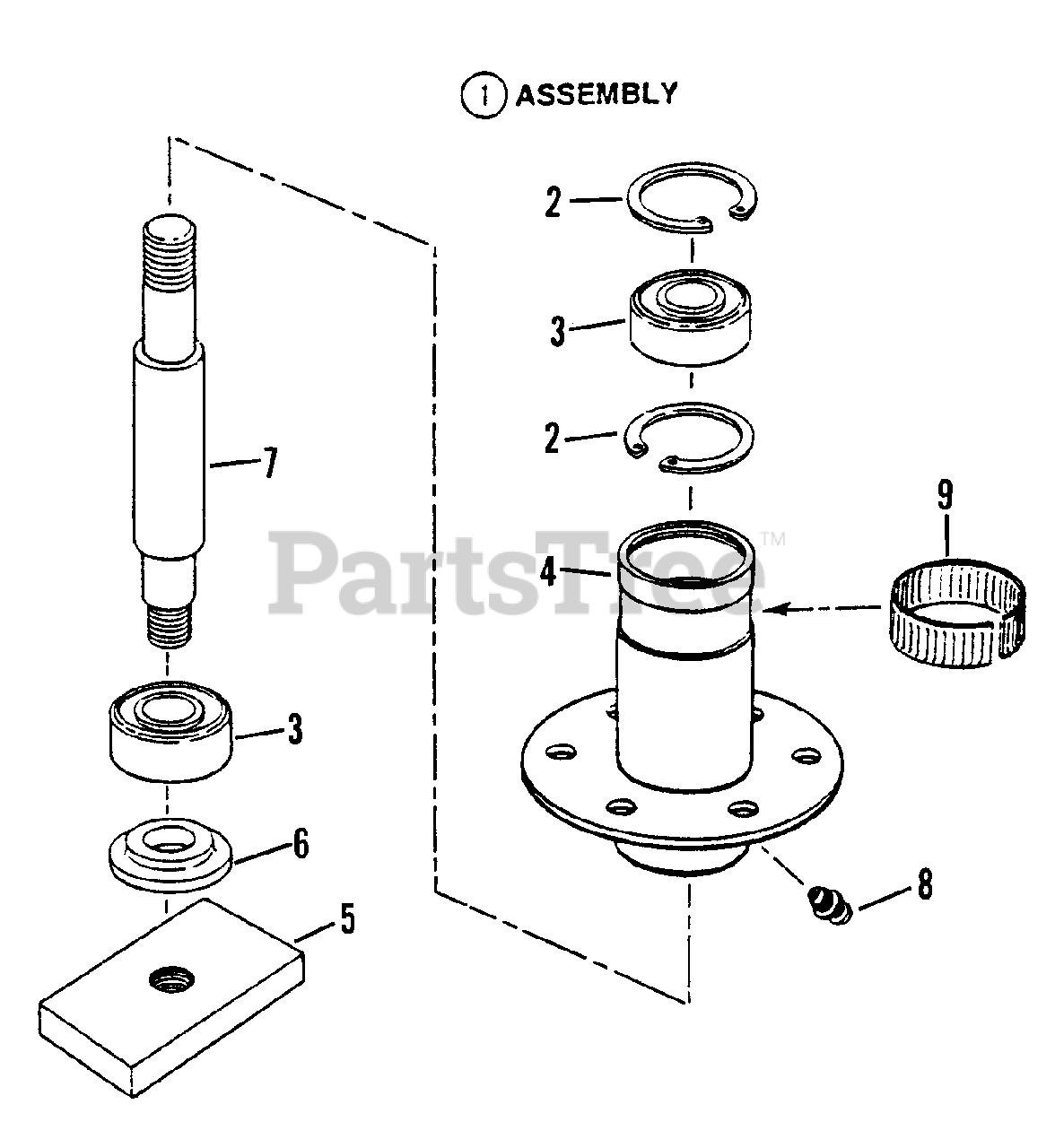

Spindle Assembly - 48" Cutting Deck Parts Diagram

  • Title
1

Snapper 7051473

ASSEMBLY, Spindle (Includes 2 thru 7)(48" Outboard)
(Superseded to 7051473YP)

Note: Was 59622

$162.99

$

Usually ships in 2-12 days

0

1

Snapper 7051528

ASSEMBLY, Spindle (Includes 2 Thru 7) (48" Center)

Note: Was 57343

$

$

Not available

2

Snapper 7012491

RING, Retaining EXT 1.75"
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

4

Snapper 7051472

HOUSING, Spindle - Outboard, 4.25"
(Superseded to 7051472YP)

Note: Was 47825

$92.99

$

Usually ships in 2-12 days

0

4

Snapper 7051527

HOUSING, Spindle - Center, 4.59"
(Superseded to 7051527YP)

Note: Was 47839

$45.99

$

Usually ships in 2-12 days

0

5

Snapper 7032294

HOLDER, Blade
(Superseded to 7032294YP)

$33.99

$

Usually ships in 2-12 days

0

6

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 20+

0

7

Snapper 7027632

SPINDLE, 6.06" Long
(Superseded to 7027632YP)

Note: (48" Outboard)

$52.99

$

In Stock, only 1 left!

0

7

Snapper 7027641

SPINDLE, 7.25" Long

Note: (48" Center)

$

$

Not available

8

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, only 2 left!

0

9

Snapper 7012670

RING, Tolerance 2.0"
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 13

0
