LT 180H48FBV2 (84359) - Snapper 48" Lawn Tractor, 18hp 48" Cutting Deck Sub Assembly (P/N 57821) Parts Diagram

48" Lawn Tractor, 18hp

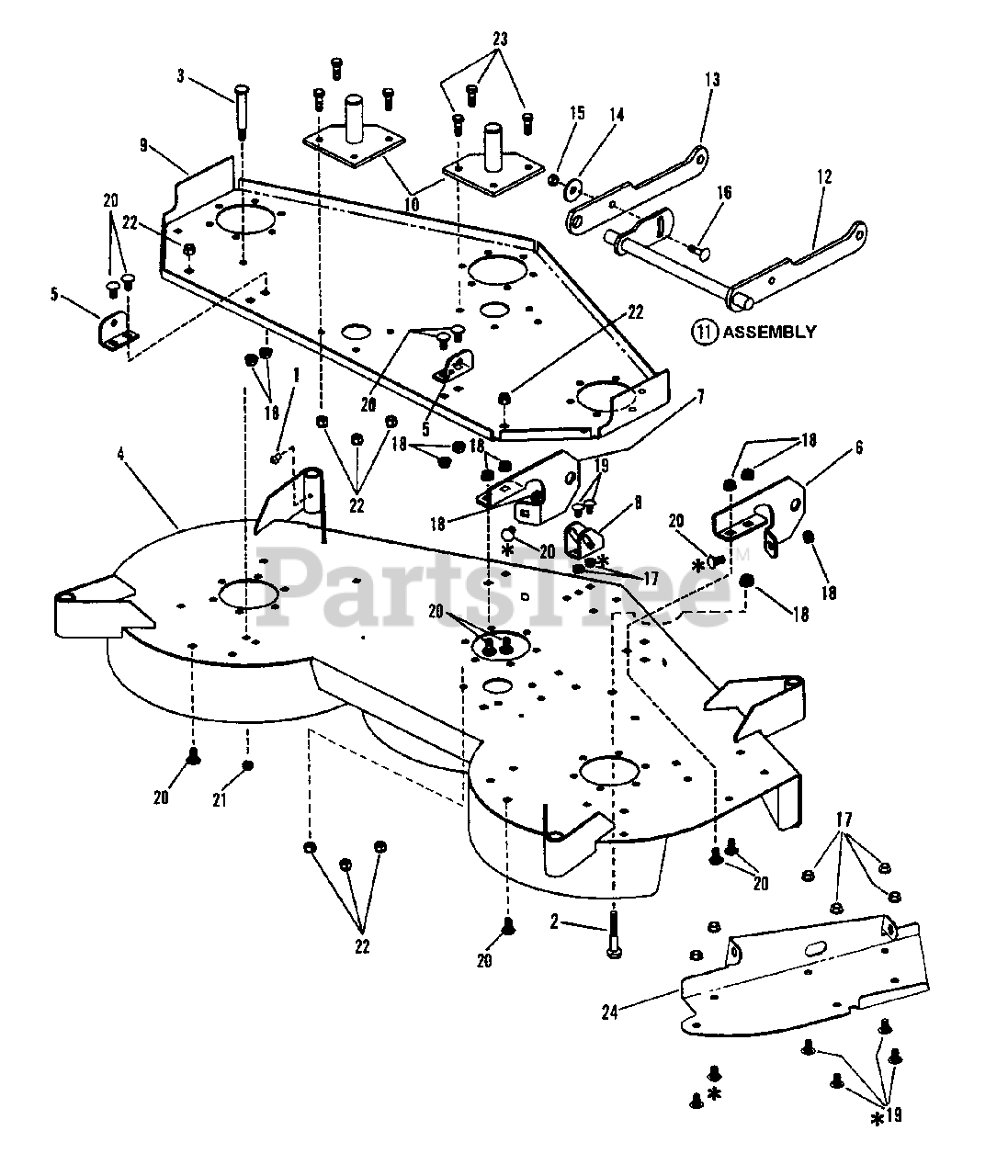

48" Cutting Deck Sub Assembly (P/N 57821) Parts Diagram

  • Title

1

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 6

0

2

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 703871)

Note: Was 90143

$4.99

$

In Stock, only 2 left!

0

3

Snapper 7029265

BOLT, Gage Wheel
(Superseded to 7029265SM)

$10.99

$

In Stock, only 2 left!

0

4

Snapper 7063297

WELDMENT, Deck
(Superseded to 7063297YP)

Note: Was 46611

$757.99

$

Usually ships in 2-12 days

0

5

Snapper 7046860

BRACKET, Rear Lift- 48" Deck

$

$

Not available

6

Snapper 7046864

BRACKET, Front Hanger- R.H.
(Superseded to 7046864YP)

$31.99

$

Usually ships in 2-12 days

0

7

Snapper 7046865

BRACKET, Front Hanger- L.H.

$

$

Not available

8

Snapper 7046870

BRACKET, Front Hanger- 48" Deck

$

$

Not available

9

Snapper 7046929

STIFFENER, 48" Deck
(Superseded to 7046929YP)

$267.99

$

In Stock, only 1 left!

0

10

Snapper 7046947

WELDMENT, Idler Pivot
(Superseded to 7046947YP)

$61.99

$

Usually ships in 2-12 days

0

11

Snapper 7054142

ASSEMBLY, Front Lift Arm- 97 Model Year

Note: (Includes items 12 thru 16)

$

$

Currently unavailable

12

Snapper 7042602

WELDMENT, Front Lift Arm
(Superseded to 7042602YP)

$83.99

$

Usually ships in 2-12 days

0

13

Snapper 7035603

ARM, Lift

$

$

Not available

14

Snapper 7012063

WASHER, Cone 3/8" I.D.
(Superseded to 703963)

$6.99

$

In Stock, Qty 20+

0

15

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

In Stock, Qty 5

0

16

Snapper 7091790

BOLT, 3/8-16 x 1-1/4", Grade 5
(Superseded to 703130)

Note: Was 91716

$3.99

$

In Stock, Qty 15

0

17

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

19

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7091547

BOLT, 3/8-16 x 3/4" Short Neck Carriage, Grade 2
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

21

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

22

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

24

Snapper 7058119

BRACKET, Hinge
(Superseded to 7058119YP)

$63.99

$

Usually ships in 2-12 days

0

Snapper 7057821

48" Cutting Deck Sub Assembly
(Superseded to 7063297YP)

$757.99

$

Usually ships in 2-12 days

0
