LT 180H48FBV2 (84359) - Snapper 48" Lawn Tractor, 18hp Frame, Clutch, Brake & Steering Components (Part 2) Parts Diagram

48" Lawn Tractor, 18hp

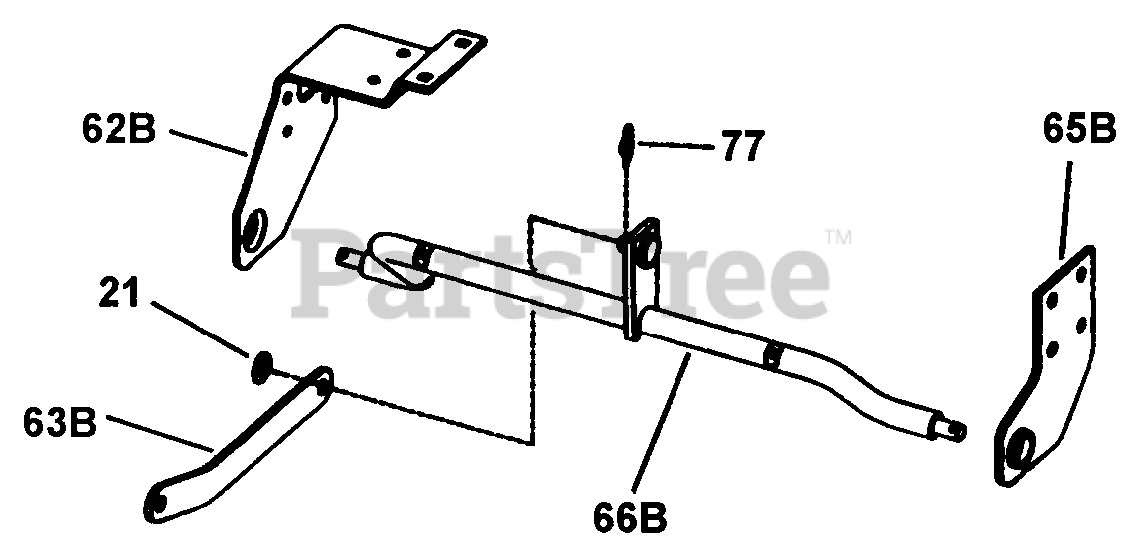

Frame, Clutch, Brake & Steering Components (Part 2) Parts Diagram

  • Title

21

Snapper 7090122

WASHER, 3/8 Bright Zinc, Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

62B

Snapper 7047068

BRACKET, Rear Lift/PTO Lever

$

$

Currently unavailable

63B

Snapper 7046758

LINK, Lift
(Superseded to 7046758YP)

$11.99

$

Usually ships in 2-12 days

0

65B

Snapper 7047055

BRACKET, Rear Hanger- LH

$

$

Not available

66B

Snapper 7047052

WELDMENT, Rear Lift

$

$

Not available

77

Snapper 7091593

COTTER PIN, 1/16 x 1-7/32" Self Lock
(Superseded to 703355)

Note: Was 24159

$3.99

$

In Stock, Qty 20+

0
