LT 180H48FBV2 (84359) - Snapper 48" Lawn Tractor, 18hp Seat, Rear Fender & Components Parts Diagram

48" Lawn Tractor, 18hp

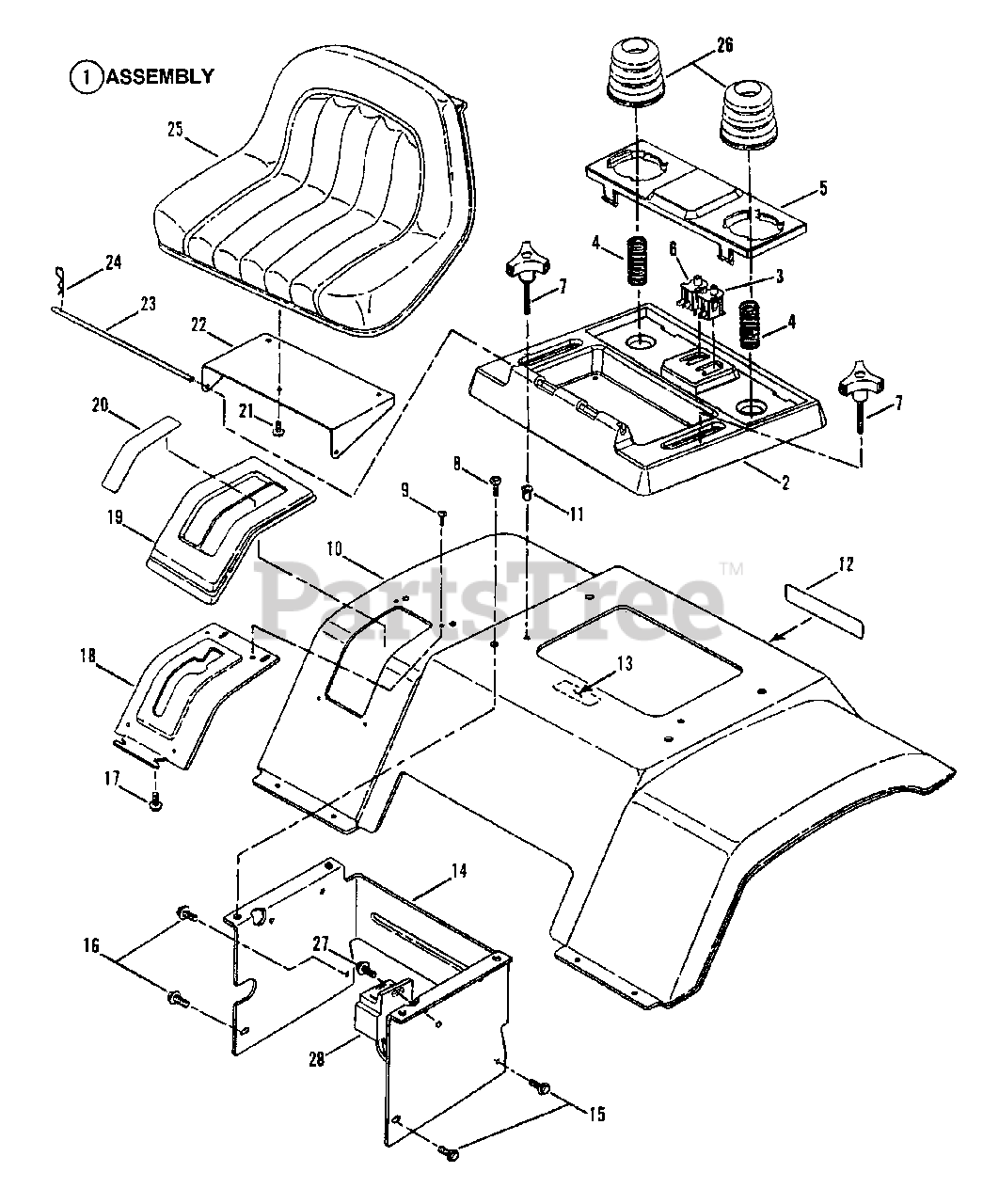

Seat, Rear Fender & Components Parts Diagram

  • Title

1

Snapper 7059214

ASSEMBLY, Seat Support
(Superseded to 7059214YP)

Note: Was 53745 (Includes 2, 3, 4, 5, & 6)

$107.99

$

Usually ships in 2-12 days

0

2

Snapper 7074204

SUPPORT, Seat
(Superseded to 7074204YP)

Note: Was 28579

$79.99

$

Usually ships in 2-12 days

0

3

Snapper 7023354

SWITCH, Seat, Gray, (N.C.)
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

4

Snapper 7073266

SPRING, Cushion Holder
(Superseded to 7073266YP)

$5.99

$

In Stock, only 4 left!

0

5

Snapper 7028580

HOLDER, Cushion
(Superseded to 7028580YP)

$50.99

$

In Stock, only 1 left!

0

6

Snapper 7015707

SWITCH, Seat
(Superseded to 7015707YP)

$8.99

$

In Stock, Qty 7

0

7

Snapper 7017875

KNOB, Seat Adjustment, 5/16-18 x 2"
(Superseded to 7017875YP)

$10.99

$

Usually ships in 2-12 days

0

8

Snapper 7091001

SCREW, 5/16-18 X 5/8" Truss Head Torx
(Superseded to 1960086SM)

$4.99

$

In Stock, Qty 5

0

9

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, only 1 left!

0

10

Snapper 7073346

PAN, Seat (Fender)
(Superseded to 7073346YP)

Note: Was 34862

$341.99

$

Usually ships in 2-12 days

0

11

Snapper 7091761

RIV-NUT, 5/16-18 Round

$

$

Not available

12

Snapper 7022971

DECAL - SNAPPER, 7.28" Molded Logo, Silver Letters & Blue Stripe

$

$

Not available

13

Snapper 7026415

DECAL - CAUTION, Battery Location
(Superseded to 7026415YP)

$7.49

$

Usually ships in 2-12 days

0

14

Snapper 7072788

SUPPORT, Fender

$

$

Currently unavailable

15

Snapper 7091523

SCREW, 5/16/18 x 5/8" Hex Washer Head, Swage Form
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

16

Snapper 7091524

SCREW, 5/16/18 x 1 1/4" Hex Washer Head, Swage Form
(Superseded to 703167)

$3.99

$

In Stock, Qty 13

0

17

Snapper 7091105

SCREW, #10-16 x 1/2" Hex Washer Head, Self-Tapping
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

18

Snapper 7033120

DETENT, Shift

$

$

Not available

19

Snapper 7024894

COVER, Shift
(Superseded to 7024894YP)

$5.99

$

Usually ships in 2-12 days

0

20

Snapper 7073424

DECAL, Shift Cover, 5-Speed

Note: Was 16576

$

$

Not available

21

Snapper 7091525

BOLT, 5/16-18 x 1/2" Hex Flange Lock, Grade 5
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

22

Snapper 7033318

BRACKET, Seat Support

$12.99

$

Usually ships in 2-12 days

0

23

Snapper 7074452

ROD, Seat Hinge
(Superseded to 7074452YP)

Note: Was 33435

$10.99

$

Usually ships in 2-12 days

0

24

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7035579

SEAT, Operator, V560
(Superseded to 7035579YP)

$438.99

$

Usually ships in 2-12 days

0

26

Snapper 7019109

CUSHION, Seat
(Superseded to 7019109YP)

$18.99

$

In Stock, Qty 20+

0

27

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

28

Snapper 7028571

RECEPTACLE, Female Wire Harness Relay

Note: (For model LT160H42FBV)

$

$

Not available

28

Snapper 7028520

RECEPTACLE, Female Wire Harness Relay
(Superseded to 7028520YP)

Note: (For models LT160H42FBV2 & LT180H48FBV2)

$144.99

$

Usually ships in 2-12 days

0
