LT-1842 (13CX609G063) - Troy-Bilt 42" Lawn Tractor (2002) Drive, Rear Wheels, Frame Parts Diagram

42" Lawn Tractor

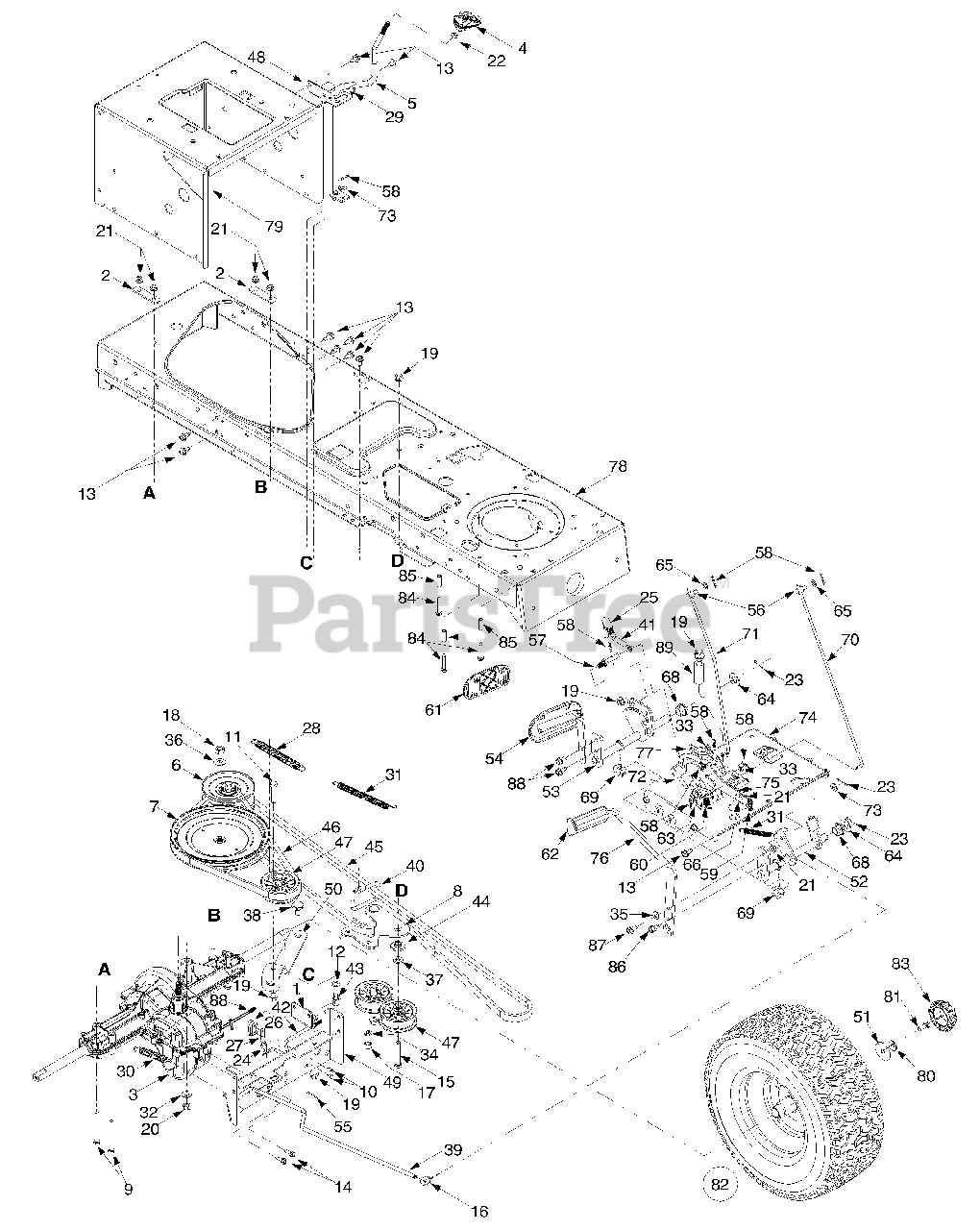

Drive, Rear Wheels, Frame Parts Diagram

  • Title

1

Troy-Bilt 783-1015-0637

Shift Lever Support

$40.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 17840-0637

Transaxle Mounting Bracket

$11.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 918-0551A

Single-speed Transmission Assembly

$

$

Not available

4

Troy-Bilt 931-0009A

Shifter Knob

$14.99

$

In Stock, Qty 5

0

5

MTD 647-0045

Shift Lever

Note: No Longer Available

$

$

Not available

6

Troy-Bilt 956-0048

Variable-speed Pulley Assembly

$

$

Not available

7

Troy-Bilt 956-0665

Transmission Pulley, 8.5 x .5-36

$73.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 918-0771A

Pulley Hub

$28.99

$

Usually ships in 3-6 days

0

8

MTD 683-0251

Double-idler Bracket

Note: No Longer Available

$

$

Not available

9

Troy-Bilt 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 3 left!

0

10

Troy-Bilt 710-0227

Self-tapping Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 936-0272

Flat Washer, .51 x 1.0 x .060
(Superseded to 736-0272)

$4.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 911-0677

Ferrule, 5/16-18

$17.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-0378

Hex Nut, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 912-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 914-0111

Cotter Pin
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 914-0149B

Internal Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

25

Troy-Bilt 923-3018

Ball Joint

$16.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 725-1644

Short Spring Switch

$9.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 10

0

28

Troy-Bilt 932-0384

Extension Spring, .62 Dia. x 6.12

$14.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 732-0525

Compression Spring Clip

$10.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 732-0716D

Extension Spring, .59 OD x 4

$13.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 732-0963

Extension Spring, .50 Dia. x 6.37

Note: (hooks to flange, 783-0650, in frame)

$9.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

34

Troy-Bilt 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 736-0407

Bell Washer, .45 x 1.0 x .602

$3.99

$

In Stock, Qty 7

0

37

Troy-Bilt 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, Qty 16

0

38

Troy-Bilt 738-0322A

Shoulder Screw, .625 x .217

$6.99

$

In Stock, Qty 5

0

39

Troy-Bilt 747-1122

Brake Rod

$

$

Not available

40

MTD 747-1123A

Belt Guard

Note: No Longer Available

$

$

Not available

41

Troy-Bilt 747-1127

Idler Adjustment Rod, 3/8

$42.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 747-1285

Shift Rod

$

$

Not available

43

Troy-Bilt 711-0736

Adjustment Ferrule, 1/4-20 x 1.0

$13.99

$

In Stock, only 2 left!

0

44

Troy-Bilt 738-0372B

Shoulder Spacer, .38 ID

$9.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 954-0467A

Lower Drive Belt

$50.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 954-0468

Upper Drive Belt

$30.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 756-04224

Flat Idler, 2.75 OD

$26.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 783-1016B

Speed Control Rod Bracket

$

$

Not available

49

Troy-Bilt 783-0667B

Transmission Torque Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-0667B-0637

Trans Torque Bracket - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0667B-4008

BRACKET-TRANS TORQUE - WINE RED (4008)

$

$

Not available

$40.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 783-0669-0637

Idler Bracket

$20.99

$

In Stock, only 3 left!

0

51

Troy-Bilt 736-0430

Flat Washer, .350 x 1.59 x .062

$4.49

$

In Stock, Qty 19

0

52

Troy-Bilt 753-05606

Brake Control Assembly

$

$

Not available

53

Troy-Bilt 647-0032A-0637

Speed Control Assembly

$

$

Not available

54

Troy-Bilt 683-0266

Drive Pedal Assembly

$84.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 711-0736

Ferrule, 1/4-20

$13.99

$

In Stock, only 2 left!

0

57

Troy-Bilt 711-1363

Pin, 3/8-16 x 2.43

$4.49

$

Usually ships in 3-6 days

0

58

Troy-Bilt 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

59

Troy-Bilt 732-0437

Compression Spring, .34 OD x 1.0

$10.99

$

In Stock, only 2 left!

0

60

Troy-Bilt 732-0955

Extension Spring, .50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

61

Troy-Bilt 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 735-3049A

Brake Pedal Pad

$12.99

$

In Stock, Qty 5

0

63

Troy-Bilt 936-0142

Flat Washer, .281 x .5 x .063

$4.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

65

Troy-Bilt 736-0204

Flat Washer, .344 x .062 x .03

$4.49

$

In Stock, Qty 20+

0

66

Troy-Bilt 938-0155

Shoulder Screw, .437 x 1.62

$6.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 938-0507B

Shoulder Screw, .5 x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

68

Troy-Bilt 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

69

Troy-Bilt 741-3065B

Split Hex Flange Bearing

$8.49

$

In Stock, Qty 20+

0

70

Troy-Bilt 747-1137

Cruise Control Rod

$

$

Not available

71

Troy-Bilt 747-1138

Brake Lock Control Rod

$

$

Not available

72

Troy-Bilt 748-0413

Cruise Latch

$32.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

74

Troy-Bilt 783-04612-0637

Stearing Support Bracket

$89.99

$

In Stock, only 3 left!

0

75

Troy-Bilt 783-0732A

Drive Lock-out Bracket

$34.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 783-0773

Brake Pedal

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-0773-0498

Service Kit - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0773-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0773-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0773-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-0773-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0773-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

$

$

77

Troy-Bilt 753-04872

Neutral Return Bracket

$

$

Not available

78

MTD 683-0304

Lower Frame Assembly

Note: No Longer Available

Variations

Troy-Bilt 683-0304-0637

LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 683-0304-0650

LOWER FRAME - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 683-0304-0665

LOWER FRAME - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 683-0304-0691

LOWER FRAME - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 683-0304-0716

LOWER FRAME - CUB YELLOW-99 (0716)

$

$

Not available

$

$

79

Troy-Bilt 783-1031A

Hitch Plate

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-1031A-0691

HITCH PLATE-UPPER - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-1031A-0650

UPPER HITCH PLATE - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-1031A-0665

UPPER HITCH PLATE - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-1031A-0716

UPPER HITCH PLATE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

80

Troy-Bilt 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

81

Troy-Bilt 710-0627

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

82

Troy-Bilt 634-0105B

Wheel Assembly (Model D609G)

Variations

Troy-Bilt 634-0105B-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$249.99

$

In Stock, only 4 left!

0

Troy-Bilt 634-0105B-0912

Wheel Assembly, Gray - Dico Gray (0912)

$249.99

$

In Stock, only 4 left!

0

Troy-Bilt 634-0105B-0914

Wheel Assembly, Gray - Cheng Gray (0914)

$249.99

$

In Stock, only 4 left!

0

Troy-Bilt 634-0105B-0915

Wheel Assembly, Gray - Duro Gray (0915)

$249.99

$

In Stock, only 4 left!

0

Troy-Bilt 634-0105B-0916

Wheel Assembly, Gray - Kenda Gray (0916)

$249.99

$

In Stock, only 4 left!

0

Troy-Bilt 634-0105B-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

Troy-Bilt 634-0105B-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$

$

Not available

Troy-Bilt 634-0105B-0945

WHEEL ASM-COMPLETE - Duro Yellow (0945)

$

$

Not available

$202.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 634-0177

Wheel Assembly (Model U609H)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 634-0177-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$473.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0177-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$473.99

$

In Stock, only 1 left!

0

Troy-Bilt 634-0177-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$357.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0177-0991

WHEEL ASM-COMPLETE - Carlisle White (0991)

$357.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0177-0994

WHEEL ASM-COMPLETE - Cheng White (0994)

$357.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0177-4009

WHEEL ASM-COMPLETE - TEE WHITE (4009)

$357.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0177-0961

WHEEL ASM-COMPLETE - Carlisle Gray (0961)

$

$

Not available

$384.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 634-0070

Rim Only
(Superseded to 634-04369)

Note: Not Shown

Variations

Troy-Bilt 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 934-0255

Air Valve

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

82

Troy-Bilt 734-1730

Tire Only, 20 x 8 x 8, Square Shoulder

Note: Not Shown

Variations

Troy-Bilt 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, Qty 6

0

Troy-Bilt 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, Qty 6

0

Troy-Bilt 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, Qty 6

0

Troy-Bilt 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, Qty 6

0

$99.99

$

In Stock, Qty 6

0

83

Troy-Bilt 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

84

Troy-Bilt 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 20+

0

85

Troy-Bilt 750-0556

Spacer

Note: N/A

$

$

Currently unavailable

86

Troy-Bilt 710-0650

Self-tapping Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

87

Troy-Bilt 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

88

Troy-Bilt 747-1285

Shift Rod

$

$

Not available

89

Troy-Bilt 748-0415B

Spacer

$7.49

$

In Stock, Qty 14

0
