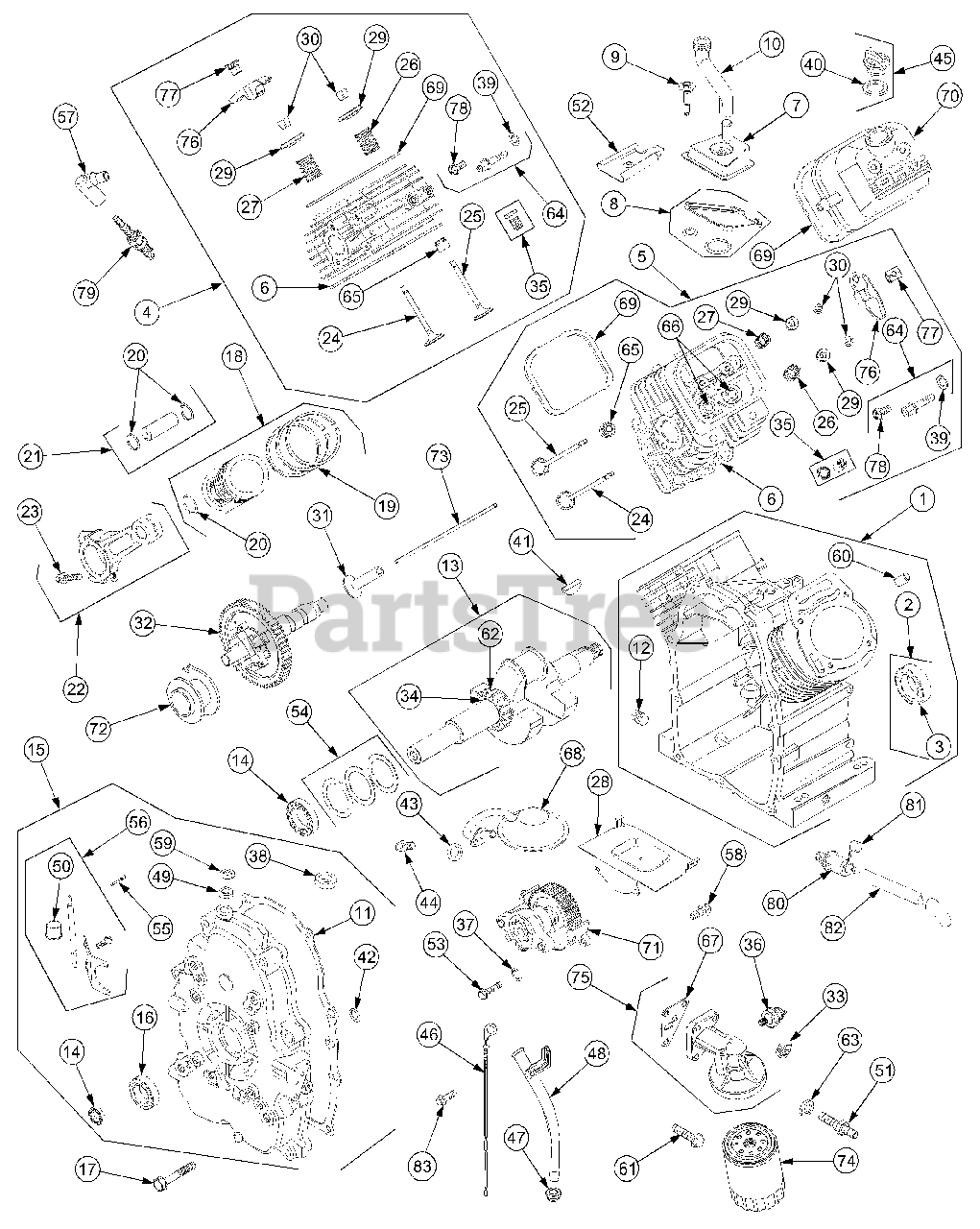

LT 2180 (13A-254G712) - Cub Cadet 42" Lawn Tractor Engine Assembly Parts Diagram

42" Lawn Tractor

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet BS-692544

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-808534

Kit, Bushing/Seal (Magneto Side)

$20.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-805101

Seal, Oil
(Superseded to BS-805101S)

$5.99

$

In Stock, Qty 7

0

4

Cub Cadet BS-809185

Head, Cylinder (#1)
(Superseded to BS-845486)

$

$

Not available

Cub Cadet BS-692059

Screw

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet BS-809186

Head, Cylinder (#2)
(Superseded to BS-845487)

$220.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-692059

Screw

$3.99

$

In Stock, only 4 left!

0

6

Cub Cadet BS-690888

Gasket, Cylinder Head
(Superseded to BS-845884)

$30.99

$

In Stock, only 2 left!

0

7

Cub Cadet BS-808984

Breather Assembly

$53.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-809094

Gasket, Breather
(Superseded to BS-844986)

$8.49

$

In Stock, Qty 7

0

9

Cub Cadet BS-690751

Screw (Breather Ass'y.)

$7.49

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-806083

Tube, Breather
(Superseded to BS-806083S)

$16.99

$

In Stock, only 1 left!

0

11

Cub Cadet BS-691684

Gasket, Crankcase
(Superseded to BS-845254)

$45.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-690946

Plug, Oil Drain

$5.99

$

In Stock, Qty 17

0

13

Cub Cadet BS-809806

Crankshaft

$

$

Currently unavailable

14

Cub Cadet BS-690752

Bearing, Ball
(Superseded to BS-843827)

$36.99

$

In Stock, only 1 left!

0

15

Cub Cadet BS-808847

Cover, Crankcase
(Superseded to BS-844588)

$247.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-805049

Seal, Oil (PTO Side)
(Superseded to BS-805049S)

$12.99

$

In Stock, Qty 10

0

17

Cub Cadet BS-692540

Screw (Crankcase Cover)

$

$

Not available

18

Cub Cadet BS-808326

Piston Assembly
(Superseded to BS-843792)

$104.99

$

In Stock, only 2 left!

0

Cub Cadet BS-808337

Piston Assembly, .020 O.S.

$

$

Not available

19

Cub Cadet BS-807889

Ring Set
(Superseded to BS-843793)

$52.99

$

In Stock, only 3 left!

0

Cub Cadet BS-807995

Ring Set, .020 O.S.

$

$

Not available

20

Cub Cadet BS-690683

Lock, Piston Pin

$4.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-807886

Pin, Piston

$16.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-807900

Rod, Connecting
(Superseded to BS-807900S)

$

$

Not available

Cub Cadet BS-807803

Rod, Connecting, .020 U.S.

$65.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-690698

Screw, Connecting Rod

$7.49

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-807681

Valve, Exhaust

$

$

Not available

25

Cub Cadet BS-807680

Valve, Intake

$26.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-692084

Spring, Valve (Intake)

$6.49

$

In Stock, only 2 left!

0

27

Cub Cadet BS-692084

Spring, Valve (Exhaust)

$6.49

$

In Stock, only 2 left!

0

28

Cub Cadet BS-690745

Deflector

$6.49

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-692058

Retainer, Valve

$5.49

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-807683

Keeper, Valve
(Superseded to BS-844788)

$6.99

$

In Stock, only 2 left!

0

31

Cub Cadet BS-690977

Tappet, Valve

$7.99

$

In Stock, only 3 left!

0

32

Cub Cadet BS-691557

Camshaft
(Superseded to BS-845649)

$184.99

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-690283

Plug, Oil
(Superseded to BS-794903)

$5.49

$

In Stock, only 1 left!

0

34

Cub Cadet BS-691639

Key, Timing

$4.49

$

In Stock, only 3 left!

0

35

Cub Cadet BS-807623

Adjuster, Rocker Arm

$11.99

$

In Stock, only 1 left!

0

36

Cub Cadet BS-491657

Switch, Oil Pressure
(Superseded to BS-491657S)

$31.99

$

In Stock, only 1 left!

0

37

Cub Cadet BS-690681

Seal, Oil Ring (Oil Pump)

$5.99

$

In Stock, Qty 7

0

38

Cub Cadet BS-690704

Washer, Sealing

$5.99

$

In Stock, only 4 left!

0

39

Cub Cadet BS-807085

Washer, Sealing

$3.99

$

In Stock, Qty 10

0

40

Cub Cadet BS-691312

Gasket, Oil Fill
(Superseded to BS-809500)

$10.99

$

In Stock, only 1 left!

0

41

Cub Cadet BS-808095

Key, Woodruff

$13.99

$

In Stock, only 1 left!

0

42

Cub Cadet BS-692154

Seal, O-Ring

$5.99

$

In Stock, only 1 left!

0

43

Cub Cadet BS-690690

Seal, O-Ring

$5.99

$

In Stock, only 1 left!

0

44

Cub Cadet BS-692537

Screw
(Superseded to BS-807084)

$3.49

$

In Stock, Qty 13

0

45

Cub Cadet BS-491832

Plug, Oil Fill
(Superseded to BS-809500)

$10.99

$

In Stock, only 1 left!

0

46

Cub Cadet BS-693175

Dipstick

$26.99

$

In Stock, only 1 left!

0

47

Cub Cadet BS-693172

Seal, Dipstick Tube

$5.49

$

In Stock, only 4 left!

0

48

Cub Cadet BS-693173

Tube, Dipstick

$24.99

$

Usually ships in 2-12 days

0

49

Cub Cadet BS-690701

Bushing, Governor Shaft

$7.99

$

In Stock, only 1 left!

0

50

Cub Cadet BS-806686

Bushing, Governor Shaft

$8.49

$

Usually ships in 2-12 days

0

51

Cub Cadet BS-690682

Stud, Oil Filter Adapter

$4.49

$

Usually ships in 2-12 days

0

52

Cub Cadet BS-690686

Baffle, Breather

$14.99

$

In Stock, only 1 left!

0

53

Cub Cadet BS-691492

Screw

$3.99

$

Usually ships in 2-12 days

0

54

Cub Cadet BS-807625

Shim, End Play

$19.99

$

Usually ships in 2-12 days

0

55

Cub Cadet BS-691550

Retainer, Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

56

Cub Cadet BS-806685

Shaft, Governor

$30.99

$

Usually ships in 2-12 days

0

57

Cub Cadet BS-692076

Boot, Spark Plug

$5.49

$

In Stock, Qty 8

0

58

Cub Cadet BS-692539

Screw

$3.49

$

In Stock, only 2 left!

0

59

Cub Cadet BS-690680

Seal, Governor Shaft
(Superseded to BS-842826)

$7.99

$

Usually ships in 2-12 days

0

60

Cub Cadet BS-806469

Pin, Locating

$5.99

$

In Stock, only 2 left!

0

61

Cub Cadet BS-690679

Screw

$3.49

$

Usually ships in 2-12 days

0

62

Cub Cadet BS-691530

Gear, Timing

$19.99

$

In Stock, only 1 left!

0

63

Cub Cadet BS-690706

Washer

$3.99

$

In Stock, only 2 left!

0

64

Cub Cadet BS-809157

Stud, Rocker Arm

$6.99

$

In Stock, Qty 18

0

65

Cub Cadet BS-691963

Seal, Valve

$10.99

$

Usually ships in 2-12 days

0

66

Cub Cadet BS-692057

Bushing, Valve Guide

Note: (not shown)

$

$

Not available

67

Cub Cadet BS-692063

Gasket, Oil Adapter

$4.49

$

In Stock, only 3 left!

0

68

Cub Cadet BS-690900

Screen, Oil Pump

$29.99

$

Usually ships in 2-12 days

0

69

Cub Cadet BS-806039

Gasket, Rocker Cover
(Superseded to BS-806039S)

$7.49

$

In Stock, Qty 20+

0

70

Cub Cadet BS-690910

Cover, Rocker Arm

$45.99

$

In Stock, only 1 left!

0

Cub Cadet BS-691494

Cover, Rocker Arm

Note: (not shown)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-693185

Pump, Oil

$71.99

$

Usually ships in 2-12 days

0

72

Cub Cadet BS-690689

Spool, Governor

$22.99

$

In Stock, only 1 left!

0

73

Cub Cadet BS-691836

Rod, Push (Steel)

$12.99

$

In Stock, Qty 19

0

Cub Cadet BS-691758

Rod, Push (Aluminum)

$11.99

$

In Stock, only 4 left!

0

74

Cub Cadet BS-492932

Filter, Oil
(Superseded to BS-492932S)

$12.99

$

In Stock, Qty 20+

0

75

Cub Cadet BS-808235

Adapter, Oil Filter

$78.99

$

Usually ships in 2-12 days

0

76

Cub Cadet BS-691543

Arm, Rocker

$

$

Not available

77

Cub Cadet BS-690973

Pivot, Rocker Arm

$

$

Not available

78

Cub Cadet BS-807084

Screw, Rocker Cover

$3.49

$

In Stock, Qty 13

0

79

Cub Cadet 759-3336

Screw, Sems
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

80

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$22.99

$

In Stock, Qty 20+

0

81

Cub Cadet 751-3142

Cap

$4.49

$

In Stock, Qty 7

0

82

Cub Cadet 751-3141-12

Hose, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

83

Cub Cadet BS-692062

Screw, Dipstick Tube

$3.49

$

In Stock, only 1 left!

0

Cub Cadet BS-350447-1111

Engine, Complete

$

$

Currently unavailable

Cub Cadet BS-496238

Short Block

$

$

Not available
