LT 2216 (960410031-04) - Jonsered Lawn Tractor (2007-10) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

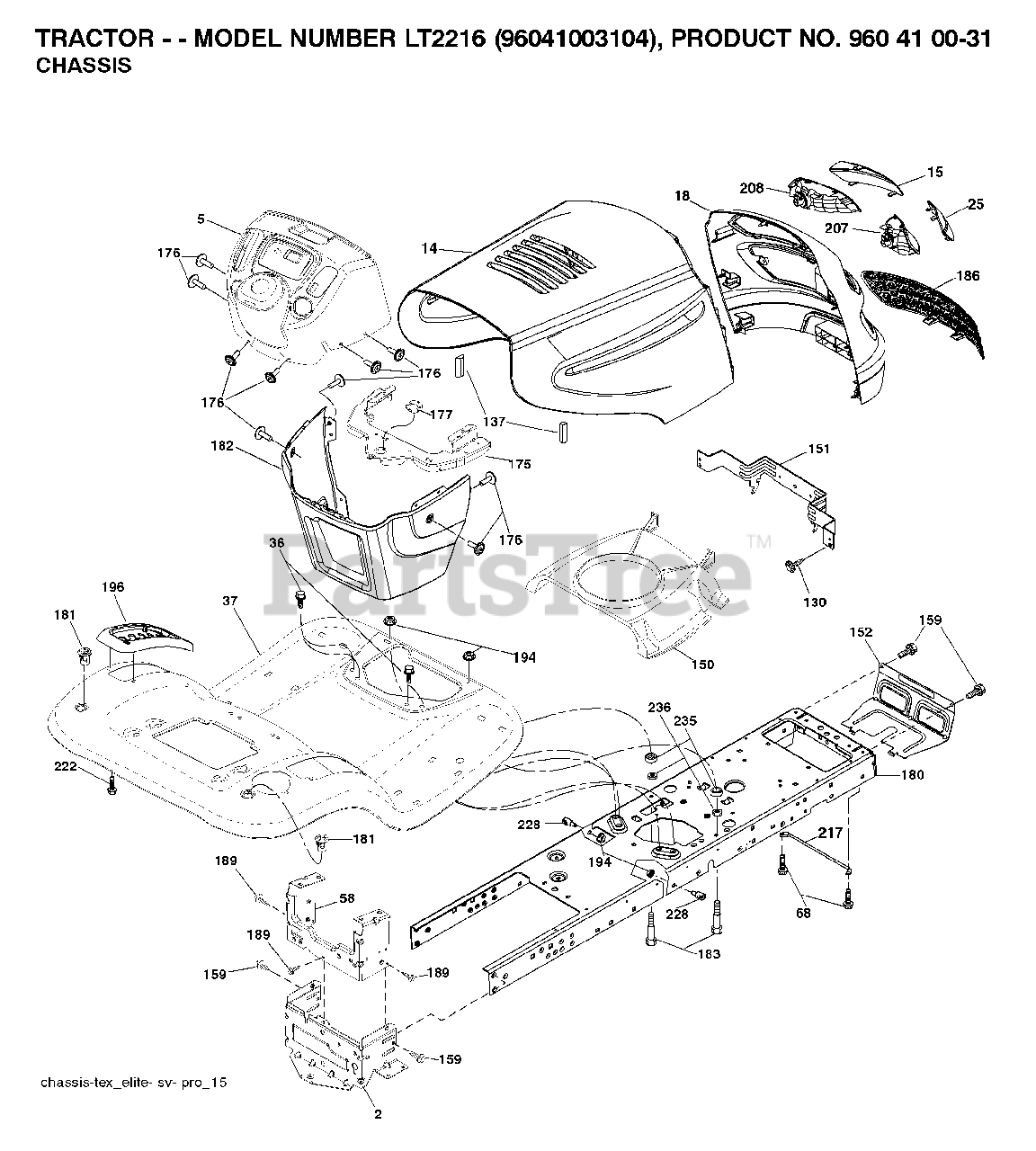

CHASSIS ENCLOSURES Parts Diagram

  • Title

2

Jonsered 532412282

DRAWBAR.LOWER.2PC.18/22

$53.99

$

In Stock, Qty 8

0

5

Jonsered 532411279

No Description Available
(Superseded to 584464401)

$60.99

$

Usually ships in 3-10 days

0

14

Jonsered 532194757

No Description Available

$

$

Not available

15

Jonsered 532189754

No Description Available
(Superseded to 183834599)

$

$

Not available

18

Jonsered 532192915

No Description Available

$

$

Not available

25

Jonsered 532189755

No Description Available
(Superseded to 183835599)

$11.99

$

Usually ships in 3-10 days

0

36

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532411283

No Description Available

$

$

Not available

58

Jonsered 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

68

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

130

Jonsered 532191611

SCREW
(Superseded to 532416358)

$3.99

$

In Stock, Qty 20+

0

137

Jonsered 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 10

0

150

Jonsered 532184322

No Description Available
(Superseded to 583133101)

$34.99

$

Usually ships in 3-10 days

0

151

Jonsered 532407807

BRACKET PIVOT

$26.99

$

Usually ships in 3-10 days

0

152

Jonsered 532194329

SHIELD.BROWNING/DEBRIS

$17.99

$

Usually ships in 3-10 days

0

159

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

175

Jonsered 532193243

CROSSMEMBER.LT

$27.99

$

Usually ships in 3-10 days

0

176

Jonsered 532400776

SCREW.#10-24X5/8.RN.QU

$11.99

$

In Stock, Qty 5

0

177

Jonsered 532195228

BUSHING STEERING

$4.99

$

In Stock, Qty 20+

0

180

Jonsered 532194260

CHASSIS.STAMPING.LT/GT
(Superseded to 532445559)

$265.99

$

Usually ships in 3-10 days

0

181

Jonsered 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Jonsered 532193057

DASH.LOWER.LT.CCS

$91.99

$

Usually ships in 3-10 days

0

183

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

186

Jonsered 532189753

No Description Available

$

$

Not available

189

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

194

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

196

Jonsered 532409728

CONSOLE.ASM.DECK.LIFT.TLT.BLAC
(Superseded to 532414579)

$37.99

$

In Stock, only 1 left!

0

207

Jonsered 532183833

BEZEL GRILL RH

$

$

Not available

208

Jonsered 532183832

BEZEL GRILL LH

$21.99

$

Usually ships in 3-10 days

0

217

Jonsered 532409167

ROD.PIVOT.HOOD

$13.99

$

Usually ships in 3-10 days

0

222

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

228

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Jonsered 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0
