LT 2216 A2 (960410038-02) - Jonsered Lawn Tractor (2008-01) DRIVE Parts Diagram

Lawn Tractor

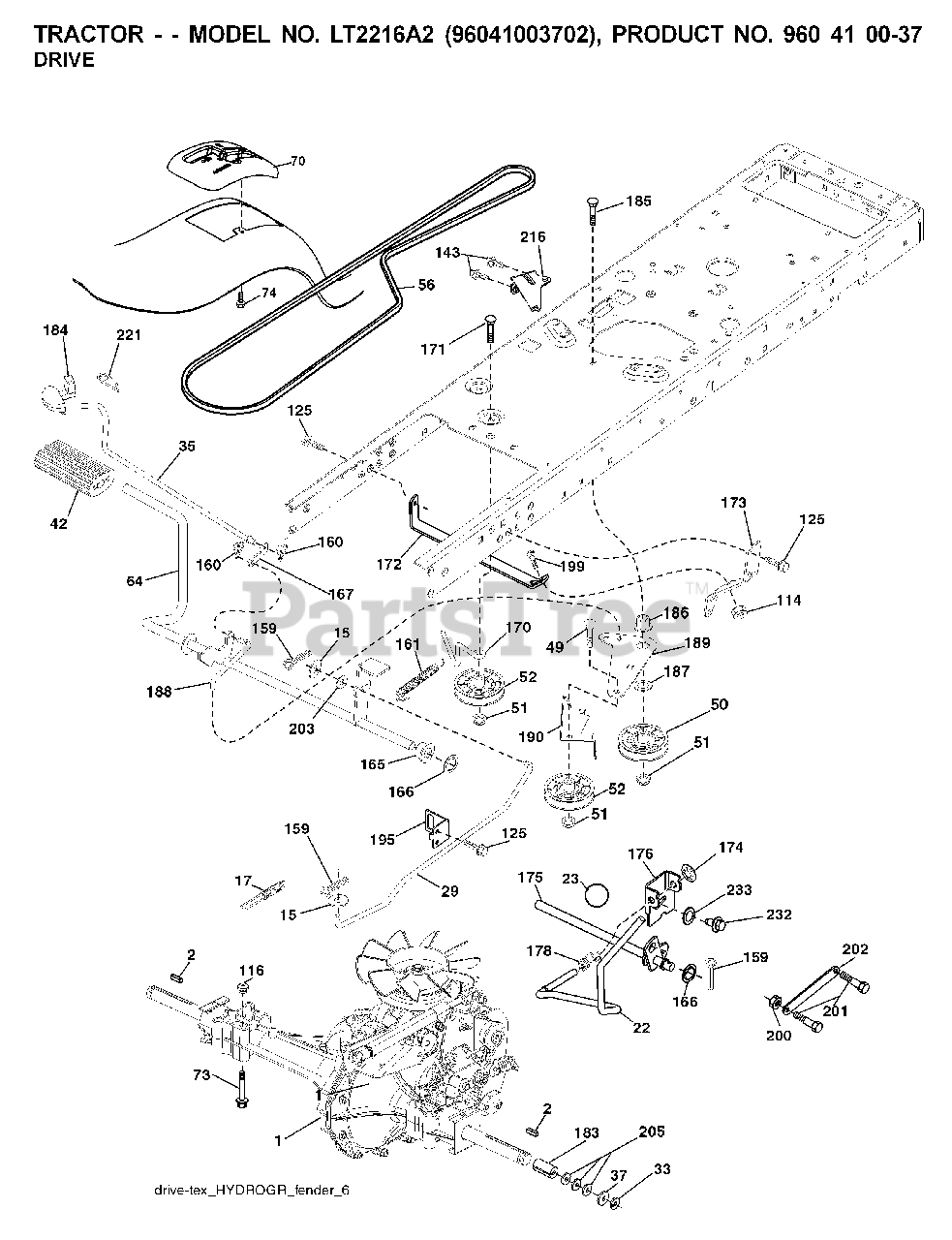

DRIVE Parts Diagram

  • Title

2

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

15

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

17

Jonsered 532197296

SPRING.BRAKE.HG3000/3500

$6.49

$

Usually ships in 3-10 days

0

22

Jonsered 532197660

ROD.SHIFT.FENDER.TLT.2006

$182.99

$

Usually ships in 3-10 days

0

23

Jonsered 532130564

PISTOL KNOB

$14.99

$

Usually ships in 3-10 days

0

29

Jonsered 532197659

ROD.BRAKE.HG-0510

$18.99

$

Usually ships in 3-10 days

0

33

Jonsered 812000001

E-RING LT

$4.99

$

In Stock, Qty 17

0

35

Jonsered 532197722

ROD.BRAKE.PARKING.LT.T

$12.99

$

Usually ships in 3-10 days

0

37

Jonsered 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

42

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

49

Jonsered 872110614

BOLT
(Superseded to 596136201)

$3.99

$

In Stock, Qty 8

0

50

Jonsered 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Jonsered 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Jonsered 532140218

V-BELT

$60.99

$

In Stock, Qty 7

0

64

Jonsered 532196200

SHAFT.ASM.PEDAL.BRAKE.

$34.99

$

Usually ships in 3-10 days

0

70

Jonsered 532411329

CONSOLE.SHIFT.STL.HYD.BLACK

$17.99

$

Usually ships in 3-10 days

0

73

Jonsered 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

74

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

114

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

116

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

125

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

159

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Jonsered 532169484

RETAINER CLIP
(Superseded to 596029401)

$3.99

$

In Stock, Qty 13

0

161

Jonsered 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

165

Jonsered 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.49

$

Usually ships in 3-10 days

0

166

Jonsered 532197290

NUT.PUSH.625.2006
(Superseded to 532429164)

$6.49

$

In Stock, only 1 left!

0

167

Jonsered 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Jonsered 532194322

KEEPER.V-IDLER.CENTER.

$7.49

$

In Stock, Qty 11

0

171

Jonsered 872110616

BOLT
(Superseded to 596136301)

$3.99

$

In Stock, Qty 20+

0

172

Jonsered 532197656

STRAP.TRQ.LH.FS.HG0510

$4.99

$

Usually ships in 3-10 days

0

173

Jonsered 532197655

STRAP TORQUE RH

$7.49

$

Usually ships in 3-10 days

0

174

Jonsered 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Jonsered 532197653

SHAFT.ASM.SHFT.HG0510/

$

$

Not available

176

Jonsered 532196214

ARM.CLEVIS.ROD.SHIFT

$7.49

$

Usually ships in 3-10 days

0

178

Jonsered 532197456

SPRING.SHIFT.GT2006

$6.49

$

In Stock, only 2 left!

0

183

Jonsered 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

184

Jonsered 532411289

HANDLE.PAKRING.BRAKE.
(Superseded to 532198403)

$

$

Not available

185

Jonsered 872110620

BOLT

$4.99

$

Usually ships in 3-10 days

0

186

Jonsered 532194321

SPACER.RETAINER

$7.49

$

Usually ships in 3-10 days

0

187

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$3.99

$

In Stock, Qty 17

0

188

Jonsered 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Jonsered 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Jonsered 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 19

0

195

Jonsered 532198012

BRKT.ROD.BRAKE.18/20/2

$

$

Not available

199

Jonsered 872140508

BOLT
(Superseded to 595901501)

$3.99

$

In Stock, Qty 17

0

200

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

201

Jonsered 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$3.99

$

In Stock, Qty 11

0

202

Jonsered 532197714

No Description Available
(Superseded to 583240801)

$4.99

$

Usually ships in 3-10 days

0

203

Jonsered 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

205

Jonsered 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

216

Jonsered 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.49

$

In Stock, only 2 left!

0

221

Jonsered 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

232

Jonsered 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

233

Jonsered 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0
