LT 2216 A2 (960410038-02) - Jonsered Lawn Tractor (2008-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

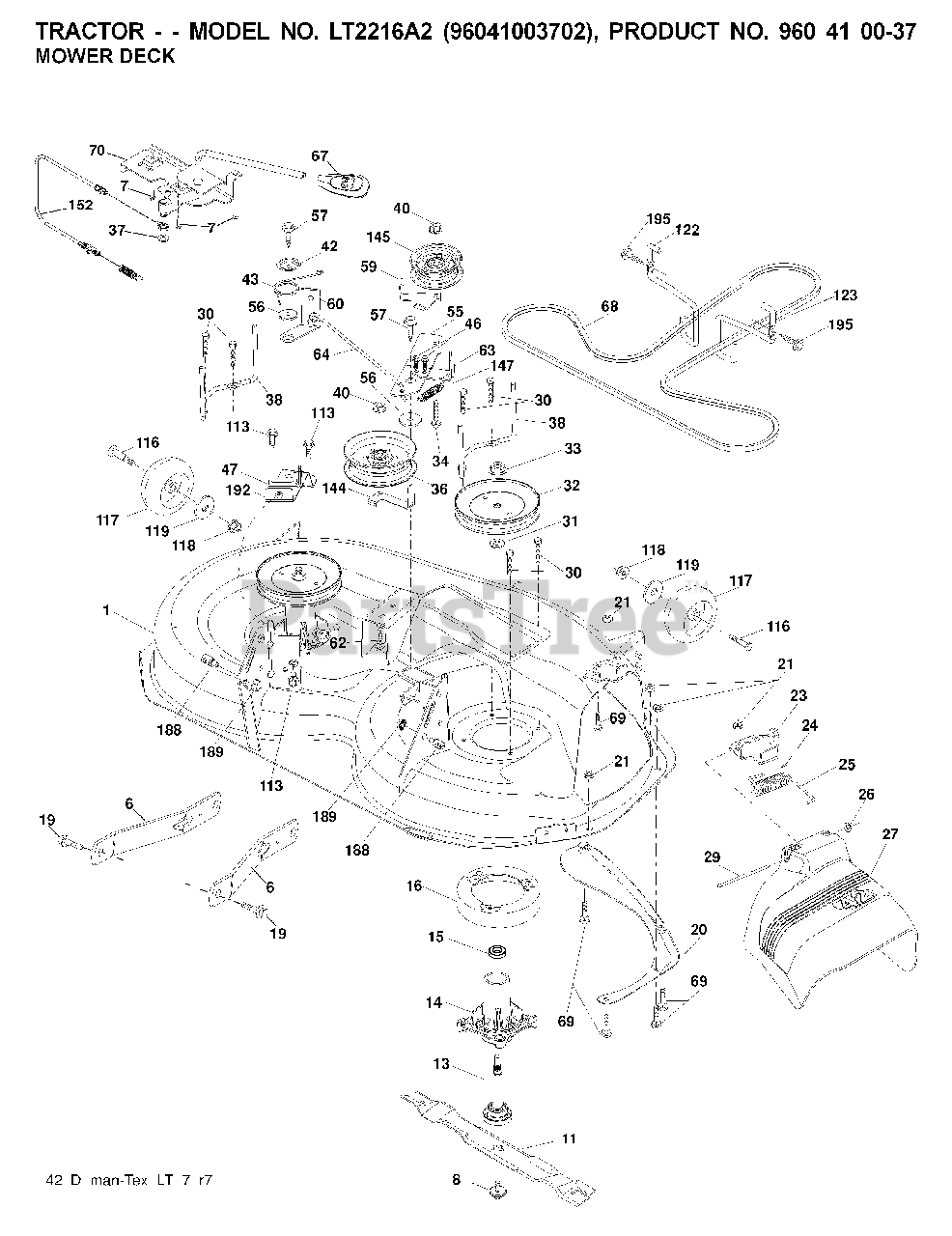

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Jonsered 532196495

DECK.WELDMENT.42"
(Superseded to 532199606)

$338.99

$

Usually ships in 3-10 days

0

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532195186

ARM.SUSPENSION.MOWER.R

$9.49

$

Usually ships in 3-10 days

0

7

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 20+

0

8

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

11

Jonsered 532138971

42" HI-LIFT BLADE

$14.99

$

In Stock, Qty 20+

0

13

Jonsered 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

14

Jonsered 532187281

HOUSING MANDREL
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

15

Jonsered 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

16

Jonsered 532174493

STRIPPER, MWR ROUND

$7.49

$

Usually ships in 3-10 days

0

19

Jonsered 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

20

Jonsered 532159770

BAFFLE.VORTEX

$

$

Not available

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Jonsered 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532197026

SPRING.TORSION.DEFLECT

$9.99

$

In Stock, Qty 20+

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Jonsered 532411485

No Description Available
(Superseded to 597316501)

$30.99

$

Usually ships in 3-10 days

0

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

30

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

31

Jonsered 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

32

Jonsered 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$10.99

$

In Stock, Qty 20+

0

33

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

34

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Jonsered 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$24.99

$

In Stock, Qty 20+

0

37

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

38

Jonsered 532199189

KEEPER.BELT.LH.MANDREL
(Superseded to 532432520)

$6.49

$

In Stock, Qty 20+

0

40

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Jonsered 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 16

0

43

Jonsered 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, only 1 left!

0

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Jonsered 532197250

BRKT.CLUTCH.CABLE

$6.49

$

In Stock, Qty 14

0

55

Jonsered 532197249

IDLER.ARM

$4.99

$

Usually ships in 3-10 days

0

56

Jonsered 532199092

SPACER.RETAINER

$6.49

$

In Stock, Qty 20+

0

57

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 6

0

59

Jonsered 532141043

GUARD, BELT

$

$

Not available

60

Jonsered 532197261

ARM BRAKE MOWER
(Superseded to 597074201)

$7.99

$

In Stock, Qty 20+

0

62

Jonsered 872110616

BOLT
(Superseded to 596136301)

$3.99

$

In Stock, Qty 20+

0

63

Jonsered 532199477

ARM BRAKE MOWER
(Superseded to 532199478)

$17.99

$

In Stock, Qty 20+

0

64

Jonsered 532199790

LINK BRAKE
(Superseded to 532199918)

$24.99

$

In Stock, Qty 18

0

67

Jonsered 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 4 left!

0

68

Jonsered 532197253

BELT.DRIVE.MOWER.TEX.42"
(Superseded to 592855001)

$30.99

$

In Stock, Qty 20+

0

69

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Jonsered 532198332

CLUTCH.ASM.MANUAL.LT.TEX

$80.99

$

In Stock, Qty 6

0

113

Jonsered 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

116

Jonsered 532124842

No Description Available
(Superseded to 596434402)

$3.99

$

In Stock, Qty 20+

0

117

Jonsered 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$4.99

$

In Stock, Qty 20+

0

118

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Jonsered 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

122

Jonsered 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, Qty 20+

0

123

Jonsered 532197259

KEEPER BELT RH

$

$

Not available

144

Jonsered 532199204

KEEPER.BELT.MOWER

$6.49

$

Usually ships in 3-10 days

0

145

Jonsered 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

147

Jonsered 532401971

RETURN SPRING

$5.99

$

In Stock, Qty 20+

0

152

Jonsered 532408714

CLUTCH CABLE
(Superseded to 532435111)

$29.99

$

In Stock, Qty 7

0

188

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

192

Jonsered 532197260

BRKT.BRAKE.STAND.LH.

$12.99

$

Usually ships in 3-10 days

0

195

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

210

Jonsered 532409259

No Description Available

$

$

Not available

211

Jonsered 532409258

No Description Available

$

$

Not available

280

Jonsered 817670608

SCREW 3/8-16X1/2

$6.49

$

In Stock, only 2 left!

0

-

Jonsered 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

-

Jonsered 532408983

No Description Available

$

$

Not available
