LT 2216 A2 (960410181-00) - Jonsered Lawn Tractor (2010-02) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

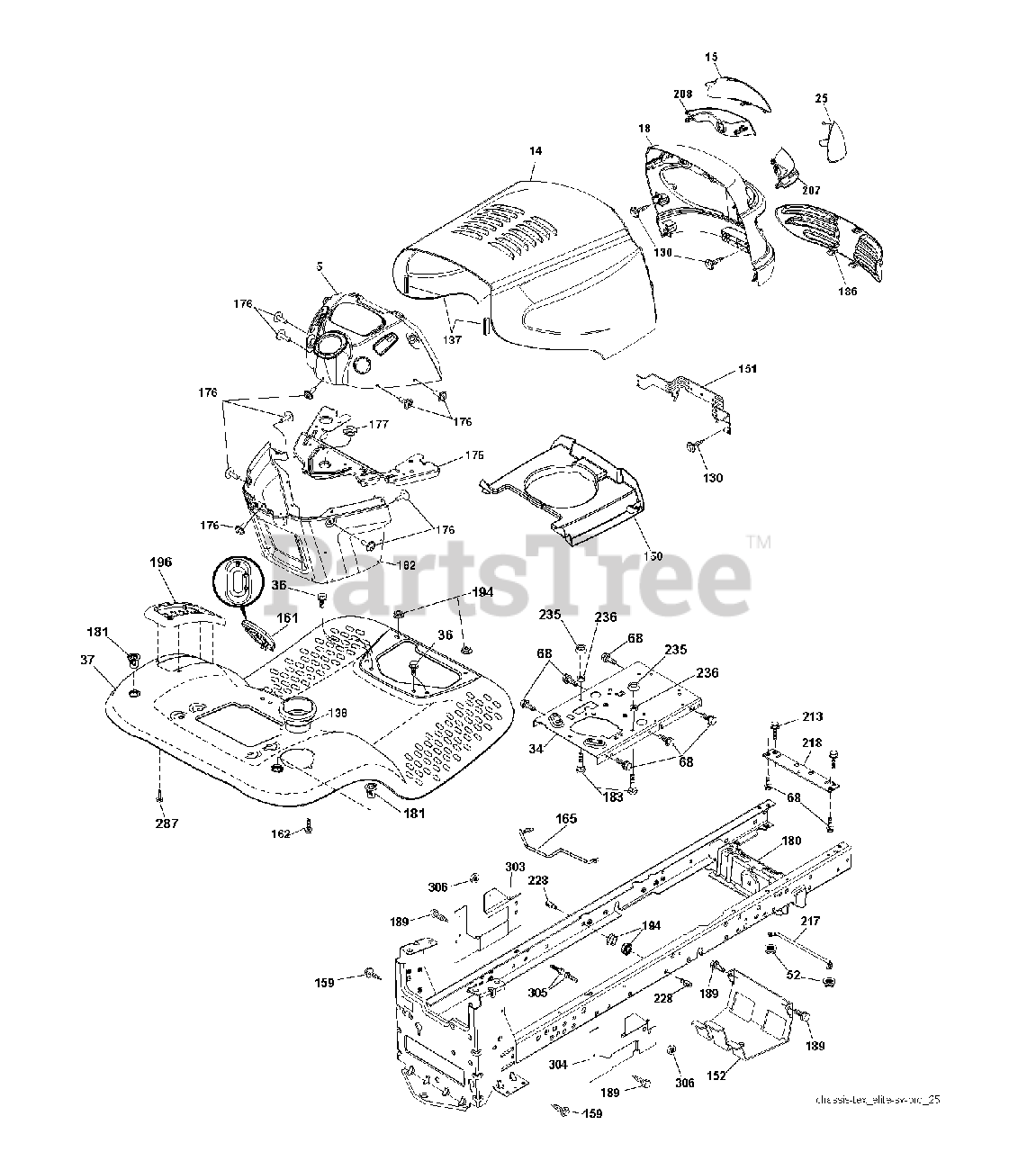

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Jonsered 532412069

No Description Available

$

$

Not available

14

Jonsered 532194747

BOLT.SHOULDER.SECTOR.P

$8.99

$

In Stock, Qty 16

0

15

Jonsered 532189754

No Description Available
(Superseded to 183834599)

$

$

Not available

18

Jonsered 532434554

No Description Available

$

$

Not available

25

Jonsered 532189755

No Description Available
(Superseded to 183835599)

$11.99

$

Usually ships in 3-10 days

0

34

Jonsered 532196125

PLATE.ENGINE.WELDED.CHASSIS
(Superseded to 580910801)

$49.99

$

Usually ships in 3-10 days

0

36

Jonsered 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

37

Jonsered 532434551

No Description Available

$194.99

$

Usually ships in 3-10 days

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

68

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

130

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 20+

0

137

Jonsered 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 10

0

138

Jonsered 532409730

CUPHOLDER.TL.TEX.BLACK

$7.49

$

In Stock, only 1 left!

0

150

Jonsered 532184322

No Description Available
(Superseded to 583133101)

$34.99

$

Usually ships in 3-10 days

0

151

Jonsered 532407807

BRACKET PIVOT

$26.99

$

Usually ships in 3-10 days

0

152

Jonsered 532199535

SHIELD BROWNING

$

$

Not available

159

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

161

Jonsered 532404941

RP WINDOW.FUEL.LT.TEX.GREY
(Superseded to 532440029)

$9.49

$

Usually ships in 3-10 days

0

162

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

165

Jonsered 532196826

SUPPORT.TANK.REAR.W/TE

$24.99

$

Usually ships in 3-10 days

0

175

Jonsered 532193243

CROSSMEMBER.LT

$27.99

$

Usually ships in 3-10 days

0

176

Jonsered 532400776

SCREW.#10-24X5/8.RN.QU

$11.99

$

In Stock, Qty 5

0

177

Jonsered 532195228

BUSHING STEERING

$4.99

$

In Stock, Qty 18

0

180

Jonsered 532195457

CHASSIS
(Superseded to 579841501)

$

$

Not available

181

Jonsered 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Jonsered 532193057

DASH.LOWER.LT.CCS

$91.99

$

Usually ships in 3-10 days

0

183

Jonsered 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

186

Jonsered 532189753

No Description Available

$

$

Not available

189

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

194

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

196

Jonsered 532414579

CONSOLE.ASM.DECKLFT.BL/RBT.TLT

$37.99

$

In Stock, only 1 left!

0

207

Jonsered 532183833

BEZEL GRILL RH

$

$

Not available

208

Jonsered 532183832

BEZEL GRILL LH

$21.99

$

Usually ships in 3-10 days

0

213

Jonsered 874760512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

217

Jonsered 532409167

ROD.PIVOT.HOOD

$13.99

$

Usually ships in 3-10 days

0

218

Jonsered 532196395

X-PIECE.HOOD.STOP.NON/

$4.99

$

Usually ships in 3-10 days

0

228

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Jonsered 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

287

Jonsered 817600406

SCREW

$6.49

$

In Stock, Qty 5

0

303

Jonsered 532420959

No Description Available
(Superseded to 583384401)

$48.99

$

Usually ships in 3-10 days

0

304

Jonsered 532421509

No Description Available

$

$

Not available

305

Jonsered 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

306

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0
