LT-5000 (13AP60TP290) - White Outdoor 50" Lawn Tractor (2008) Engine Starting System Parts Diagram

50" Lawn Tractor

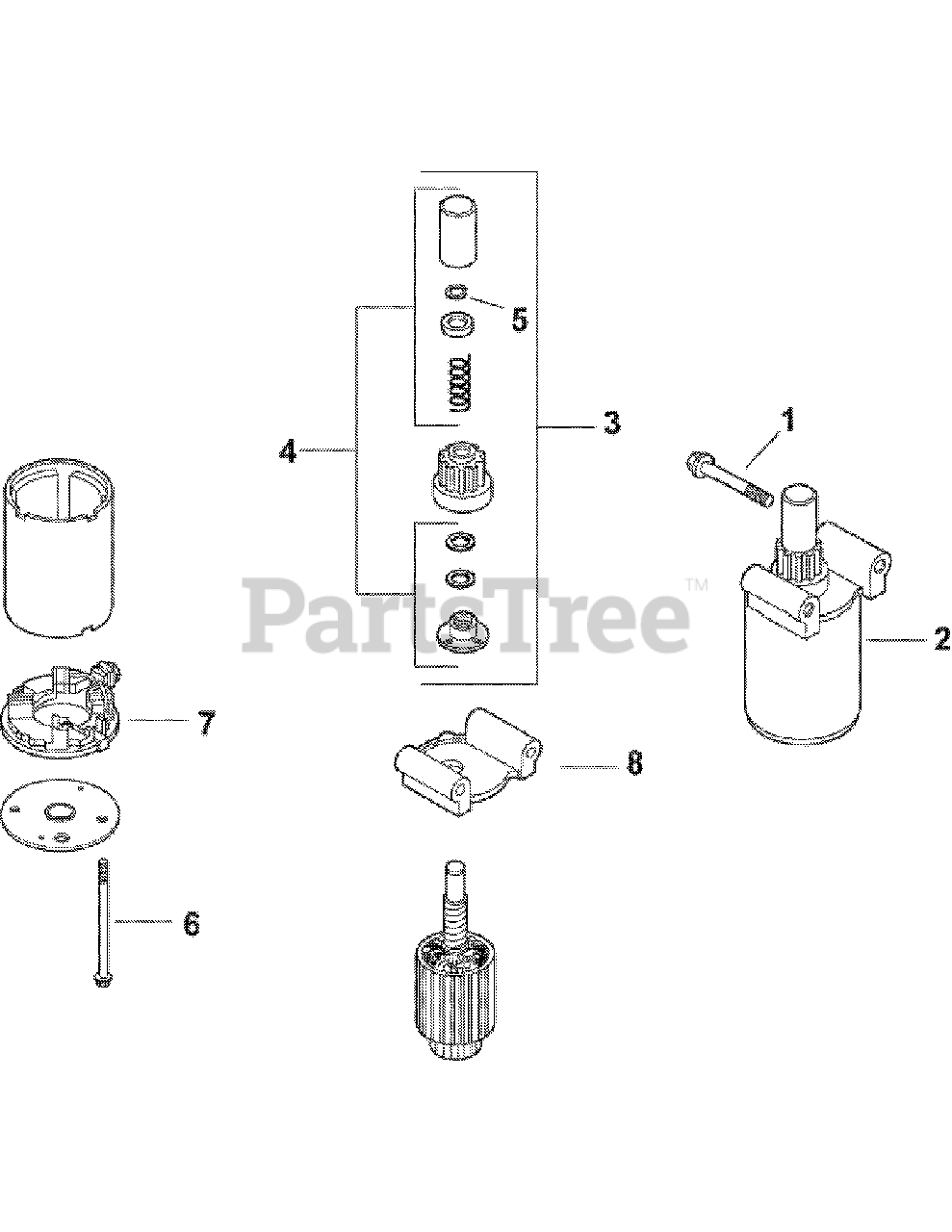

Engine Starting System Parts Diagram

  • Title

1

White Outdoor KH-M-839080

SCREW, FLG M8X1.25X80 - USE M-851080-S
(Superseded to KH-M-851080-S)

$4.49

$

In Stock, Qty 12

0

2

MTD KH-32-098-01-S

STARTER ASSEMBLY
(Superseded to KH-32-098-10-S)

Note: (Includes 3-7)

$227.99

$

In Stock, Qty 10

0

3

White Outdoor KH-12-755-39-S

KIT, DRIVE

Note: (includes 4,5)

$

$

Not available

4

White Outdoor KH-12-755-38-S

KIT, DRIVE PARTS

Note: (includes 5)

$

$

Not available

5

White Outdoor KH-32-141-01-S

RING, RETAINING

$2.99

$

In Stock, only 4 left!

0

6

White Outdoor KH-32-211-01-S

BOLT, THRU

$4.99

$

Usually ships in 2-5 days

0

7

White Outdoor KH-12-243-04-S

COMMUTATOR, END CAP

$

$

Not available

8

MTD KH-32-227-01-S

CAP, DRIVE END

$

$

Not available
