LTH 120 (954140003-B) - Husqvarna Lawn Tractor (1997-01) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

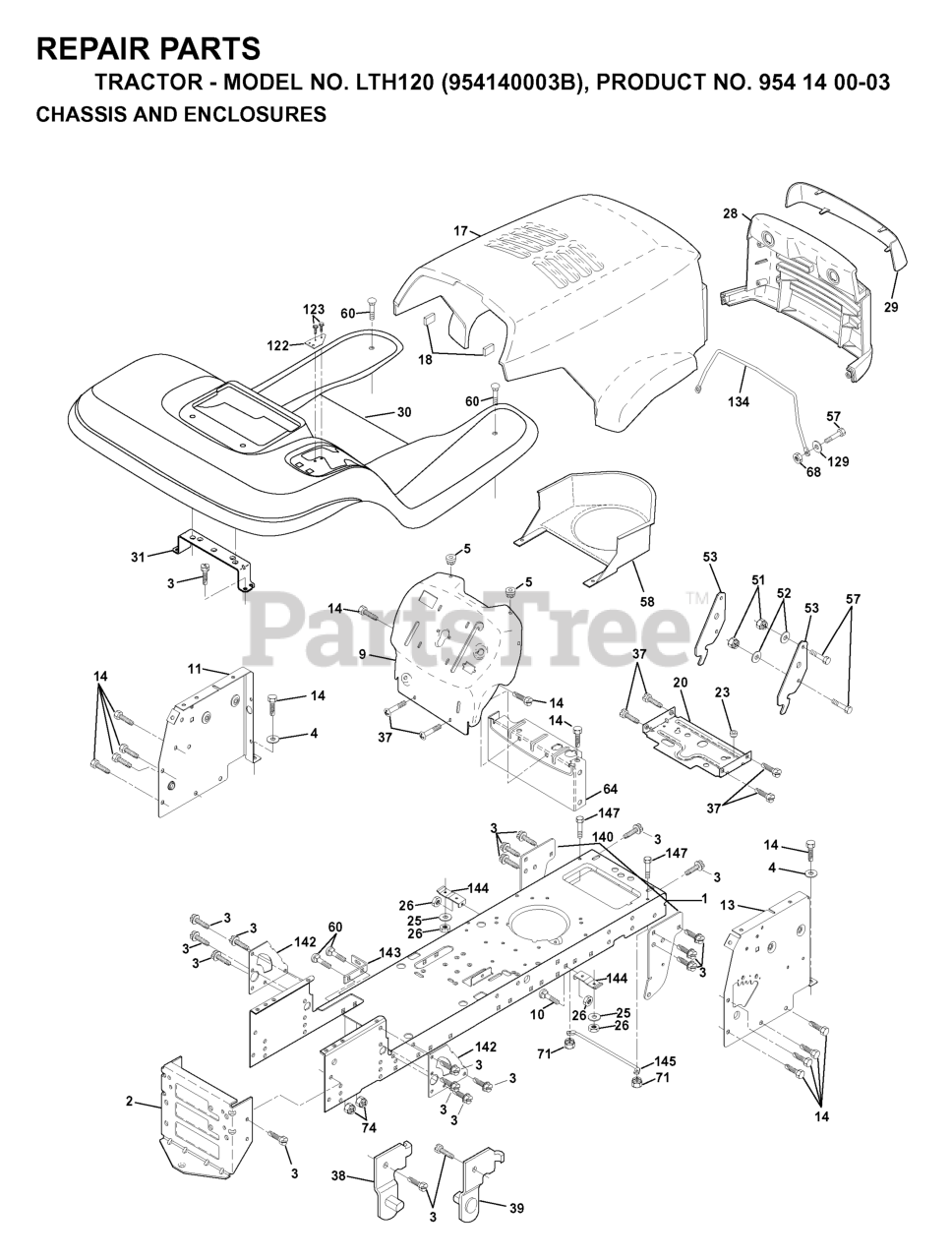

CHASSIS & ENCLOSURES Parts Diagram

  • Title

134

Husqvarna 532160219

ROD SUPPORT HOOD LT/PL HUS.

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532155927

PANEL DASH LH
(Superseded to 532174996)

$11.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532154798

DASH LOWER

$31.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532156437

PLATE MTG
(Superseded to 532180679)

$10.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532156095

PLATE REINFORCEMENT
(Superseded to 532175702)

$7.49

$

Usually ships in 3-10 days

0

74

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532156051

HOOD - LT/YT

$519.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, Qty 5

0

13

Husqvarna 532157262

PANEL DASH RH
(Superseded to 532172107)

$

$

Not available

1

Husqvarna 532159527

CHASSIS WELDMENT
(Superseded to 532160525)

$

$

Not available

122

Husqvarna 532157301

BRACKET SHIFT STLT

$

$

Not available

3

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

129

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

147

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

30

Husqvarna 532156489

FENDER FOOTREST
(Superseded to 532192813)

$

$

Not available

144

Husqvarna 532154207

BRACKET FOOTREST
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

- -

Husqvarna 532005479

PLUG BUTTON T

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 819131216

Washer 13/32 X 3/4 X 16 Ga.

$

$

Not available

60

Husqvarna 872140606

Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4

$

$

Not available

23

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$6.99

$

In Stock, only 3 left!

0

140

Husqvarna 532158418

BRACKET SUSPENSION FRONT

$

$

Not available

28

Husqvarna 532149776

GRILLE LT/PL HUSQVARNA
(Superseded to 532156880)

$

$

Not available

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

18

Husqvarna 532126938

BUMPER HOOD T

$

$

Not available

71

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532139887

BRACKET RH PIVOT

$8.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532139976

BRACKET.SUPPORT.FENDER

$10.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

AIR DUCT P/L/LT

$

$

Not available

38

Husqvarna 532139886

BRACKET LH PIVOT

$8.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532149777

LENS LT/PL HUSQVARNA

$

$

Not available

2

Husqvarna 532140356

STRETCH DRAWBAR
(Superseded to 532145009)

$

$

Not available

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

57

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532154966

BRACKET, SWAY BAR
(Superseded to 532186689)

$6.49

$

In Stock, Qty 10

0

123

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, Qty 18

0

53

Husqvarna 532150067

BRACKET PNT PICK OFF LT/PL

$

$

Not available

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

52

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0
