LTH 125 (954002721-C) - Husqvarna Lawn Tractor (1996-04) Chassis And Enclosures Parts Diagram

Lawn Tractor

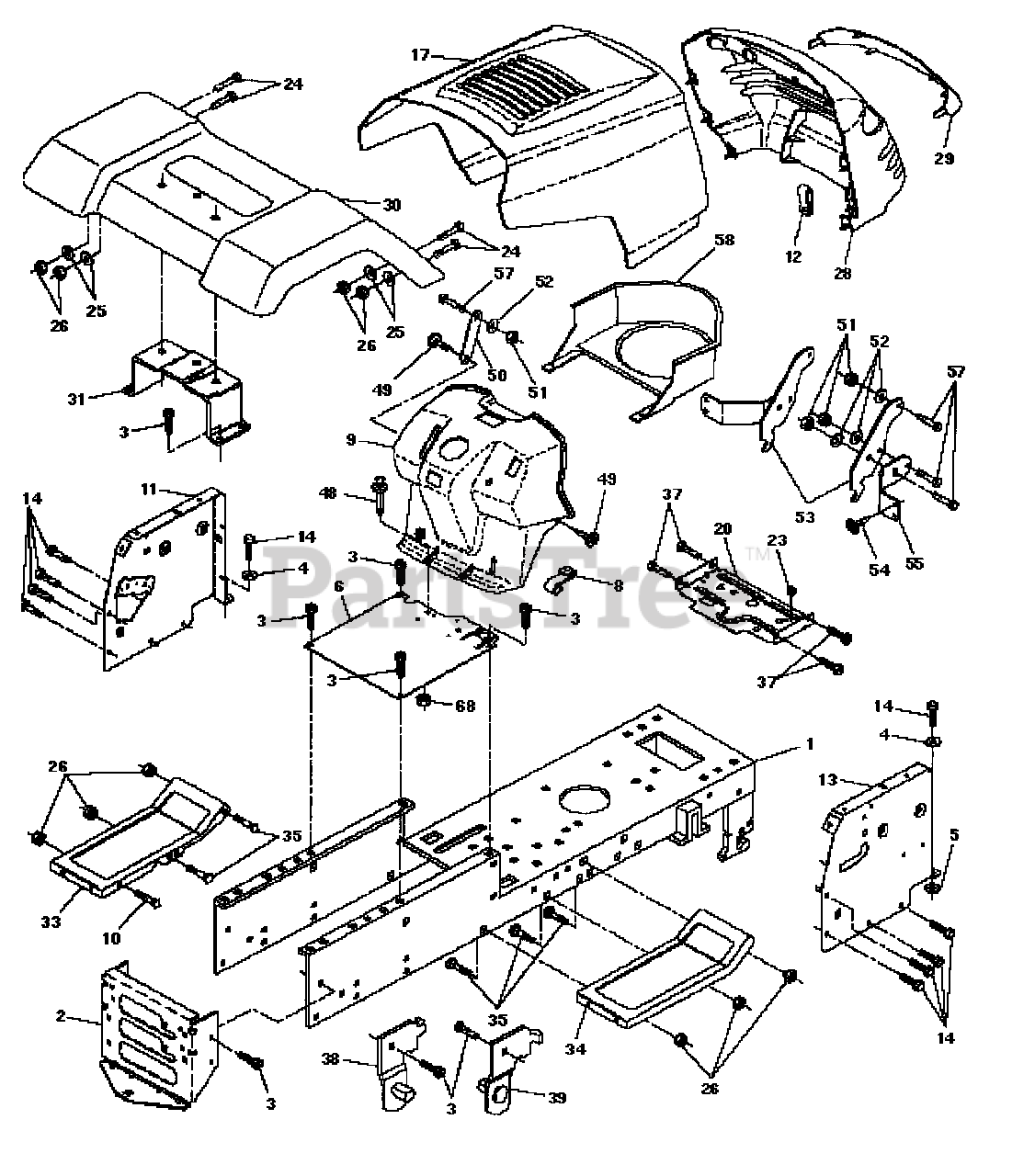

Chassis And Enclosures Parts Diagram

  • Title

Husqvarna 532005479

Plug Button

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532140341

Chassis Weldment 11ga
(Superseded to 532145501)

$

$

Not available

2

Husqvarna 532140356

Drawbar, Stretch
(Superseded to 532145009)

$

$

Not available

3

Husqvarna 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 819131216

Washer 13/32 x 3/4 x 16 Ga.

$

$

Not available

5

Husqvarna 811050600

Washer Lock Ext. Tooth 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532145206

Saddle LT Fender Shift

$

$

Not available

8

Husqvarna 532126471

Clip Insulator .406 Mtg Hole

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532140072

Dash Private Label

$

$

Not available

10

Husqvarna 872140608

Bolt Carriage 3/8-16 x 1
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

11

Husqvarna 532140311

Panel Pnt Dash Lh

$

$

Not available

12

Husqvarna 532145660

Clip Tinnerman Grille Private Label

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 532140178

Panel Dash Rh Weldment

$

$

Not available

14

Husqvarna 817490608

Screw Thdrol 3/8-16x1/2 Ty-tt

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532144320

Hood Paint Steel Private Label
(Superseded to 532139394)

$

$

Not available

20

Husqvarna 532140281

Support Battery

$

$

Not available

23

Husqvarna 532124028

Bushing

$6.99

$

In Stock, only 3 left!

0

24

Husqvarna 874780616

Bolt Fin Hex 3/8-16unc X1

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 873800600

Nut Lock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532140141

Grille Private Label
(Superseded to 532179101)

$

$

Not available

29

Husqvarna 532140273

Lens Grille Private Label

$17.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532143050

Fender Pnt
(Superseded to 532166886)

$

$

Not available

31

Husqvarna 532136619

Bracket Pnt Fender

$

$

Not available

33

Husqvarna 532124899

Footrest Pnt Lh

$

$

Not available

34

Husqvarna 532124914

Footrest Pnt Rh
(Superseded to 532145243)

$

$

Not available

35

Husqvarna 872110606

Bolt Rdhd Sht Sqnk 3/8-16 X3/4

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490512

Screw Thdrol 5/16-18 X3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532139886

Bracket, Asm. Pivot, L.H., Mower Rear

$8.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532139887

Bracket, Asm. Pivot, R.H., Mower Rear

$8.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532138096

Rivet Push

$

$

Not available

49

Husqvarna 817490412

Screw Hexwsh. Thdrol 1/4-20 x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, Qty 5

0

50

Husqvarna 532142779

Brace

$

$

Not available

51

Husqvarna 873800400

Nut Lock Hex W/Ins 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532140219

Hinge Pickoff Hood

$

$

Not available

54

Husqvarna 817030814

Screw Lock Spider #8 x 7/8
(Superseded to 532161464)

$

$

Not available

55

Husqvarna 532143007

Bracket, Grill

$

$

Not available

57

Husqvarna 874780412

Screw Hex 1/4-20 x 3/4
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532140806

Air Duct P/L
(Superseded to 532150127)

$

$

Not available

68

Husqvarna 873510400

Nut Keps Hex 1/4-20 UNC
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0
