LTH 13 (954001042-B) - Husqvarna Lawn Tractor (1995-01) Engine Parts Diagram

Lawn Tractor

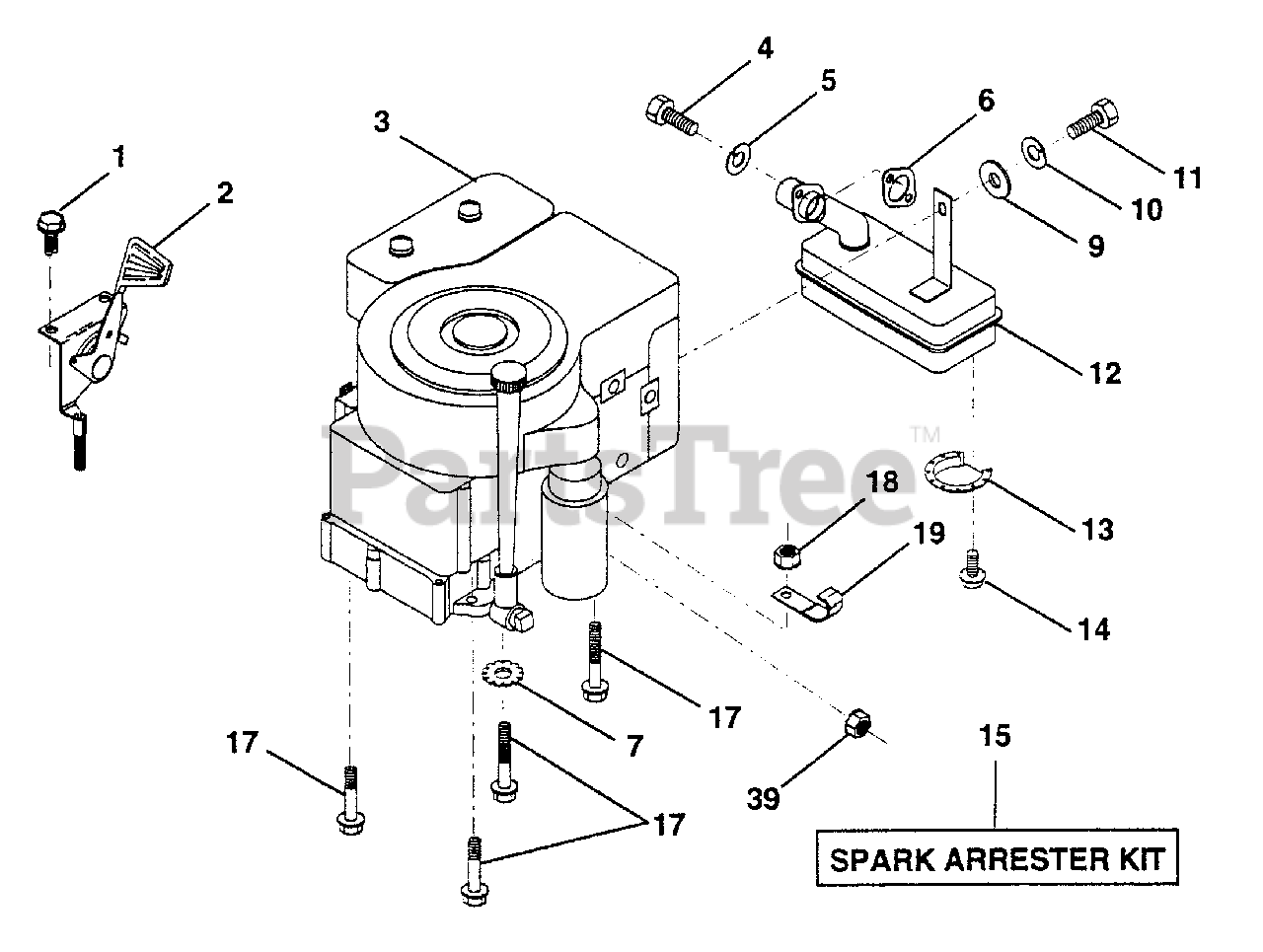

Engine Parts Diagram

  • Title

1

Husqvarna 817060408

Screw, Hex Head, Thread Cutting 1/4-20 x 1 /2

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532133025

Control, Throttle

$30.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532145301

Engine, B&S, 13 HP, Vanguard Dual Model Number 28P777

$

$

Currently unavailable

4

UNKNOWN

$

$

Not available

5

Husqvarna 810040500

Washer, Lock, Hvy Hlcl Spring 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 16

0

6

Husqvarna 532125593

Gasket Eng.
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

7

Husqvarna 811050600

Washer Lock Ext. Tooth 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

9

UNKNOWN

$

$

Not available

10

Husqvarna 810040400

Washer, Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

11

Husqvarna 817490416

Screw 1 /4-20 x 1.00 77
(Superseded to 817640416)

$

$

Not available

12

Husqvarna 532142380

Muffler

$

$

Not available

13

Husqvarna 532144986

Deflector Muffler
(Superseded to 532144987)

$

$

Not available

14

Husqvarna 817030808

Screw
(Superseded to 817030814)

$

$

Not available

15

Husqvarna 532137180

Arrester, Spark

Note: (Optional Equipment)

$182.99

$

In Stock, only 1 left!

0

16

Husqvarna 532127951

Stop Throttle 3000 RPM

$

$

Not available

17

Husqvarna 817490624

Screw Thdrol 3/8-16 x 1-1/2
(Superseded to 874930624)

$

$

Not available

18

Husqvarna 873800600

Nut, Lock Hex W/Ins. 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available

24

Husqvarna 817490620

Screw Thdrol 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

25

Husqvarna 874570512

Screw Hex SKT 5/16 UNC x 3/4

$3.99

$

In Stock, only 4 left!

0

26

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

39

Husqvarna 873510400

Nut, Keps, Hex Hd. 1/4-20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0
