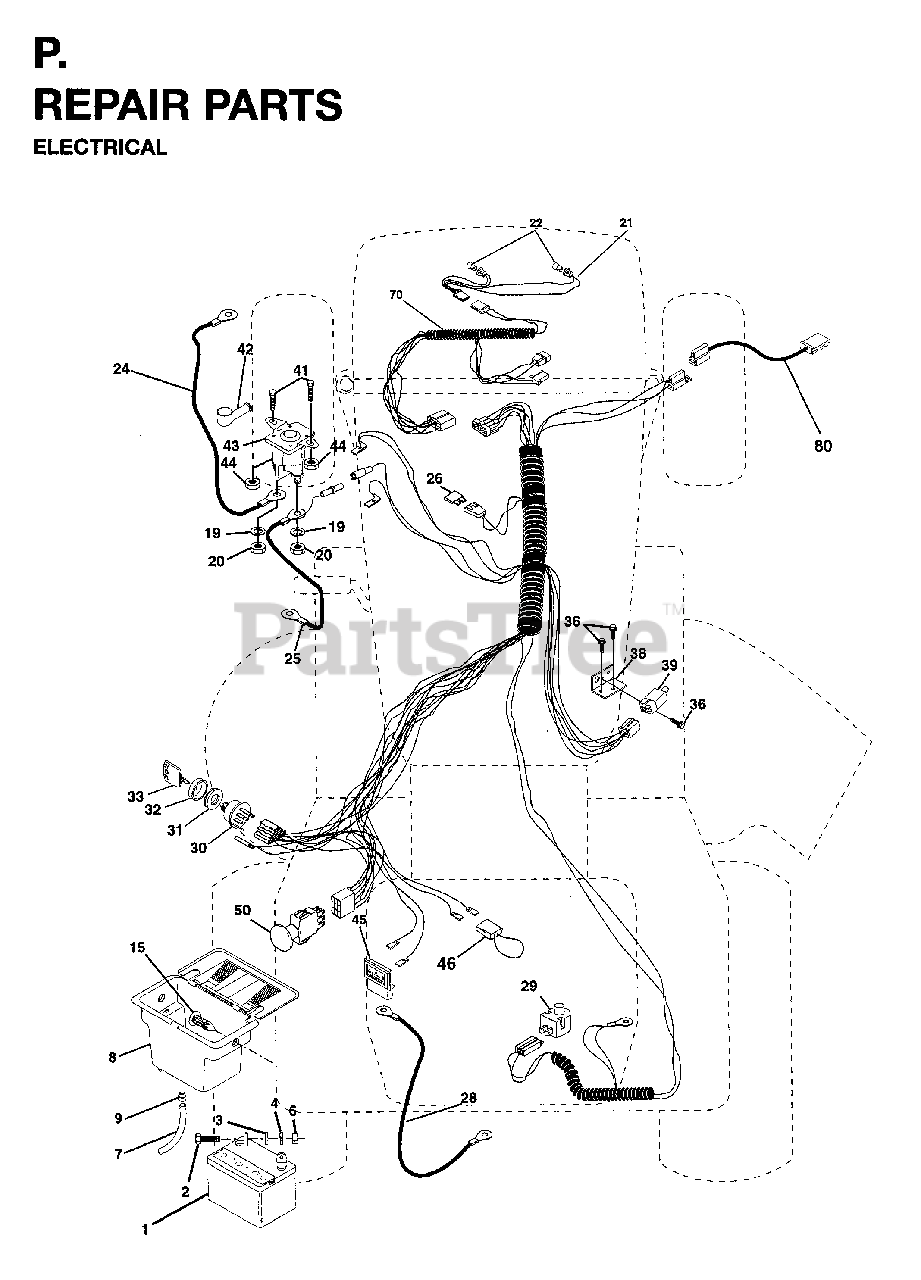

LTH 15 (954820171) - Jonsered Lawn Tractor (1996-01) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 532146139

BATTERY
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Jonsered 874760412

BOLT LT

$7.49

$

In Stock, only 1 left!

0

3

Jonsered 734115301

WASHER

$2.99

$

Usually ships in 3-10 days

0

4

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

6

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Jonsered 532109238

TUBE BATTERY DRAIN

$

$

Not available

8

Jonsered 532144940

BATTERY CASE
(Superseded to 532156417)

$

$

Not available

9

Jonsered 532109596

HOSE CLAMP T

$4.99

$

Usually ships in 3-10 days

0

15

Jonsered 532147688

FASTERER SNAP-IN

$

$

Not available

19

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

20

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

21

Jonsered 532147430

HARNESS ASM HDLIG
(Superseded to 147430)

$

$

Not available

22

Jonsered 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532004799

BATTERY CABLE

$10.99

$

Usually ships in 3-10 days

0

25

Jonsered 532146147

CABLE BATTERY

$34.99

$

Usually ships in 3-10 days

0

26

Jonsered 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

28

Jonsered 532124773

CABLE T
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

29

Jonsered 532121305

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

30

Jonsered 532140301

SWITCH.IGNITION.4.POSITION

$37.99

$

In Stock, only 1 left!

0

31

Jonsered 532124211

NUT IGNITION

$5.99

$

In Stock, only 1 left!

0

32

Jonsered 532141226

COVER SWITCH KEY

$5.99

$

Usually ships in 3-10 days

0

33

Jonsered 516844600

KEY SET
(Superseded to 516844602)

$

$

Not available

36

Jonsered 817021008

SCREW

$4.99

$

In Stock, Qty 16

0

38

Jonsered 532140336

SWITCH BRACKET

$

$

Not available

39

Jonsered 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

40

Jonsered 532151215

HARNESS IGN ELEC P/L

$

$

Not available

41

Jonsered 874780408

BOLT
(Superseded to 74780408)

$1.49

$

Usually ships in 3-10 days

0

42

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Jonsered 532146154

KIT SOLENOID .95

$24.99

$

In Stock, only 3 left!

0

44

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

45

Jonsered 532121433

No Description Available
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

50

Jonsered 532140404

SWITCH-PTO
(Superseded to 532154959)

$28.99

$

In Stock, Qty 9

0

52

Jonsered 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

70

Jonsered 532141164

HARNESS ENGINE

$

$

Not available

80

Jonsered 532146685

HARNESS, CLUTCH

$26.99

$

In Stock, only 2 left!

0
