LTH 151 (960410019-06) - Husqvarna Lawn Tractor (2009-01) ENGINE Parts Diagram

Lawn Tractor

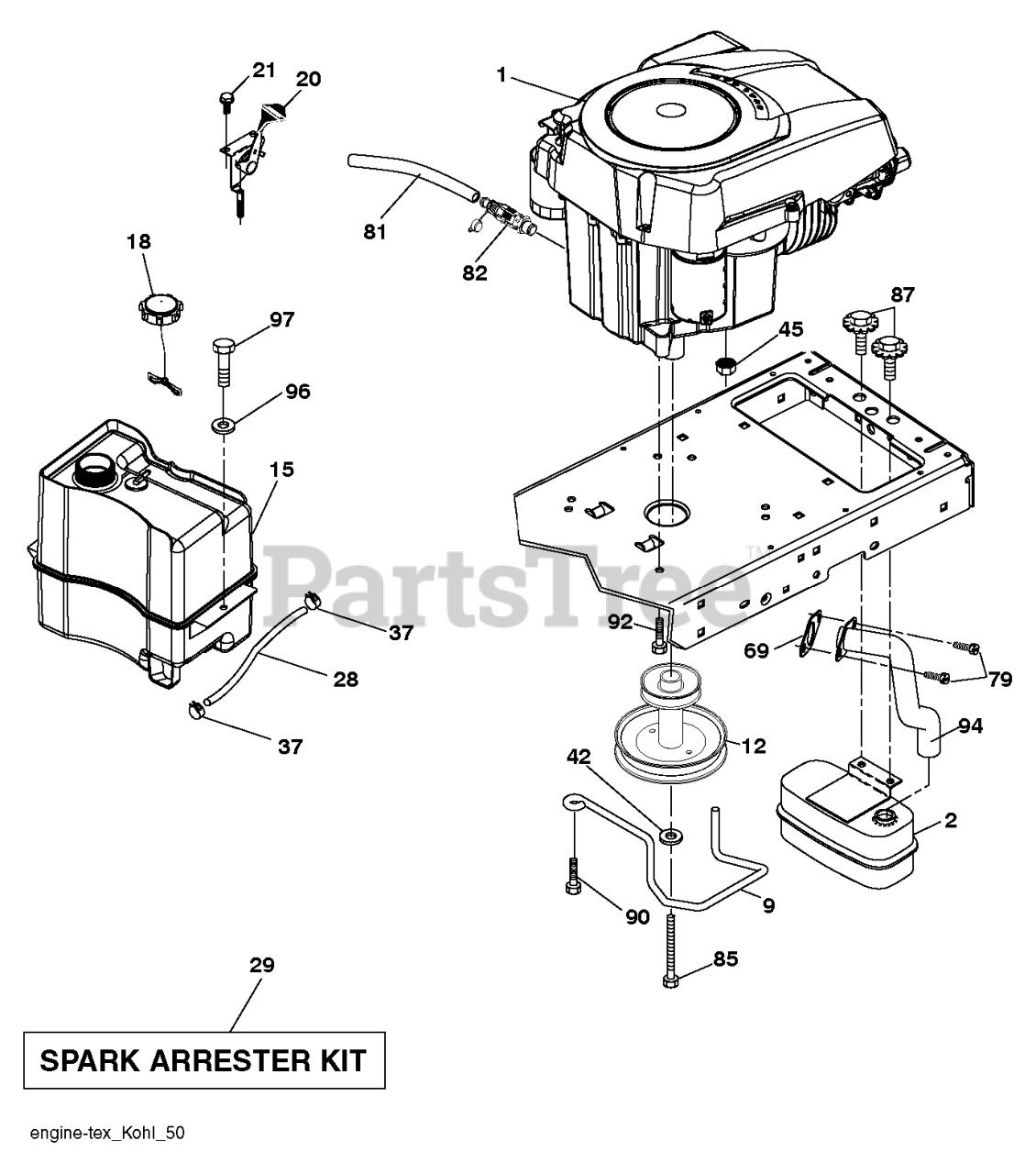

ENGINE Parts Diagram

  • Title

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

18

Husqvarna 532197725

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 5

0

96

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532422739

NEEDS DESCRIPTION

Note: Engine Kohler Model No. SV470

$

$

Currently unavailable

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

2

Husqvarna 580532301

MUFFLER.SINGLE.LRG.BRIGGS.KOHL
(Superseded to 532188655)

$44.99

$

In Stock, Qty 20+

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$7.49

$

In Stock, Qty 11

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$37.99

$

In Stock, only 2 left!

0

12

Husqvarna 586729001

PULLEY.ENGINE

$40.99

$

In Stock, Qty 8

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 13

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 18

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 6

0

9

Husqvarna 584911602

KEEPER.BELT.ENGINE
(Superseded to 532194319)

$12.99

$

In Stock, only 2 left!

0

69

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

$87.99

$

In Stock, Qty 7

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

94

Husqvarna 583955301

TUBE.EXHAUST.KOHLER.COURAGE

$34.99

$

In Stock, Qty 11

0
