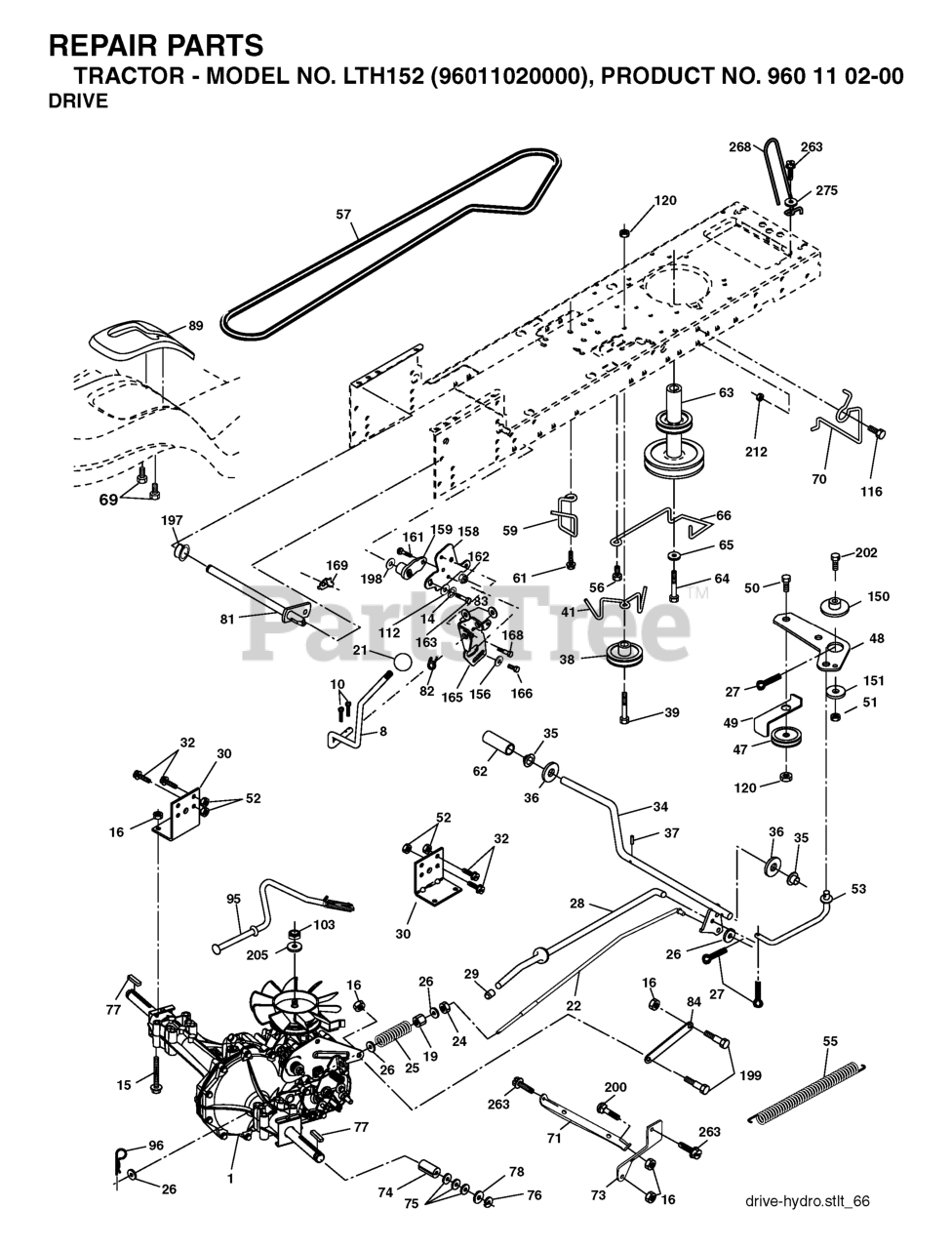

LTH 152 (960110200-00) - Husqvarna Lawn Tractor (2006-03) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532179114

PULLEY IDLER COMPOSITE

$31.99

$

In Stock, Qty 20+

0

150

Husqvarna 532175456

SPACER, RETAINER

$

$

Not available

165

Husqvarna 532165623

RP BRACKET
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532169182

STRAP TORQUE RH HYDRO

$10.99

$

In Stock, only 1 left!

0

205

Husqvarna 819171616

WASHER
(Superseded to 734117801)

$

$

Not available

28

Husqvarna 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

8

Husqvarna 532192502

ROD.SHIFT.FENDER.ADJ.STLT

$24.99

$

Usually ships in 3-10 days

0

10

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

168

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$6.49

$

In Stock, only 3 left!

0

103

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, Qty 11

0

161

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

55

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

158

Husqvarna 532165589

BRACKET
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

198

Husqvarna 532169593

WASHER.NYL.7/8IDX.105"HYD CR

$7.49

$

Usually ships in 3-10 days

0

75

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532175556

KEEPER, BELT IDLER

$9.99

$

In Stock, only 1 left!

0

166

Husqvarna 817490510

CAPSCREW.HXHD.FLG.5/16-18X.625

$4.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532199652

LINK.CLUTCH.7.66.2005

$13.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817120614

SCREW 3/8-16X.875
(Superseded to 817490614)

$

$

Not available

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$34.99

$

In Stock, only 4 left!

0

66

Husqvarna 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 7

0

84

Husqvarna 532169843

LINK TRANSAXLE

$5.99

$

In Stock, only 1 left!

0

162

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

57

Husqvarna 532140294

DRIVE BELT, LTH & YTH TRACTORS

$36.99

$

In Stock, Qty 20+

0

56

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

63

Husqvarna 532180219

NEEDS DESCRIPTION

$

$

Not available

212

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

163

Husqvarna 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

263

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532165711

SHIFT SPRING

$7.49

$

In Stock, Qty 8

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$6.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

116

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

36

Husqvarna 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532169691

KEEPER, BELT CENTER

$26.99

$

Usually ships in 3-10 days

0

76

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 17

0

71

Husqvarna 532169183

STRAP TORQUE LH HYDRO

$7.49

$

Usually ships in 3-10 days

0

200

Husqvarna 872140508

BOLT

$2.99

$

Usually ships in 3-10 days

0

275

Husqvarna 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 872110622

BOLT

$3.99

$

In Stock, only 1 left!

0

78

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

197

Husqvarna 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

62

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 16

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$8.99

$

In Stock, only 1 left!

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532180218

NEEDS DESCRIPTION

$

$

Not available

30

Husqvarna 532174973

BRKT, MOUNT TRNSAXLE
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

202

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

268

Husqvarna 532182402

GUARD MUFFLER
(Superseded to 583122001)

$7.49

$

Usually ships in 3-10 days

0

112

Husqvarna 819091210

WASHER LT

$6.99

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

64

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

15

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532194810

CONSOLE, SHIFT, STL, AUTO GREY
(Superseded to 532192387)

$8.99

$

Usually ships in 3-10 days

0

169

Husqvarna 532165580

PLATE.FASTENING.CROSS.SHAFT

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$8.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

69

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532169498

ROD BRAKE HYDRO

$14.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532175578

SHAFT, FOOT PEDAL

$30.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, Qty 6

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

29

Husqvarna 532071673

PLUNGER CAP

$4.99

$

In Stock, only 1 left!

0

95

Husqvarna 532170201

CONTROL ASM. BYPASS HYDRO

$12.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$3.99

$

In Stock, Qty 11

0

156

Husqvarna 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

159

Husqvarna 532183900

RB HUB.SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532165596

SHAFT ASM CROSS TAPERED

$40.99

$

Usually ships in 3-10 days

0

120

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0
