LTH 1538 (960430038-02) - Husqvarna 38" Lawn Tractor (2008-04) Engine Parts Diagram

38" Lawn Tractor

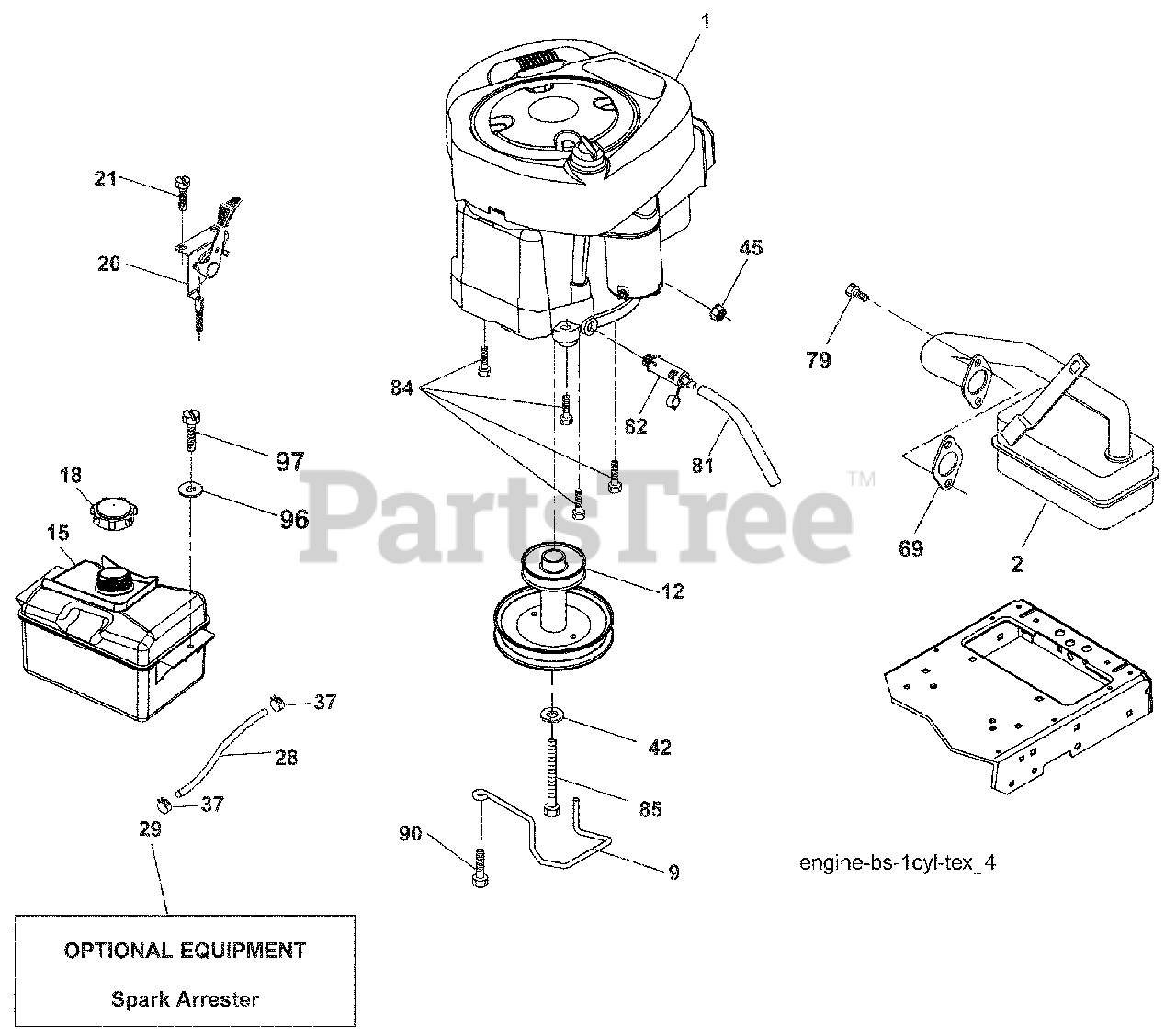

Engine Parts Diagram

  • Title

1

Husqvarna 532137352

Engine Briggs Model No. 31E677

$44.99

$

In Stock, only 3 left!

0

2

Husqvarna 532194319

Muffler

$12.99

$

In Stock, only 2 left!

0

9

Husqvarna 532401985

Keeper Belt Engine
(Superseded to 586729001)

$40.99

$

In Stock, Qty 8

0

12

Husqvarna 532407545

Pulley Engine
(Superseded to 581289901)

$87.99

$

In Stock, Qty 7

0

15

Husqvarna 532197725

Tank Fuel
(Superseded to 581075501)

$26.99

$

In Stock, Qty 6

0

18

Husqvarna 532183897

Cap Asm
(Superseded to 532176636)

$37.99

$

In Stock, only 2 left!

0

20

Husqvarna 532416358

Control Throttle

$

$

Not available

21

Husqvarna 532401137

Screw #10 x 0.750 BOS Thread
(Superseded to 587044822)

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532137180

Fuel Line

$182.99

$

In Stock, only 1 left!

0

29

Husqvarna 532123487

Spark Arrester Kit

$7.49

$

In Stock, Qty 16

0

37

Husqvarna 810040700

Clamp Hose
(Superseded to 539990247)

$

$

Not available

42

Husqvarna 873510400

Washer Lock 7/16
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 532165291

Nut Keps Hex 1/4-20 unc
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532192334

Gasket
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

79

Husqvarna 532148456

Screw 5/16-18 x 3/4

$4.99

$

In Stock, Qty 18

0

81

Husqvarna 532181654

Tube Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, Qty 13

0

82

Husqvarna 817060620

Plug Drain Oil

$7.49

$

In Stock, Qty 20+

0

84

Husqvarna 532173937

Screw 3/8-16 x 1/4
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

85

Husqvarna 817000616

Bolt Hex 7/16-20 x 4 Gr. 5

$7.49

$

In Stock, Qty 6

0

90

Husqvarna 819091416

Screw 3/8-16 x 1

$6.49

$

Usually ships in 3-10 days

0

96

Husqvarna 817670412

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

In Stock, only 2 left!

0

97

Husqvarna 532137352

Screw 1/4-20 x 3/4

$44.99

$

In Stock, only 3 left!

0
