LTH 1742 (954570376-D) - Husqvarna 42" Lawn Tractor (2003-05) Steering Assembly Parts Diagram

42" Lawn Tractor

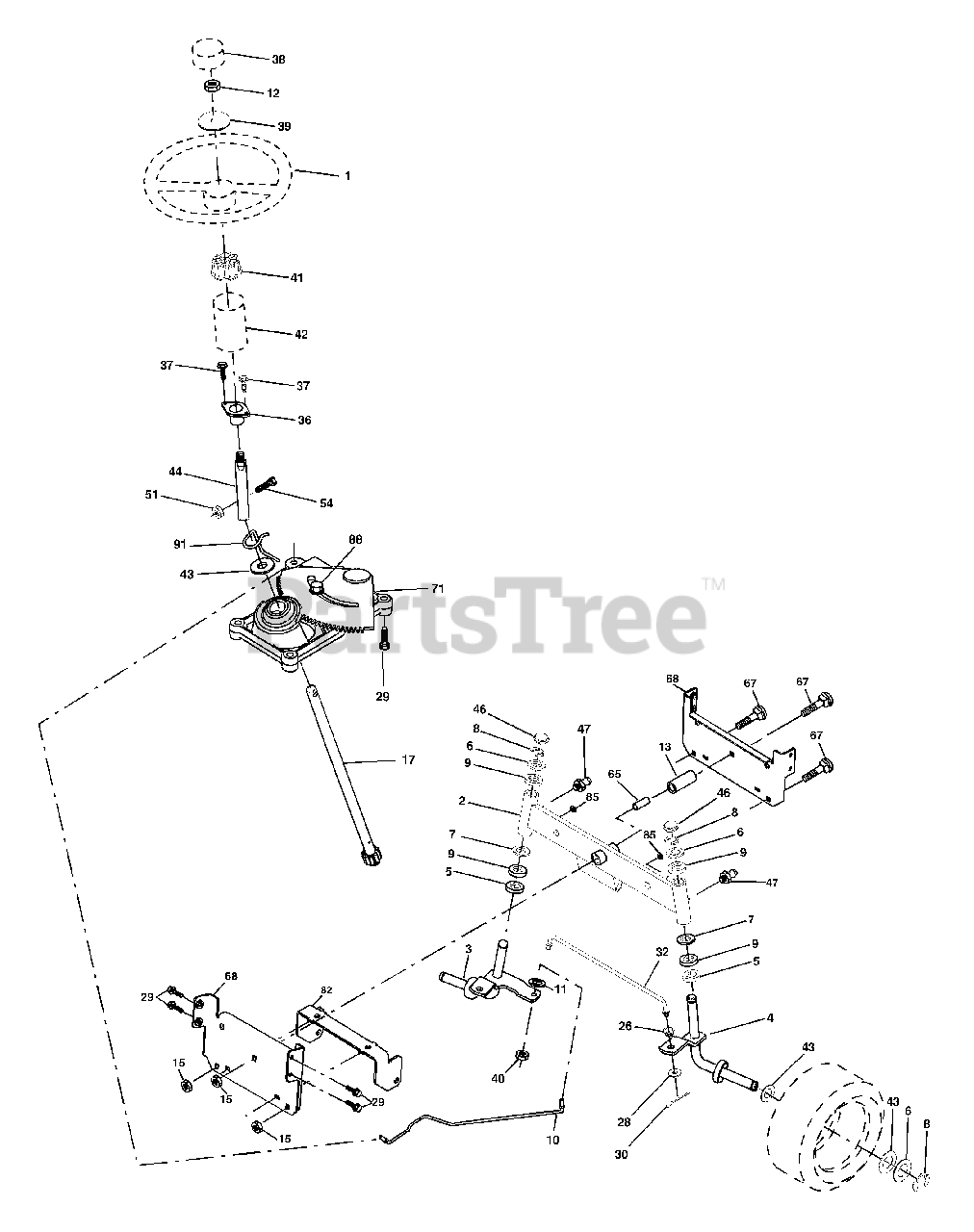

Steering Assembly Parts Diagram

  • Title

1

Husqvarna 532185437

Wheel Steering
(Superseded to 532184704)

$47.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532175131

Axle Asm
(Superseded to 532195673)

$47.99

$

In Stock, Qty 20+

0

3

Husqvarna 532169840

Spindle Asm LH
(Superseded to 596873901)

$18.99

$

In Stock, only 4 left!

0

4

Husqvarna 532169839

Spindle Asm RH
(Superseded to 596873801)

$17.99

$

In Stock, Qty 11

0

5

Husqvarna 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

6

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 819272016

Washer 27/32 x 1-1/4 x 16 Ga

$6.49

$

In Stock, only 4 left!

0

8

Husqvarna 812000029

Ring Klip #t5304-75

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532124937

Bearing Col Strg Blk
(Superseded to 532003366)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 532175121

Link Drag

$67.99

$

In Stock, Qty 20+

0

11

Husqvarna 810040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 873940800

Nut Hex Jam Toplock 1/2-20 Unf

$7.49

$

In Stock, Qty 11

0

13

Husqvarna 532136518

Spacer Brg Axle Front

$9.99

$

In Stock, only 3 left!

0

15

Husqvarna 532145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532180641

Shaft Asm Strg
(Superseded to 532407600)

$

$

Not available

26

Husqvarna 532126847

Bushing Link Drag Blk LR

$4.99

$

In Stock, Qty 14

0

28

Husqvarna 819131416

Washer 13/32 x 7/8 x 16 Ga
(Superseded to 819131414)

$6.49

$

In Stock, only 4 left!

0

29

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 876020412

Pin Cotter 1/8 x 3/4 Cad
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

32

Husqvarna 532130465

Rod Tie Wire Form 19 75 Mech
(Superseded to 532192757)

$34.99

$

In Stock, only 4 left!

0

36

Husqvarna 532155099

Bushing Strg
(Superseded to 532155106)

$9.99

$

In Stock, Qty 20+

0

37

Husqvarna 532152927

Screw

$7.49

$

In Stock, Qty 19

0

38

Husqvarna 532166626

Cap Wheel Steering

$7.99

$

Usually ships in 3-10 days

0

39

Husqvarna 819182411

Washer 9/16 x 1-1/2 11 Ga.

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532124701

Lock nut
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532159945

Adaptor Wheel Strg

$

$

Not available

42

Husqvarna 532169634

Boot Steering Shaft
(Superseded to 532145054)

$6.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532121749

Washer 25/32 x 1 1/4 x 16 Ga

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 532180640

Extension Steering Shaft LR/LT
(Superseded to 532407600)

$

$

Not available

46

Husqvarna 532121232

Cap Spindle Fr Top Blk

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 532183226

Fitting Grease

$7.49

$

In Stock, only 3 left!

0

51

Husqvarna 873540400

Nut Crownlock 1/4-28

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 871130420

Bolt Hex 1/4-28 Unf x 1-1/4 Gr. 8

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532160367

Spacer Brace Axle
(Superseded to 532414736)

$6.49

$

In Stock, Qty 11

0

67

Husqvarna 872110618

Bolt Rdhd Sq 3/8-16 x 2-1/4

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532169827

Axle, Brace

$21.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532175146

Steering Asm

$182.99

$

In Stock, only 3 left!

0

82

Husqvarna 532169835

Bracket Susp Chassis Front
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532133835

Fastner Christmas Tree

$7.49

$

Usually ships in 3-10 days

0

88

Husqvarna 532175118

Bolt Shoulder 7/16-20

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532175553

Clip Steering

$13.99

$

In Stock, only 2 left!

0

Husqvarna 817490608

Screw 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0
