LTH 17538 (960430298-00) - Husqvarna 38" Lawn Tractor (2018-08) CHASSIS / FRAME Parts Diagram

38" Lawn Tractor

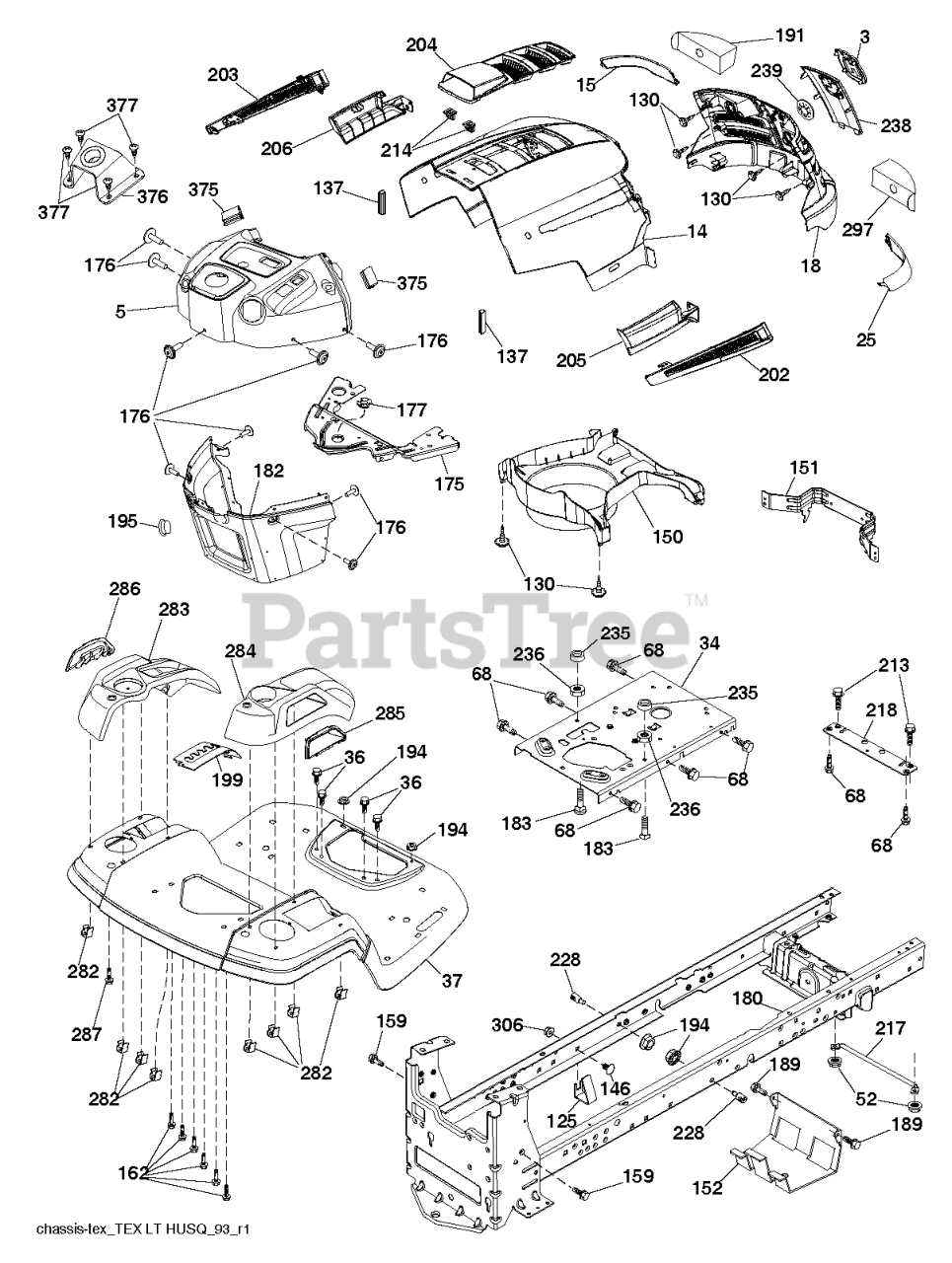

CHASSIS / FRAME Parts Diagram

  • Title

152

Husqvarna 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

238

Husqvarna 532441374

TRIM.HUSQ LT.668
(Superseded to 532407881)

$20.99

$

Usually ships in 3-10 days

0

297

Husqvarna 532406665

INSERT REFLECTIVE

Note: LH

$9.99

$

Usually ships in 3-10 days

0

213

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

$3.99

$

In Stock, Qty 20+

0

282

Husqvarna 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 20+

0

175

Husqvarna 532199472

CROSSMEMBER

$9.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532441427

LENS.HUSQVARNA LT.RH
(Superseded to 532406663)

Note: RH

$24.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532441428

LENS.HUSQVARNA LT.RH
(Superseded to 532406664)

Note: LH

$24.99

$

Usually ships in 3-10 days

0

376

Husqvarna 589458701

MOUNT.ASM.HUSLT.UPPER.STRNG
(Superseded to 589458401)

$20.99

$

Usually ships in 3-10 days

0

162

Husqvarna 596134101

Screws

$3.99

$

In Stock, only 3 left!

0

286

Husqvarna 532416317

CONSOLE.INSRT.LH.HUSQ.LT.BLACK

$9.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532407807

BRACKET PIVOT

$26.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532413485

PLATE.DECK.LIFT.HUSQ.LT

$11.99

$

In Stock, only 4 left!

0

182

Husqvarna 532407176

DASH.LOWER.PREDATOR LT

$66.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532195457

CHASSIS
(Superseded to 579841501)

$

$

Not available

203

Husqvarna 532441343

VENT.SIDE.HUSQVARNA.LT.LFT
(Superseded to 532406671)

Note: LH

$8.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532441342

VENT.SIDE.HUSQVARNA.LT.RT

Note: RH

$8.99

$

Usually ships in 3-10 days

0

68

Husqvarna 596030701

Screws

$3.99

$

In Stock, only 2 left!

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 532438964

SUBASM.DASH.UPPER.W/BUMPER

$78.99

$

Usually ships in 3-10 days

0

194

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

177

Husqvarna 532195228

BUSHING STEERING

$4.99

$

In Stock, Qty 18

0

283

Husqvarna 532442039

CONSOLE.ASM.LFT.RSF.HUSQ.LT
(Superseded to 532439151)

$60.99

$

Usually ships in 3-10 days

0

146

Husqvarna 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532439421

ASM.GRILLE HUSQVARNA.LT.498

$157.99

$

Usually ships in 3-10 days

0

130

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 20+

0

235

Husqvarna 596564201

Spacers

$2.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532441267

HOOD.HUSQVARNA.LT.ORANGE

$84.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532441266

FENDER.TLT.FS.W/CUPHLD.ORANGE

$182.99

$

Usually ships in 3-10 days

0

125

Husqvarna 581684801

CLIP.FUEL.LINE

$3.99

$

Usually ships in 3-10 days

0

228

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$3.99

$

In Stock, Qty 20+

0

204

Husqvarna 532441375

SUBASM.TOP.VENT.HUSQ.LT

$30.99

$

Usually ships in 3-10 days

0

375

Husqvarna 586908201

BUMPER CLIP-ON. DASH 1"

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 581056301

LOGO.HUSQ.GT.LT.CROWN.H
(Superseded to 532430771)

$8.99

$

In Stock, only 1 left!

0

285

Husqvarna 532416315

CONSOLE INSERT RH

$14.99

$

In Stock, only 1 left!

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

Usually ships in 3-10 days

0

284

Husqvarna 532444164

CONSOLE CONSOLE.HUSQ.SHIFT.HYD
(Superseded to 583746501)

$24.99

$

Usually ships in 3-10 days

0

377

Husqvarna 589455301

SCREW 10 X 1/2 ZN PL PHIL PAN

$3.49

$

Usually ships in 3-10 days

0

150

Husqvarna 532406662

AIR DUCT

$30.99

$

Usually ships in 3-10 days

0

52

Husqvarna 596040501

Hardware

$3.99

$

In Stock, Qty 20+

0

306

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

206

Husqvarna 532441345

SKIRT.SIDE.HUSQVARNA.LT.LEFT

Note: LH

$9.99

$

Usually ships in 3-10 days

0

239

Husqvarna 532404883

IS ITO

$15.99

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, Qty 5

0

205

Husqvarna 532441344

SKIRT.SIDE.HUSQVARNA.LT.RT

Note: RH

$9.99

$

Usually ships in 3-10 days

0

34

Husqvarna 580910801

PLATE.ENGINE.WELDED.CHASSIS

$49.99

$

Usually ships in 3-10 days

0

191

Husqvarna 532416501

INSERT.REFLECTIVE.RH.
(Superseded to 583358401)

$15.99

$

Usually ships in 3-10 days

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 9

0

195

Husqvarna 532439976

PLUG.TEX.DASH.SVC.MINDER.GREY

$6.49

$

Usually ships in 3-10 days

0

183

Husqvarna 595305701

Screws

$3.99

$

In Stock, only 4 left!

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$11.99

$

In Stock, Qty 5
