LTH 18 - Jonsered Lawn Tractor (1998-02) ELECTRICAL Parts Diagram

Lawn Tractor

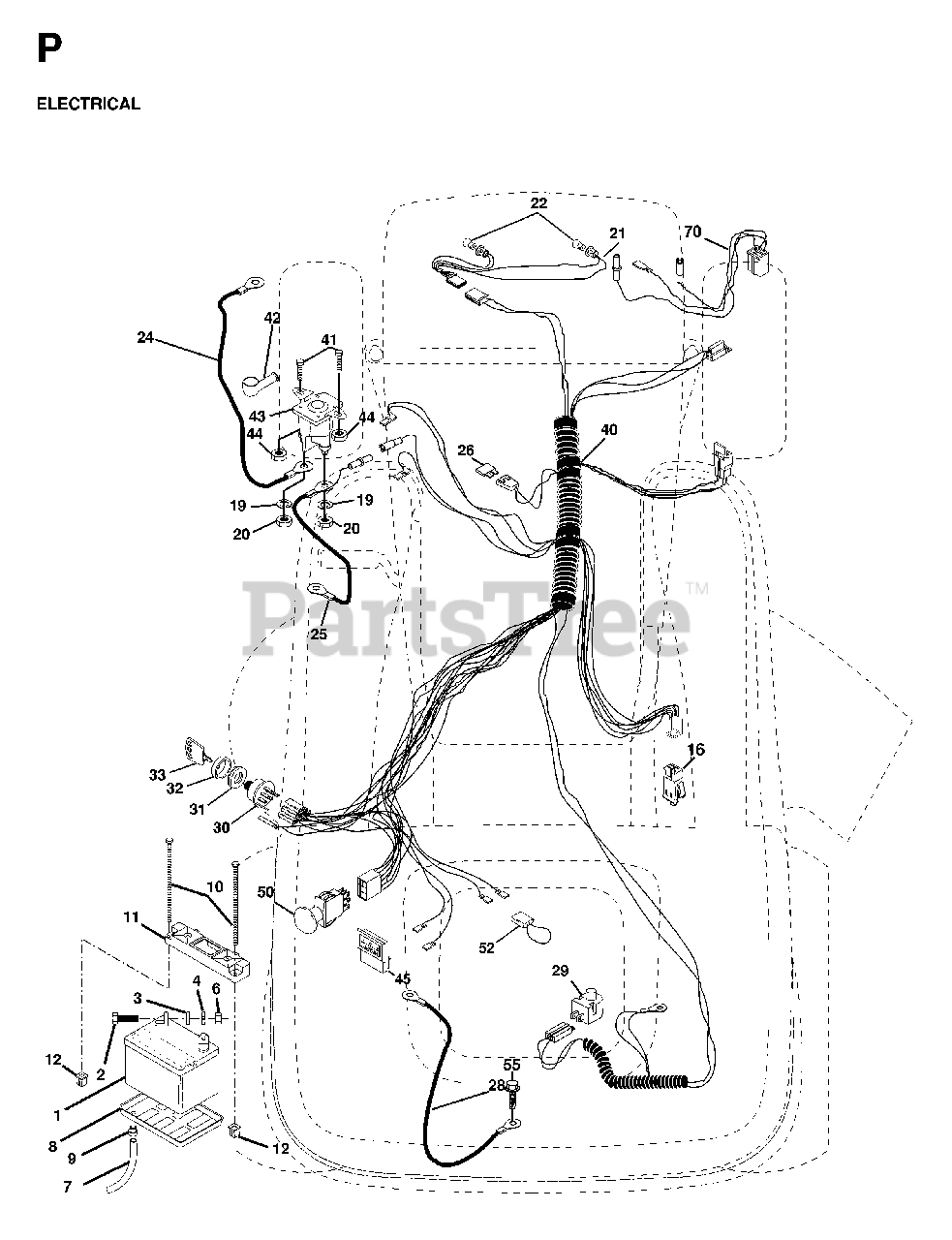

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 532123899

BATTERY.DRY.30.AMP

$194.99

$

Usually ships in 3-10 days

0

2

Jonsered 874760412

BOLT LT

$7.49

$

In Stock, Qty 5

0

3

Jonsered 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, Qty 11

0

4

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

6

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Jonsered 532007697

PLASTIC TUBE

$

$

Not available

8

Jonsered 532124886

BATTERY TRAY T
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 532109596

HOSE CLAMP T

$4.99

$

Usually ships in 3-10 days

0

10

Jonsered 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

11

Jonsered 532150109

BATTERY HOLDDOWN

$

$

Not available

12

Jonsered 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

16

Jonsered 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$15.99

$

In Stock, Qty 20+

0

19

Jonsered 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

20

Jonsered 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Jonsered 532147430

HARNESS ASM HDLIG
(Superseded to 147430)

$

$

Not available

22

Jonsered 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 15

0

24

Jonsered 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

25

Jonsered 532146148

CABLE BATTERY 6 GA 22" W/16W

$18.99

$

Usually ships in 3-10 days

0

26

Jonsered 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

28

Jonsered 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

Usually ships in 3-10 days

0

29

Jonsered 532121305

SWITCH SEAT
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

30

Jonsered 532140301

SWITCH.IGNITION.4.POSITION

$37.99

$

In Stock, only 1 left!

0

31

Jonsered 532124211

NUT IGNITION

$4.99

$

Usually ships in 3-10 days

0

32

Jonsered 532141226

COVER SWITCH KEY

$4.99

$

Usually ships in 3-10 days

0

33

Jonsered 532122147

KEY

$

$

Not available

40

Jonsered 532156443

IGN HARNESS

$

$

Not available

41

Jonsered 871110408

No Description Available
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

42

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Jonsered 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

44

Jonsered 873640400

NUT

$

$

Not available

45

Jonsered 532122822

AMMETER

$18.99

$

In Stock, only 1 left!

0

50

Jonsered 532154959

SWITCH PTO 3 PDT
(Superseded to 532169417)

$13.99

$

In Stock, Qty 20+

0

52

Jonsered 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

55

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

70

Jonsered 532140424

No Description Available

$

$

Not available
