LTH 1842 (960410048-00) - Husqvarna 42" Lawn Tractor (2006) ENGINE Parts Diagram

42" Lawn Tractor

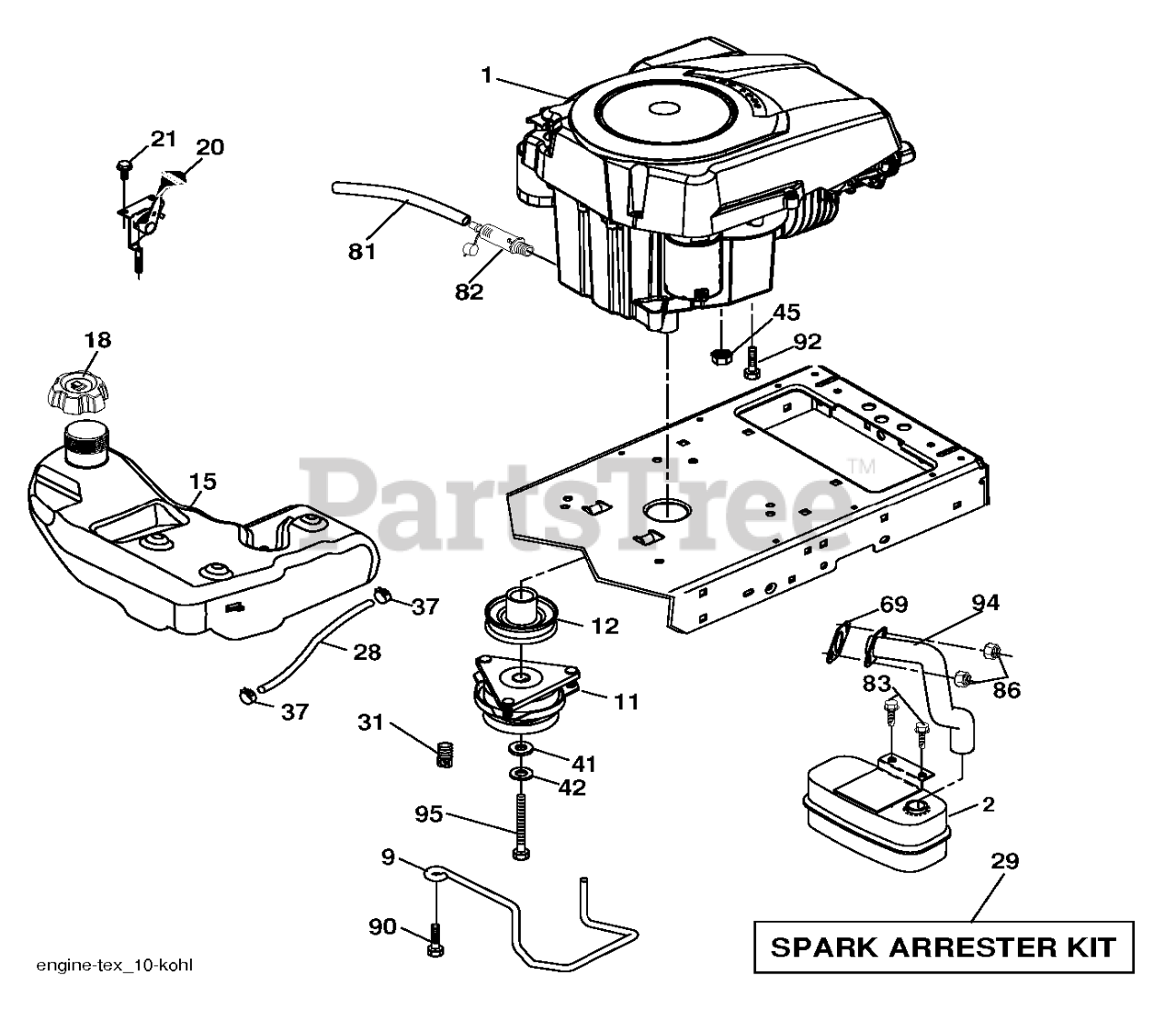

ENGINE Parts Diagram

  • Title

9

Husqvarna 532194319

KEEPER.BELT.ENGINE.3.25 (3 2)

$12.99

$

In Stock, only 2 left!

0

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$17.99

$

In Stock, only 1 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532194338

PULLEY.ASM.ENG.OGURA.3

$

$

Not available

82

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, Qty 13

0

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$37.99

$

In Stock, only 2 left!

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532180505

RB.CLUTCH.OGURA.4.4.PD
(Superseded to 583389701)

$399.99

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 532400021

TANK.FUEL.SIDE-FILL.3.NON-EPA
(Superseded to 532442448)

$206.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

18

Husqvarna 532194267

CAP.FUEL.TANK.3"GREY
(Superseded to 584248702)

$12.99

$

In Stock, Qty 5

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 18

0

95

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$44.99

$

In Stock, Qty 20+

0

94

Husqvarna 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$34.99

$

In Stock, Qty 11

0

83

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

69

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532145006

PUSH CLIP

$6.49

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 8

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

21

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

1

000000000

Note: Kohler Model SV540

$

$

Not available
