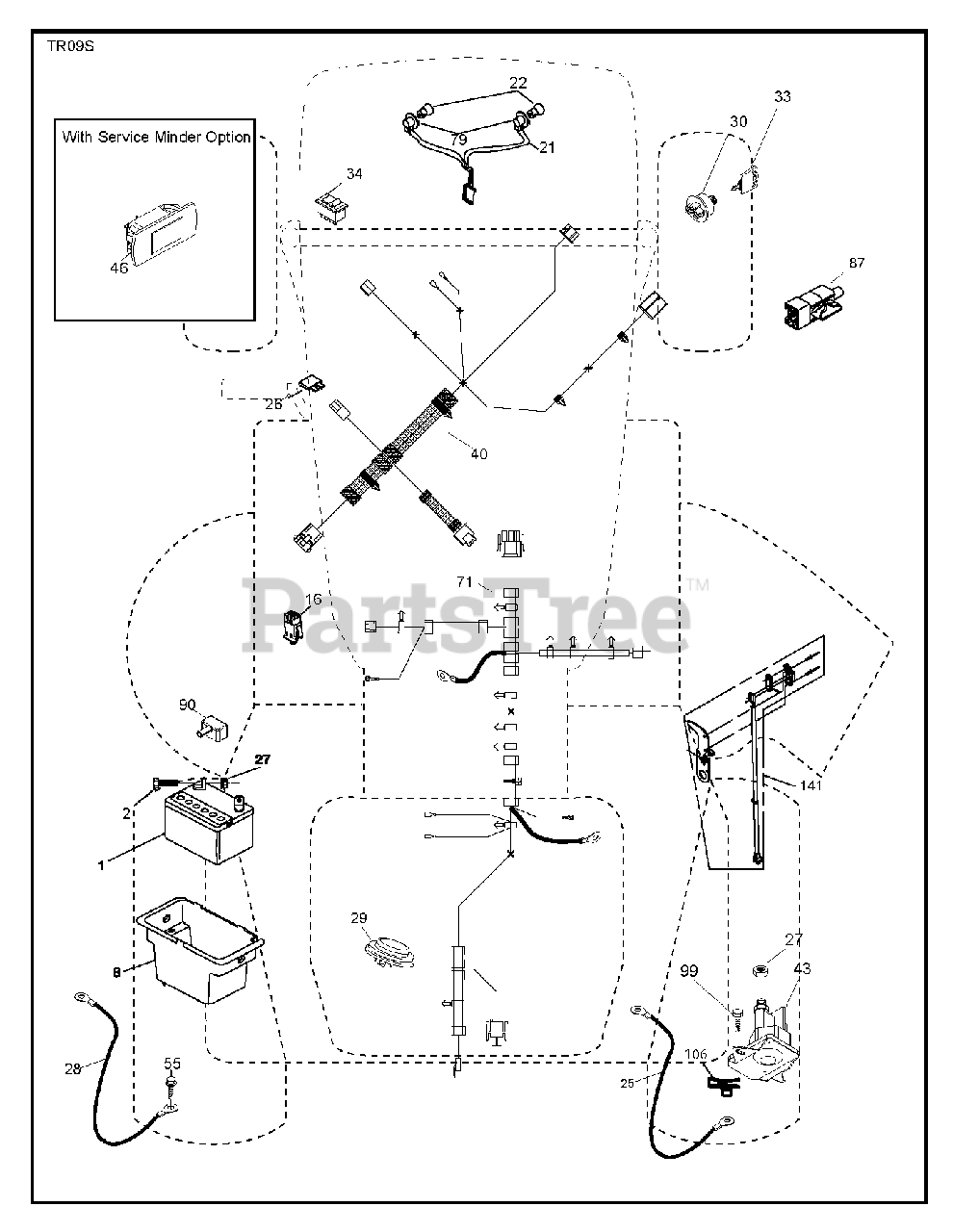

LTH 19530 (960410169-04) - Husqvarna 30" Lawn Tractor (2013-05) ELECTRICAL Parts Diagram

30" Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna 532144924

REPL BY 532 12 38-99
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532193228

BOX.BATTERY.MNT.REAR.L

$18.99

$

In Stock, only 3 left!

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$15.99

$

In Stock, Qty 20+

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

In Stock, Qty 5

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 581498001

CABLE.BATT.RED.8GA.17

$8.99

$

In Stock, only 1 left!

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, Qty 11

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532421686

CABLE.GROUND.REAR.BATTERY.8G

$15.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 13

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$13.99

$

In Stock, Qty 20+

0

33

Husqvarna 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA

$9.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532110712

SWITCH LT

$8.99

$

In Stock, Qty 11

0

40

Husqvarna 581023101

HARNESS.TEX.DASH.MAN.REAR BATT

$40.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$13.99

$

In Stock, Qty 20+

0

46

Husqvarna 532401763

RP GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 19

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 581023001

HARNESS.TEX.CHSSIS.REAR.BATT

$67.99

$

In Stock, only 3 left!

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

In Stock, only 2 left!

0

87

Husqvarna 532197802

SWITCH.INTRLCK.CLUTCH.

$18.99

$

In Stock, Qty 15

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$6.49

$

Usually ships in 3-10 days

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

106

Husqvarna 532174814

1/4-20 U NUT

$6.49

$

In Stock, only 1 left!

0

141

Husqvarna 532416977

KIT T2.ROS 71677

$145.99

$

Usually ships in 3-10 days

0
