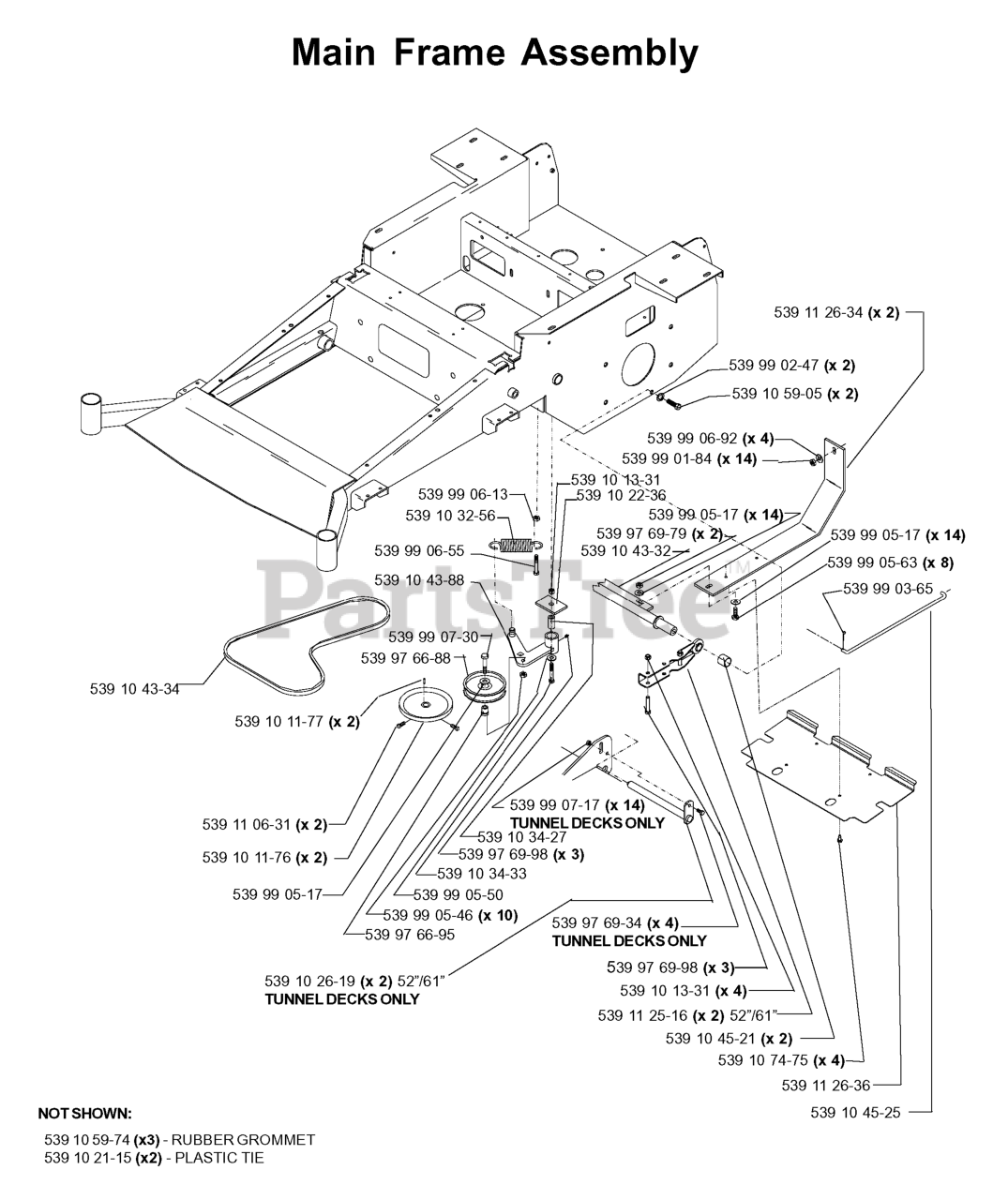

LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2006-04) MAINFRAME, LEFT SIDE 2 Parts Diagram

Zero-Turn Mower

MAINFRAME, LEFT SIDE 2 Parts Diagram

  • Title

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

539 10 34-27

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

539 10 59-05

Husqvarna 539105905

HEX SCREW 7/16-14 X 1 GR8

$4.99

$

Usually ships in 3-10 days

0

539 99 05-17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 11-76

Husqvarna 539101176

PULLEY

$

$

Not available

539 99 01-84

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

539 97 66-88

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

539 97 69-98

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

539 10 43-88

Husqvarna 539104388

IDLER ARM WLDT
(Superseded to 539130532)

$182.99

$

Usually ships in 3-10 days

0

539 99 05-46

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

539 99 05-50

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 21-15

Husqvarna 539102115

TIE-PLASTIC 15X120#

Note: NOTE SHOWN: PLASTIC TIE

$

$

Not available

539 10 34-33

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

539 10 22-36

Husqvarna 539102236

PAD

$27.99

$

Usually ships in 3-10 days

0

539 10 59-74

Husqvarna 539105974

RUBBER GROMMET

Note: NOT SHOWN: RUBBER GROMMET

$

$

Not available

539 11 06-31

Husqvarna 539110631

5/16 DIA ROLL PIN

$3.99

$

In Stock, Qty 16

0

539 10 45-21

Husqvarna 539104521

SPACER, STRUT

$9.99

$

Usually ships in 3-10 days

0

539 10 26-19

Husqvarna 539102619

PIVOT PIN

Note: 52 TUNNEL DECKS ONLY

$40.99

$

In Stock, only 3 left!

0

539 11 26-34

Husqvarna 539112634

SKID PLATE

$46.99

$

Usually ships in 3-10 days

0

539 10 45-25

Husqvarna 539104525

SEAT ROD

$12.99

$

Usually ships in 3-10 days

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

Note: TUNNEL DECKS ONLY

$3.99

$

In Stock, Qty 20+

0

539 99 07-30

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 10 43-34

Husqvarna 539104334

PUMP BELT
(Superseded to 510201501)

$46.99

$

In Stock, Qty 20+

0

539 11 25-16

Husqvarna 539112516

STRUT WELDMENT, REAR

Note: 52

$51.99

$

Usually ships in 3-10 days

0

539 10 11-77

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

Usually ships in 3-10 days

0

539 11 26-36

Husqvarna 539112636

REAR DEBRIS SHIELD

$35.99

$

Usually ships in 3-10 days

0

539 10 43-32

Husqvarna 539104332

CROSS SHAFT WLDMT

$145.99

$

Usually ships in 3-10 days

0

539 10 74-75

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

539 97 66-95

Husqvarna 539976695

BUSHING, IDLER FLANGE

$

$

Not available

539 99 02-47

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

539 99 06-13

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

539 97 69-34

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

Note: TUNNEL DECKS ONLY

$3.99

$

In Stock, Qty 20+

0

539 99 06-55

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

539 10 32-56

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

539 99 05-17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

539 99 05-63

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.49

$

Usually ships in 3-10 days

0
