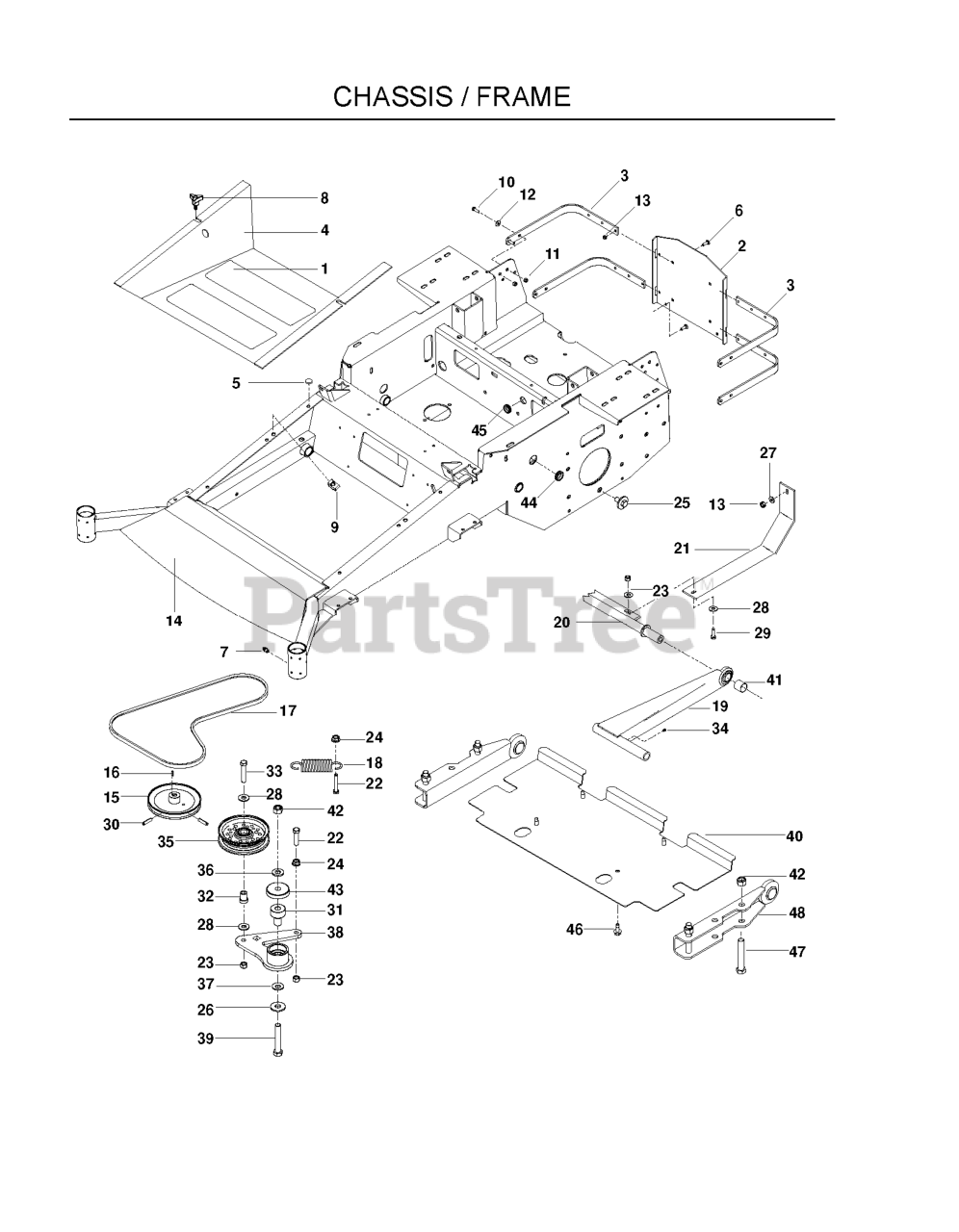

LZ 30 (968999776) - Husqvarna Zero-Turn Mower (2009-06) FRAME Parts Diagram

Zero-Turn Mower

FRAME Parts Diagram

  • Title

23

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

25

Husqvarna 539119007

BLADE BOLT/WASHER

$8.99

$

In Stock, Qty 18

0

7

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

27

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

48

Husqvarna 539112516

STRUT WELDMENT, REAR

$51.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

2

Husqvarna 539110976

XP GUARD, BLACK

$35.99

$

Usually ships in 3-10 days

0

31

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$2.49

$

In Stock, Qty 20+

0

44

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

3

Husqvarna 539106961

ENGINE SHROUD BRKT

$21.99

$

In Stock, only 1 left!

0

16

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539101572

SCREW, 1/2C X 3 HEX CAP

$4.99

$

In Stock, Qty 12

0

20

Husqvarna 539132302

CROSS SHAFT, STRUT - BLK

$

$

Not available

35

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

42

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 539976695

BUSHING, IDLER FLANGE

$

$

Not available

26

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

24

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

21

Husqvarna 539112634

SKID PLATE

$46.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

22

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 539115528

CONTACT BELLSPR 1/2

$3.99

$

In Stock, only 3 left!

0

6

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539110433

GROMMET, FUEL LINE

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.49

$

Usually ships in 3-10 days

0

38

Husqvarna 539130392

ARM, IDLER - W/BEARINGS

$48.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539112636

REAR DEBRIS SHIELD

$35.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539104721

FOOT PLATE WIDMT

$218.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539104390

STRUT

$302.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 15

0

15

Husqvarna 539101176

PULLEY

$

$

Not available

41

Husqvarna 539104521

SPACER, STRUT

$9.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990250

WASHER 1/2" FLAT

$1.49

$

Usually ships in 3-10 days

0

30

Husqvarna 539110631

5/16 DIA ROLL PIN

$3.99

$

In Stock, Qty 16

0

17

Husqvarna 510201501

BELT, PUMP

$46.99

$

In Stock, Qty 20+

0

47

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

14

Husqvarna 539132229

FRAME W/DECALS 52/61

$

$

Not available
