LZ 5225 (965879501) - Husqvarna 52" Zero-Turn Mower (2008-12) Engine Plate Parts Diagram

52" Zero-Turn Mower

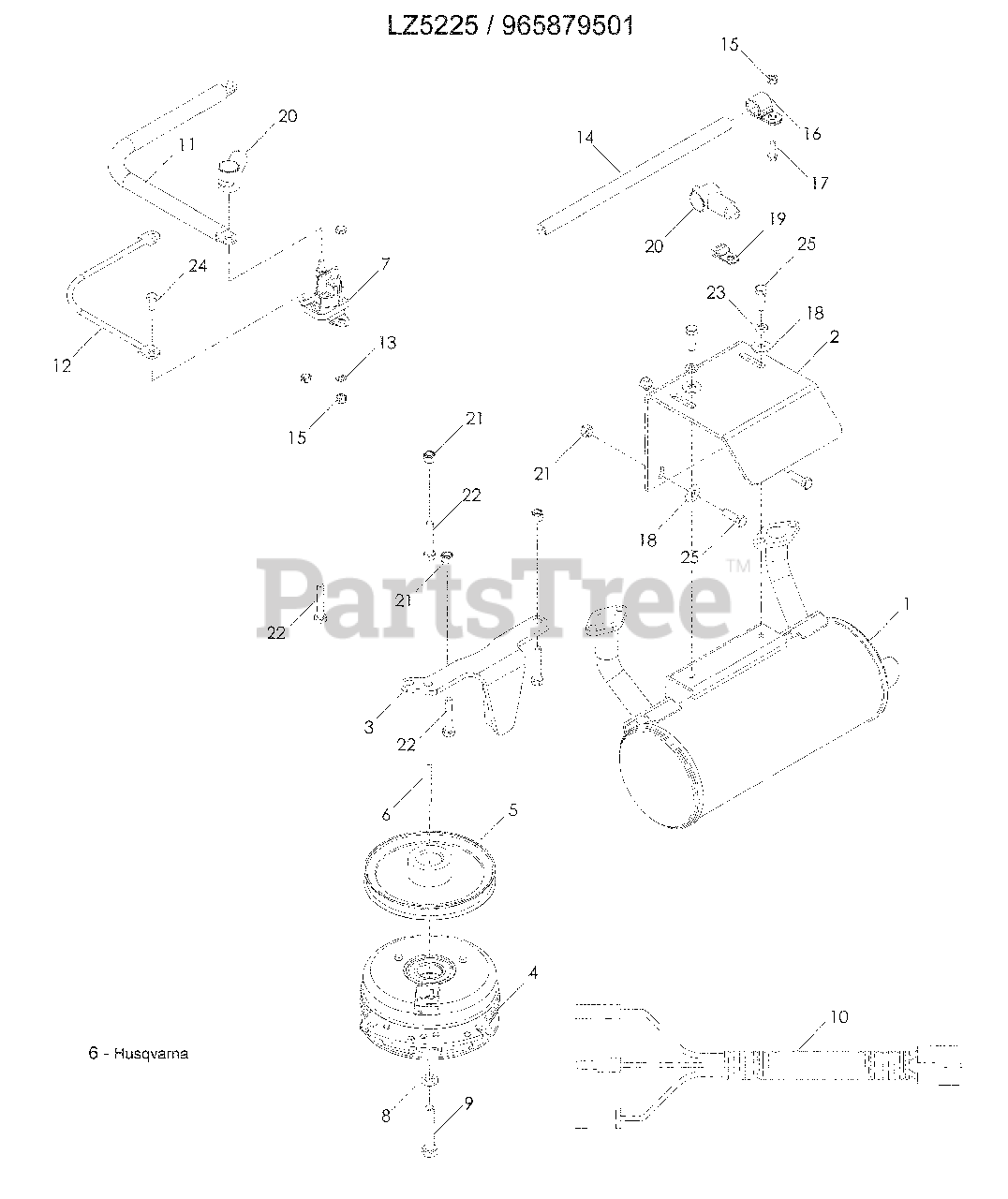

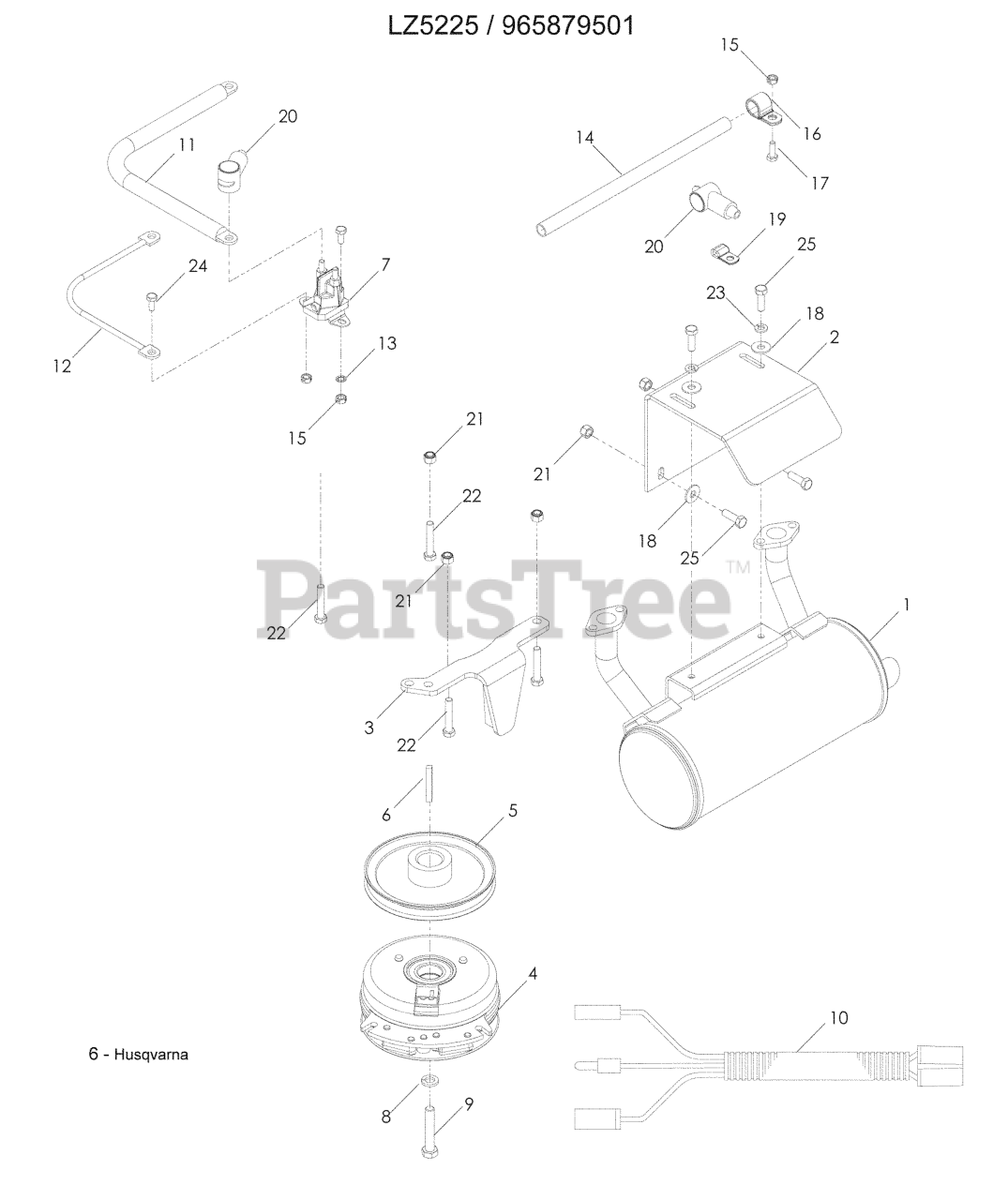

Engine Plate Parts Diagram

  • Title

1

Husqvarna 539105897

MUFFLER

$424.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539111093

BRACKET, MUFFLER

$36.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510201702

TIE DOWN, CLUTCH

$66.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539105406

CLUTCH, 200 FT/LBS

$

$

Not available

5

Husqvarna 539106057

PULLEY

$

$

Not available

6

Husqvarna 539100152

KEY ¼ SQ

$3.99

$

In Stock, Qty 5

0

7

Husqvarna 539101714

SOLENOID

$26.99

$

In Stock, Qty 20+

0

8

Husqvarna 539990247

WASHER 7/16 SLW

$

$

Not available

9

Husqvarna 539991120

HCS 7/16 x 2½

$6.49

$

In Stock, Qty 11

0

10

Husqvarna 539104415

PIGTAIL

$34.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539102757

CABLE, POSITIVE

$15.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539105409

GROUND WIRE

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990053

WASHER ¼ ITLW

$3.99

$

In Stock, only 3 left!

0

14

Husqvarna 539107937

HOSE, OIL DRAIN

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990761

NUT ¼-20 CNTRLK

$4.99

$

In Stock, only 4 left!

0

16

Husqvarna 539102685

CLIP

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990580

HCS ¼-20 x ¾

$3.99

$

In Stock, only 4 left!

0

18

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 539109867

CLAMP, DOUBLE TUBE

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990669

HCS 5/16-18 x 1¾
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

23

Husqvarna 539990187

WASHER 5/16 SLW
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990072

HCS ¼-20 x 5/8

$3.99

$

In Stock, only 3 left!

0

25

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0
