LZ 5225 (965879501) - Husqvarna 52" Zero-Turn Mower (2010-05) PROTECTION FRAME Parts Diagram

52" Zero-Turn Mower

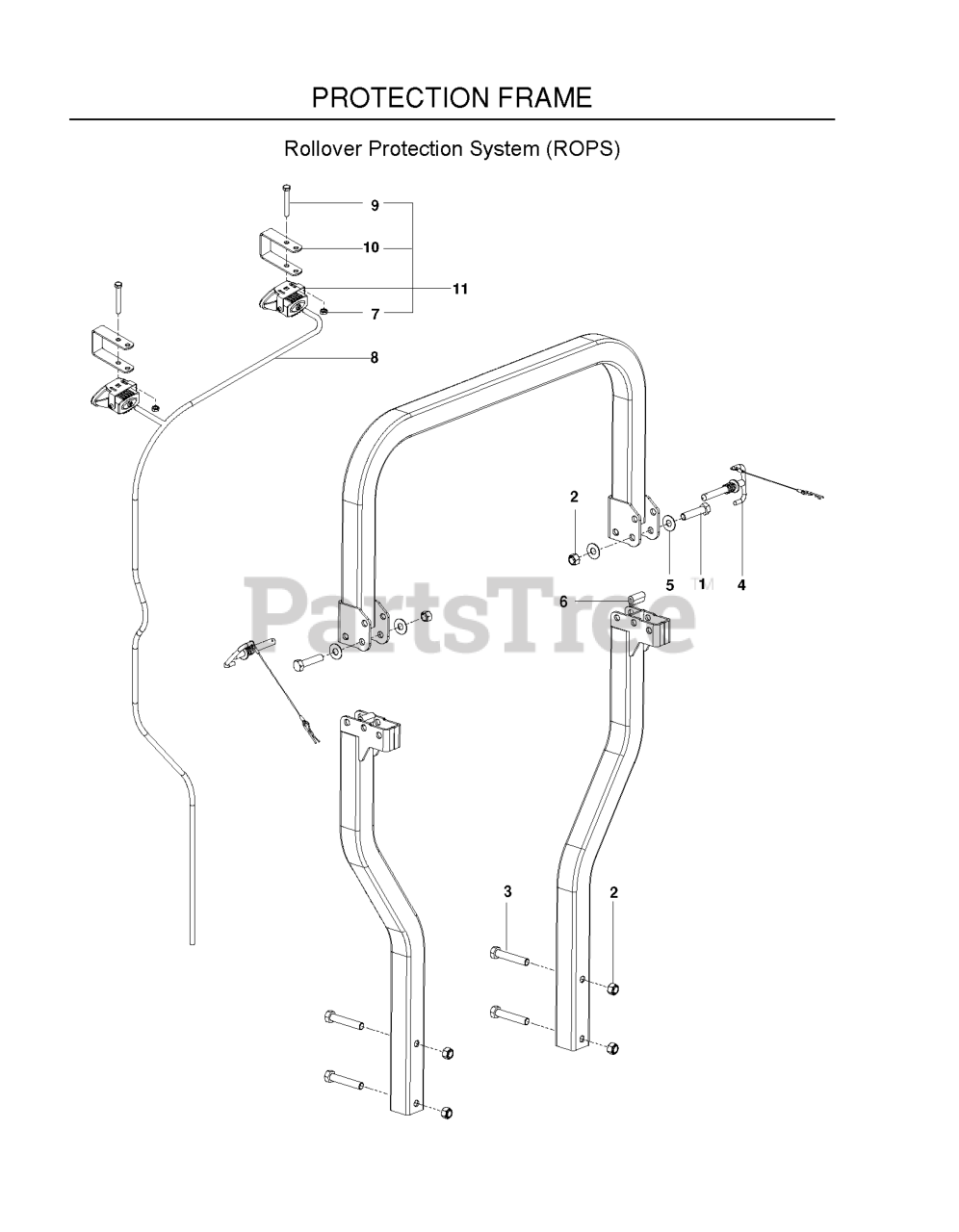

PROTECTION FRAME Parts Diagram

  • Title

6

Husqvarna 574261601

RUBBER EXTRUSION - 1.40" LONG

$36.99

$

Usually ships in 3-10 days

0

Husqvarna 539976856

TIE, PLASTIC

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539111815

BULB, 12V 35 WATT

Note: NOT SHOWN

$12.99

$

Usually ships in 3-10 days

0

Husqvarna 539111579

LIGHT KIT COMPLETE

Note: LITE KIT COMPLETE

$182.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539111580

LIGHT HARNESS

Note: OPTIONAL LITE KIT

$75.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539111578

LIGHT MOUNTING BRACKET

Note: OPTIONAL LITE KIT

$11.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539107897

NUT 5/16-18 HEX JAM ZD

Note: OPTIONAL LITE KIT

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

3

Husqvarna 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.49

$

In Stock, Qty 20+

0

Husqvarna 539111026

SEAT BELT

Note: NOT SHOWN

$60.99

$

Usually ships in 3-10 days

0

4

Husqvarna 525865001

PIN, T HANDLE

$51.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539111577

LIGHT 35W W/BRKT

Note: OPTIONAL LITE KIT

$78.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539991046

BOLT 5/16C X 2 1/2

Note: OPTIONAL LITE KIT

$4.99

$

In Stock, Qty 8

0

Husqvarna 539111443

ROPS, COMPLETE W/ SEAT BELT

Note: NOT SHOWN

$647.99

$

Usually ships in 3-10 days

0

5

Husqvarna 574261501

PLASTIC WASHER - 1.50 OD X .53

$14.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539200100

NUT 1/2-13 HEX CNTRLK GR 5 ZD

$6.49

$

In Stock, Qty 10

0
