LZ 5225 TKAA (968999371) - Husqvarna 52" Zero-Turn Mower (2006-04) Main Frame Assembly (Part 2) Parts Diagram

52" Zero-Turn Mower

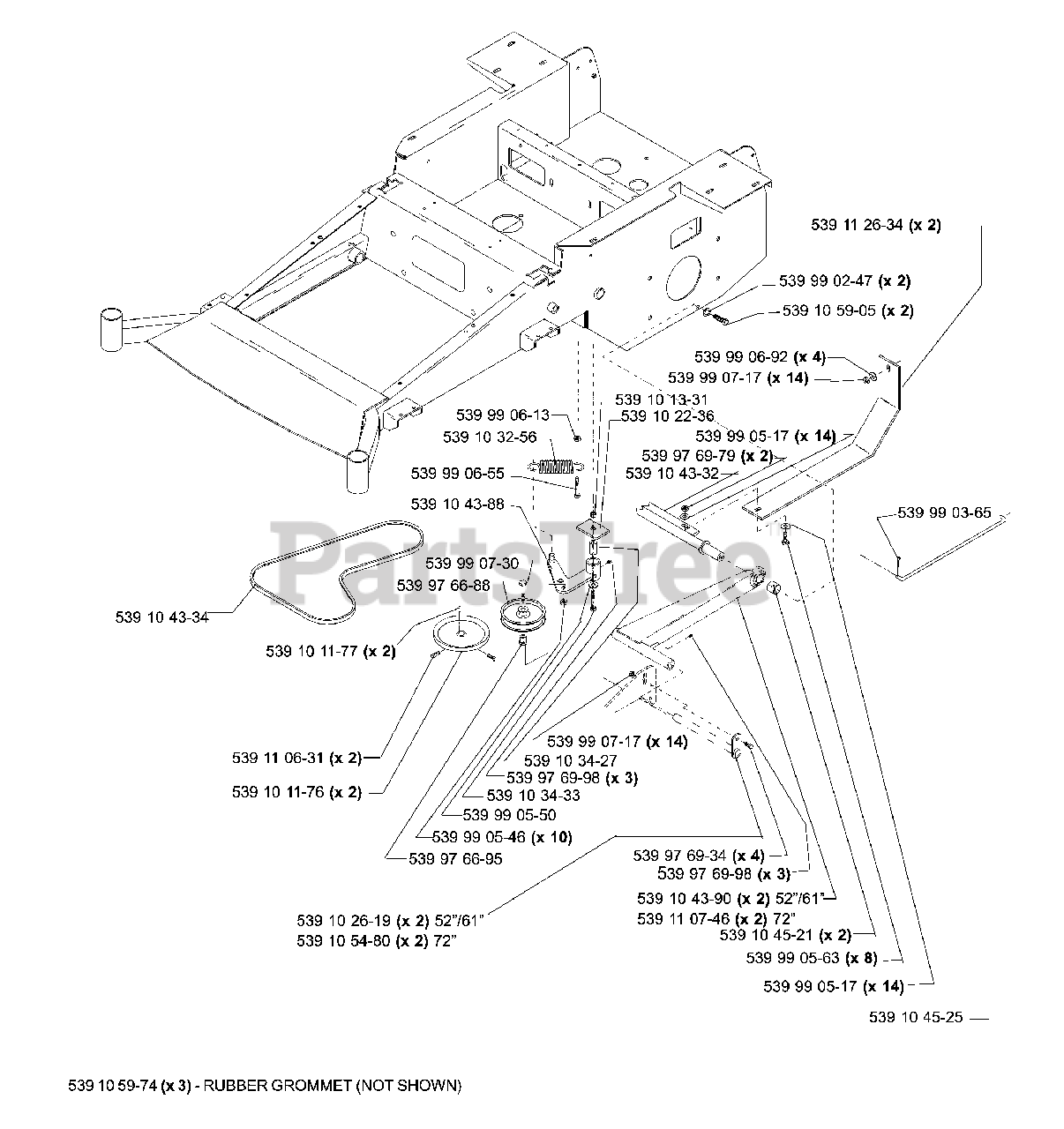

Main Frame Assembly (Part 2) Parts Diagram

  • Title

539101176

Husqvarna 539101176

PULLEY

$

$

Not available

539101177

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

Usually ships in 3-10 days

0

539101331

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

539102236

Husqvarna 539102236

PAD

$27.99

$

Usually ships in 3-10 days

0

539102619

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

539103256

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

539103427

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

539103433

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

539104332

Husqvarna 539104332

CROSS SHAFT WLDMT

$145.99

$

Usually ships in 3-10 days

0

539104334

Husqvarna 539104334

PUMP BELT
(Superseded to 510201501)

$46.99

$

In Stock, Qty 20+

0

539104388

Husqvarna 539104388

IDLER ARM WLDT
(Superseded to 539130532)

$182.99

$

Usually ships in 3-10 days

0

539104390

Husqvarna 539104390

STRUT

$302.99

$

Usually ships in 3-10 days

0

539104521

Husqvarna 539104521

SPACER, STRUT

$9.99

$

Usually ships in 3-10 days

0

539104525

Husqvarna 539104525

SEAT ROD

$12.99

$

Usually ships in 3-10 days

0

539105480

Husqvarna 539105480

PIN WELDMENT

$36.99

$

Usually ships in 3-10 days

0

539105905

Husqvarna 539105905

HEX SCREW 7/16-14 X 1 GR8

$4.99

$

Usually ships in 3-10 days

0

539105974

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

539110631

Husqvarna 539110631

5/16 DIA ROLL PIN

$3.99

$

In Stock, Qty 16

0

539110746

Husqvarna 539110746

STRUT 72"

$151.99

$

Usually ships in 3-10 days

0

539112634

Husqvarna 539112634

SKID PLATE

$46.99

$

Usually ships in 3-10 days

0

539976688

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

539976695

Husqvarna 539976695

BUSHING, IDLER FLANGE

$

$

Not available

539976934

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539976998

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

539990247

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

539990365

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539990517

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539990546

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

539990550

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539990563

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.49

$

Usually ships in 3-10 days

0

539990613

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

539990655

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

539990692

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

539990717

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539990730

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0
