LZ 5227 TXPKOA (968999309) - Husqvarna 52" Zero-Turn Mower (2007-02) Front Deck Assembly 52" Parts Diagram

52" Zero-Turn Mower

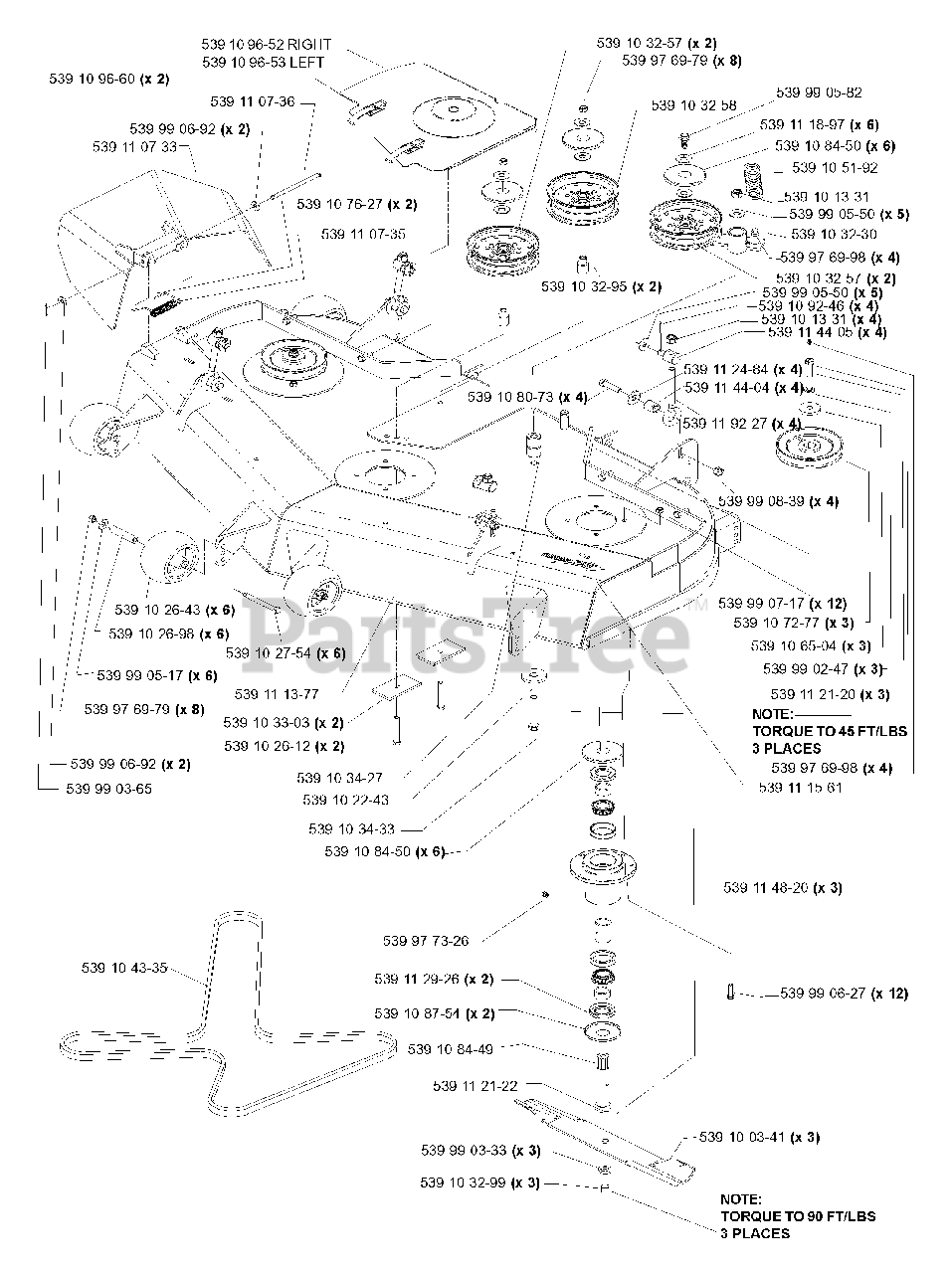

Front Deck Assembly 52" Parts Diagram

  • Title

539100341

Husqvarna 539100341

BLADE 18"

$

$

Not available

539101331

Husqvarna 539101331

NUT 1/2C NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

539102243

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

539102612

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$4.99

$

In Stock, Qty 7

0

539102643

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

539102698

Husqvarna 539102698

BUSHING

$

$

Not available

539102754

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 14

0

539103230

Husqvarna 539103230

IDLER ARM

$

$

Not available

539103257

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 11

0

539103258

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, Qty 8

0

539103295

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 18

0

539103299

Husqvarna 539103299

HCS 5/8F X 1 1/4

$7.49

$

In Stock, only 2 left!

0

539103303

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

539103427

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

539103433

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

539104335

Husqvarna 539104335

BELT, DECK 52" OR 72"
(Superseded to 522795901)

$109.99

$

In Stock, Qty 20+

0

539105192

Husqvarna 539105192

DECK SPRING

$

$

Not available

539106504

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

539107277

Husqvarna 539107277

PULLEY - 52"
(Superseded to 539112124)

$44.99

$

In Stock, Qty 7

0

539107627

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

539108073

Husqvarna 539108073

BOLT - DROP SHIP

$3.99

$

Usually ships in 3-10 days

0

539108449

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 17

0

539108450

Husqvarna 539108450

TOP DUST CAP

$4.99

$

In Stock, only 2 left!

0

539108754

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 19

0

539109246

Husqvarna 539109246

PIN COTTER 1/8 X 1 ZD

$3.99

$

Usually ships in 3-10 days

0

539109652

Husqvarna 539109652

52" BELT SHIELD ASM - RH

$339.99

$

Usually ships in 3-10 days

0

539109653

Husqvarna 539109653

52" BELT SHIELD ASM - LH

$303.99

$

Usually ships in 3-10 days

0

539109660

Husqvarna 539109660

DRAW LATCH

$14.99

$

Usually ships in 3-10 days

0

539110733

Husqvarna 539110733

DISCHARGE CHUTE 52"

$53.99

$

In Stock, Qty 20+

0

539110735

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$3.99

$

In Stock, Qty 16

0

539110736

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$

$

Not available

539111377

Husqvarna 539111377

DECK W/DECALS 52" - DROP SHIP

$

$

Not available

539111561

Husqvarna 539111561

DECAL, TUNNELRAM 8"

$8.99

$

Usually ships in 3-10 days

0

539111897

Husqvarna 539111897

WASHER, 3/8 SPEC

$3.99

$

Usually ships in 3-10 days

0

539112120

Husqvarna 539112120

HCS 7/16-20 GD 8 SPEC

$30.99

$

In Stock, only 1 left!

0

539112122

Husqvarna 539112122

SPINDLE 52/61

$

$

Not available

539112484

Husqvarna 539112484

SPRING WASHER - .50

$9.99

$

Usually ships in 3-10 days

0

539112926

Husqvarna 539112926

$

$

Currently unavailable

539114404

Husqvarna 539114404

SPACER

$

$

Not available

539114405

Husqvarna 539114405

SWIVEL

$

$

Not available

539114820

Husqvarna 539114820

HSG ASM KIT, 52/61 RIBBED
(Superseded to 966956101)

$145.99

$

In Stock, Qty 20+

0

539119227

Husqvarna 539119227

BOLT, EYE

$18.99

$

In Stock, only 3 left!

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539976998

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

539977326

Husqvarna 539977326

GREASE ZIRC

$13.99

$

In Stock, only 1 left!

0

539990247

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

539990333

Husqvarna 539990333

LOCKWASHER 5/8

$1.49

$

In Stock, Qty 6

0

539990365

Husqvarna 539990365

COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539990517

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539990550

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539990582

Husqvarna 539990582

HCS 3/8C X 1 SERRATED HEAD

$

$

Not available

539990627

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

539990692

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

539990717

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539990839

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0
