LZ-60 KH (53AH2PTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler (2013) Kohler CV740-3141 Blower Housing & Baffles Parts Diagram

60" Tank Zero-Turn Mower, Kohler

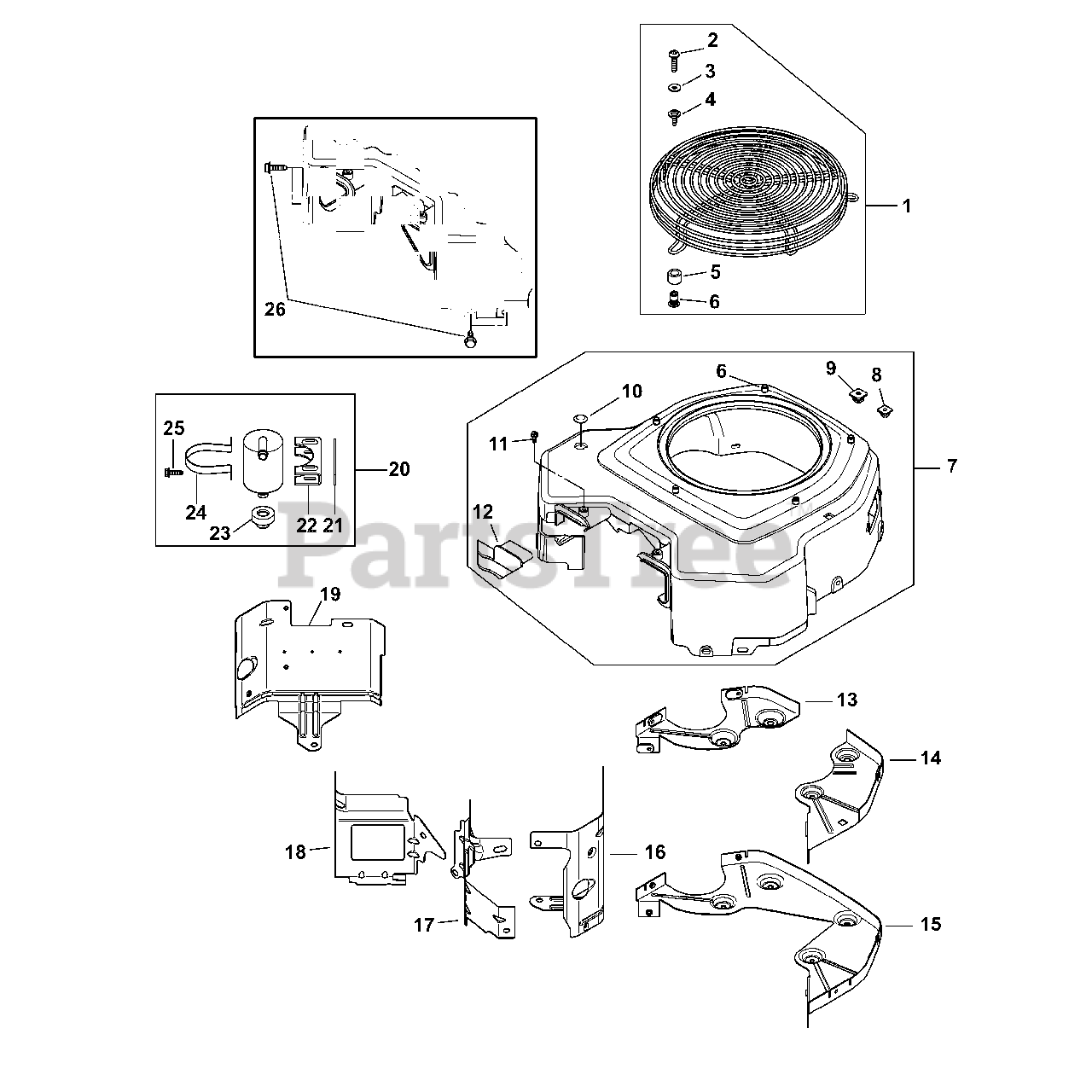

Kohler CV740-3141 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-755-94-S

Guard Kit (Inc. 2-4 & KH-24-445-01-S)

$86.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-25-086-160-S

Pan Screw, M5 x 0.8 x 15

$2.99

$

In Stock, only 4 left!

0

3

Cub Cadet KH-24-468-10

Flat Washer, 7/32

$

$

Not available

4

Cub Cadet KH-25-086-160-S

Sems Screw

$2.99

$

In Stock, only 4 left!

0

5

Cub Cadet KH-24-332-01-S

Threaded Insert

$

$

Not available

6

Cub Cadet KH-24-112-09-S

Spacer
(Superseded to KH-25-112-30-S)

$4.49

$

In Stock, only 4 left!

0

7

Cub Cadet KH-24-027-199-S

Blower Housing Assembly Kit
(Superseded to KH-24-027-494-S)

Note: (Inc.8-12, Set Screws & Nameplate)

$165.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-24-100-02-S

Plastic Nut

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-100-37-S

Plastic Nut

$

$

Currently unavailable

10

Cub Cadet KH-25-139-16

Button Plug, 9/16

$

$

Not available

11

Cub Cadet KH-25-086-91-S

Tap Screw, #8-18 x 1/2

$3.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-24-096-119-S

Blower Housing Cover
(Superseded to KH-24-096-161-S)

$2.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-146-20-S

#1 Side Backing Plate

$

$

Not available

14

Cub Cadet KH-24-146-19-S

#2 Side Backing Plate
(Superseded to KH-24-146-59-S)

$15.99

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-146-55-S

Backing Plate Kit (Inc. KH-M-561016-S)
(Superseded to KH-24-146-59-S)

$15.99

$

In Stock, only 2 left!

0

16

Cub Cadet KH-24-063-88-S

Cylinder Baffle Kit, #2 Side

$28.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-24-063-94-S

Valley Baffle, #2 Side

$9.49

$

In Stock, only 1 left!

0

18

Cub Cadet KH-24-063-93-S

Valley Baffle, #1 Side

$

$

Not available

19

Cub Cadet KH-24-063-85-S

Cylinder Barrel Kit, #1 Side

$17.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-24-755-57-S

Breather Separator Kit
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 5

0

21

Cub Cadet KH-24-112-12

Spacer

$

$

Not available

22

Cub Cadet KH-24-126-44

Breather Separator Bracket

$

$

Not available

23

Cub Cadet KH-25-313-03-S

Rubber Grommet

$10.99

$

In Stock, Qty 11

0

24

Cub Cadet KH-24-445-02

Breather Strap
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 5

0

25

Cub Cadet KH-M-545016-S

Flange Screw, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

26

Cub Cadet KH-M-645016-S

Flange Screw, M6 x 1.0 x 16

$3.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-086-18

Screw, #11-16 x 7/8

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-24-455-01-S

Insert Installation Tool

Note: (Not Shown)

$35.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-086-158-S

Flange Screw, M6 x 1.0 x 10
(Superseded to KH-25-086-406-S)

Note: (Not Shown)

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-25-086-43

Set Screw

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-41-037-10-S

Service Nameplate

Note: (Not Shown)

$8.49

$

In Stock, only 3 left!

0

Cub Cadet KH-M-0545010

Flange Screw, M5 x 0.8 x 10

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-M-545020-S

Flange Screw, M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

Note: (Not Shown)

$2.49

$

In Stock, Qty 17

0

Cub Cadet KH-M-645016-S

Flange Screw, M6 x 1.0 x 16

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0
