LZ31BV604 - Exmark 60" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton (SN: 510000 - 539999) (2005) Hydraulic Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton

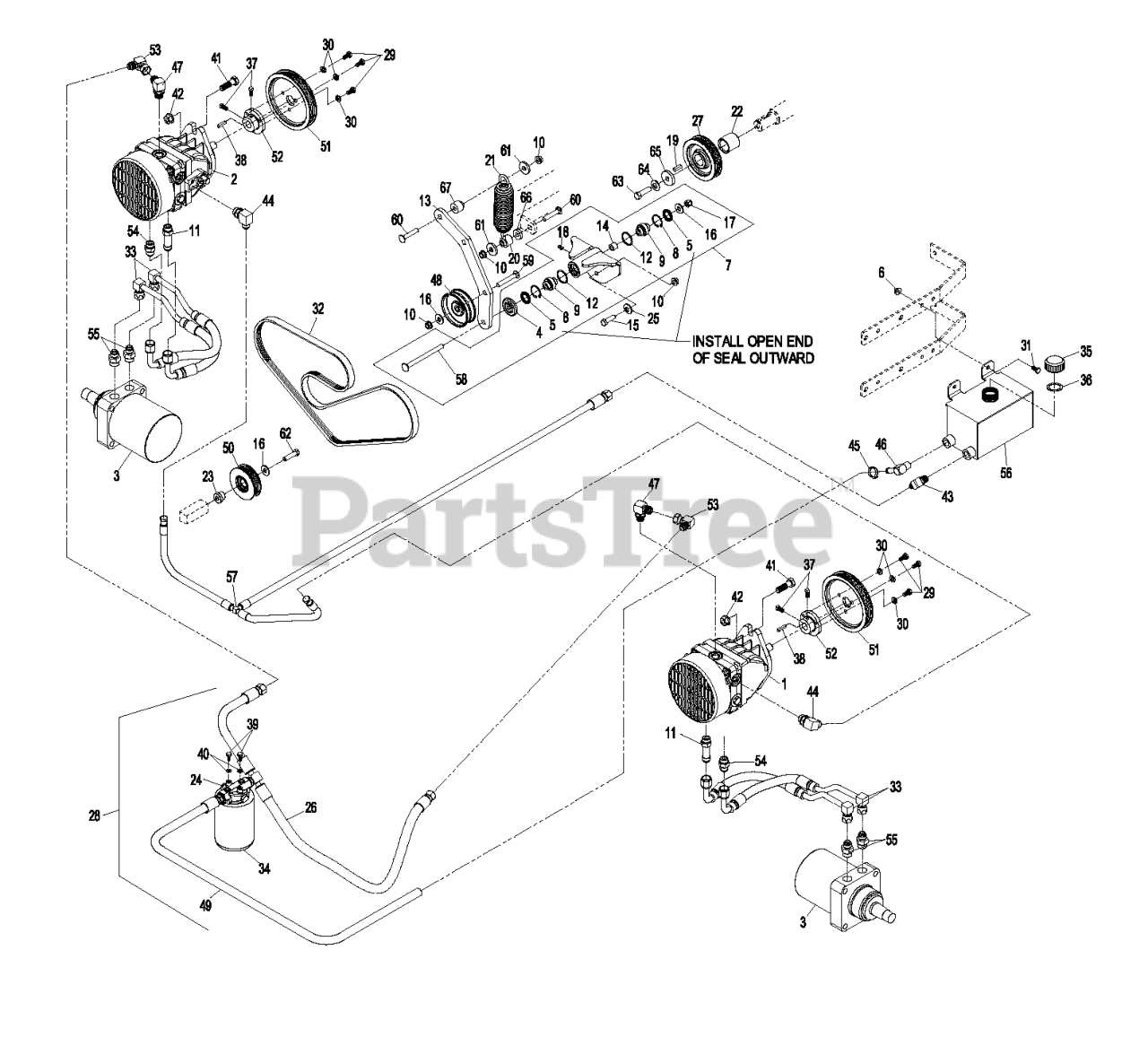

Hydraulic Group Parts Diagram

  • Title

1

Exmark 103-6565

109-8909
(Superseded to 109-8909)

$1749.99

$

Usually ships in 3-6 days

0

2

Exmark 103-6566

109-8408
(Superseded to 109-8408)

$1749.99

$

Usually ships in 3-6 days

0

Exmark 100-6110

OVERHAUL SEAL KIT

$86.99

$

Usually ships in 3-6 days

0

Exmark 100-2669

NUT HEX

$

$

Not available

Exmark 103-2670

THRUST BEARING KIT

$79.99

$

Usually ships in 3-6 days

0

Exmark 103-2668

127-3867
(Superseded to 127-3867)

$220.99

$

Usually ships in 3-6 days

0

Exmark 103-2667

100-6112
(Superseded to 100-6112)

$266.99

$

In Stock, only 1 left!

0

Exmark 103-7488

PUMP-COOLING

$71.99

$

In Stock, only 1 left!

0

Exmark 103-7489

GUARD-PUMP

$86.99

$

In Stock, only 4 left!

0

3

Exmark 103-2489

109-6553
(Superseded to 109-6553)

$1672.99

$

Usually ships in 3-6 days

0

Exmark 1-000099

103-6994
(Superseded to 103-6994)

$339.99

$

Usually ships in 3-6 days

0

Exmark 1-000139

Kit, Bearing

$

$

Not available

4

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 10

0

5

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 20+

0

6

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 103-7613

KIT,XS PUMP IDLER

$

$

Not available

8

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

9

Exmark 103-3504

BEARING-SPHERICAL

$23.99

$

In Stock, Qty 20+

0

10

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Exmark 103-1940

ADAPTER-STR, LONG

$23.99

$

In Stock, only 4 left!

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603920

O-RING

$3.49

$

In Stock, Qty 20+

0

12

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

13

Exmark 103-4573-03

ARM, XS HYDRO TIGHTENER

$35.99

$

In Stock, only 1 left!

0

14

Exmark 1-603401

SPACER

$6.99

$

In Stock, Qty 18

0

15

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 18

0

19

Exmark 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 8

0

20

Exmark 103-1575

SPACER-SPRING, FAN PUMP

$13.99

$

In Stock, only 1 left!

0

21

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$27.99

$

In Stock, Qty 20+

0

22

Exmark 103-6226

SPACER,ENGINE SHEAVE

$32.99

$

Usually ships in 3-6 days

0

23

Exmark 103-4566

SPACER,LOWER FRAME IDLER

$16.99

$

In Stock, only 1 left!

0

24

Exmark 103-2259

HEAD-FILTER

$128.99

$

Usually ships in 3-6 days

0

25

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

26

Exmark 103-6498

HOSE,31 EPS PUMP INLET

$

$

Not available

27

Exmark 103-4718

SHEAVE,5K 4"PD POLY-V

$139.99

$

Usually ships in 3-6 days

0

28

Exmark 103-6497

DISCONTINUED

Note: Charge hose assembly includes items 49, 26, & 24 only.

$

$

Not available

29

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

31

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Exmark 103-4569

BELT,PVK 5 X 70.5
(Superseded to 103-4569-SL)

$55.99

$

In Stock, only 2 left!

0

33

Exmark 103-4679

HYD HOSE ASM

$169.99

$

In Stock, only 2 left!

0

Exmark 103-4680

HYD HOSE ASM

$149.99

$

In Stock, Qty 10

0

34

Exmark 103-2146

FILTER,XP HYD 25 MICRON

$67.99

$

In Stock, only 1 left!

0

35

Exmark 1-513167

CAP

$26.99

$

In Stock, only 4 left!

0

36

Exmark 1-523103

GASKET-CAP, TANK

$6.49

$

In Stock, Qty 14

0

37

Exmark 1-803050

SCREW-SET

Note: Use Prolock, Nut Type (P/N 1-840022, .5ml tube) on setscrews.

$2.99

$

In Stock, Qty 13

0

38

Exmark 103-2739

KEY

$2.99

$

In Stock, Qty 5

0

39

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

40

Exmark 1-805004

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

0

41

Exmark 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

42

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 14

0

43

Exmark 103-1012

FITTING-ELBOW, 90 DEG

Note: Use Teflon pipe sealant on pipe threads in reservoir.

$25.99

$

Usually ships in 3-6 days

0

44

Exmark 103-1014

FITTING-ELBOW, 90 DEG

$38.99

$

Usually ships in 3-6 days

0

Exmark 1-603920

O-RING

$3.49

$

In Stock, Qty 20+

0

45

Exmark 103-2104

103-2340
(Superseded to 103-2340)

$

$

Not available

46

Exmark 103-2152

FITTING-90 DEG

Note: Use Teflon pipe sealant on pipe threads in reservoir.

$31.99

$

Usually ships in 3-6 days

0

47

Exmark 103-2153

FITTING-90 DEG

$47.99

$

In Stock, only 1 left!

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603920

O-RING

$3.49

$

In Stock, Qty 20+

0

48

Exmark 103-4567

IDLER,PUMP

$53.99

$

In Stock, only 1 left!

0

49

Exmark 103-5121

FILTER INLET HOSE ASM

$112.99

$

Usually ships in 3-6 days

0

50

Exmark 103-4728

ASM,LOWER FRAME IDLER

$142.99

$

In Stock, only 1 left!

0

51

Exmark 103-4712

SHEAVE,5K 5.6" PD POLY-V

$144.99

$

In Stock, only 2 left!

0

52

Exmark 103-1471

HUB-PUMP

$84.99

$

Usually ships in 3-6 days

0

53

Exmark 103-2315

FITTING-90 DEG

$44.99

$

Usually ships in 3-6 days

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

54

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 10

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603920

O-RING

$3.49

$

In Stock, Qty 20+

0

55

Exmark 1-603991

FITTING-STRAIGHT

$20.99

$

In Stock, Qty 10

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603919

O-RING

$3.49

$

In Stock, Qty 20+

0

56

Exmark 103-5859

KIT,HYD TANK W/DECALS

$

$

Not available

57

Exmark 103-6499

ASM,CASE DRAIN HOSE XS

$104.99

$

Usually ships in 3-6 days

0

58

Exmark 9000784

BOLT CARR 3/8-16X5

$2.99

$

Usually ships in 3-6 days

0

59

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

60

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

61

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

62

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

63

Exmark 3212-6

SCREW-HH

$2.49

$

In Stock, only 1 left!

0

64

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

65

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

Usually ships in 3-6 days

0

66

Exmark 103-3186

SPACER-BRACKET, GUIDE

$11.99

$

In Stock, Qty 5

0

67

Exmark 103-7693

SPACER

$15.99

$

In Stock, only 1 left!

0
