LZF 6127 (966956801) - Husqvarna 61" Zero-Turn Mower (2008-06) Engine Plate Parts Diagram

61" Zero-Turn Mower

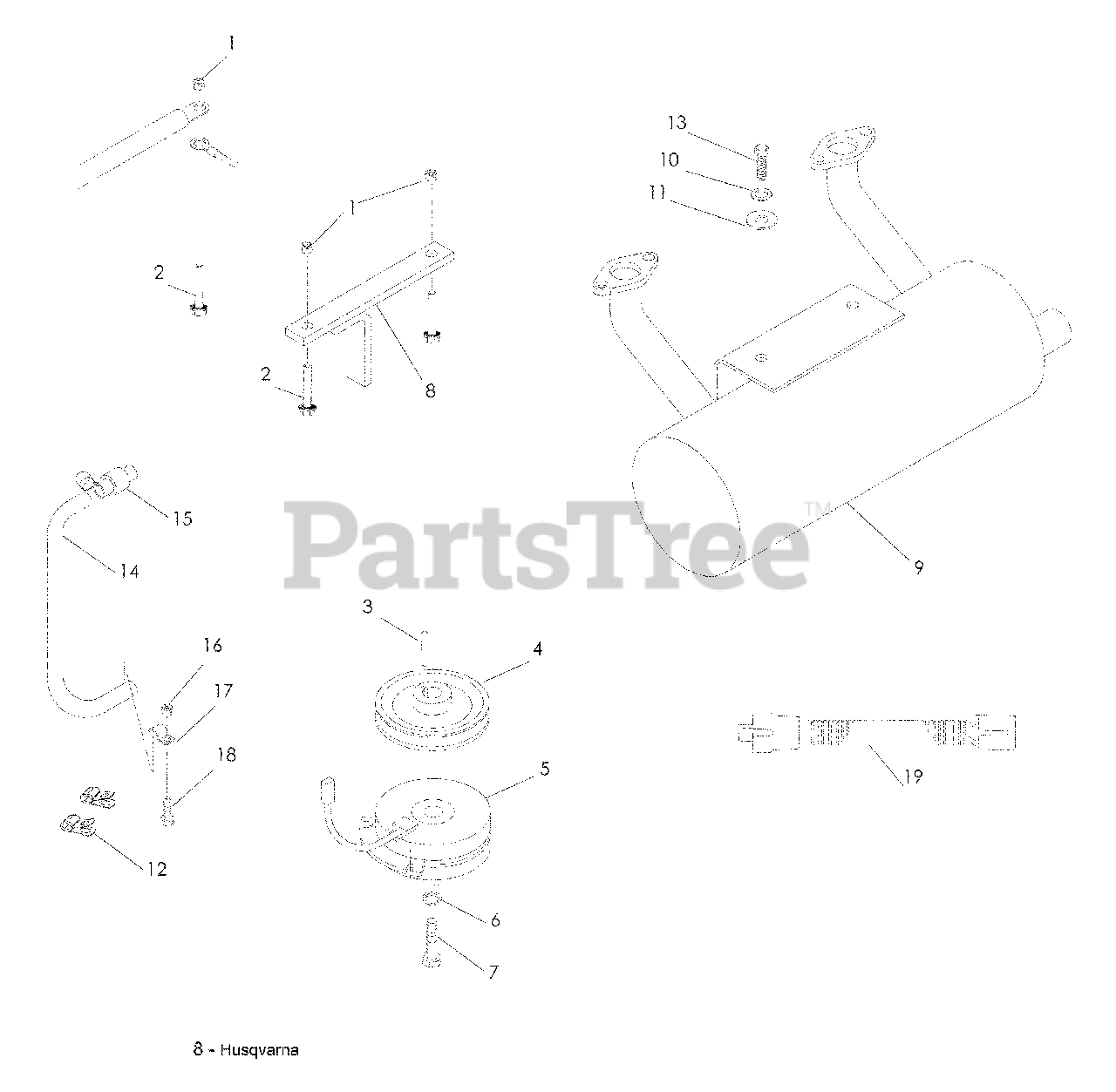

Engine Plate Parts Diagram

  • Title

1

Husqvarna 539990184

NUT 5/16-18 CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539113781

HCS 5/16 x 1¾ SERRATED

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539100152

KEY ¼ SQ

$3.99

$

In Stock, Qty 5

0

4

Husqvarna 539106057

PULLEY

$

$

Not available

5

Husqvarna 539105406

CLUTCH

$

$

Not available

6

Husqvarna 539990247

LOCKWASHER 7/16

$

$

Not available

7

Husqvarna 539991120

HCS 7/16 x 2½

$6.49

$

In Stock, Qty 11

0

8

Husqvarna 539106819

TIE DOWN, CLUTCH

$

$

Not available

9

Husqvarna 539105896

MUFFLER

$364.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990187

LOCKWASHER 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 539109867

CLAMP, DOUBLE TUBE

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976934

HCS 5/16-18 x ¾
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539107937

OIL DRAIN HOSE

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539110093

OIL DRAIN FITTING
(Superseded to 532428287)

$18.99

$

In Stock, Qty 13

0

16

Husqvarna 539990761

NUT ¼-20 CENTERLOCK

$4.99

$

In Stock, only 4 left!

0

17

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 2 left!

0

18

Husqvarna 539990580

HCS ¼- 20 x ¾

$3.99

$

In Stock, only 4 left!

0

19

Husqvarna 539104416

PIGTAIL

$42.99

$

Usually ships in 3-10 days

0
