LZF 6127 (966956801) - Husqvarna 61" Zero-Turn Mower (2008-06) Parking Brake Parts Diagram

61" Zero-Turn Mower

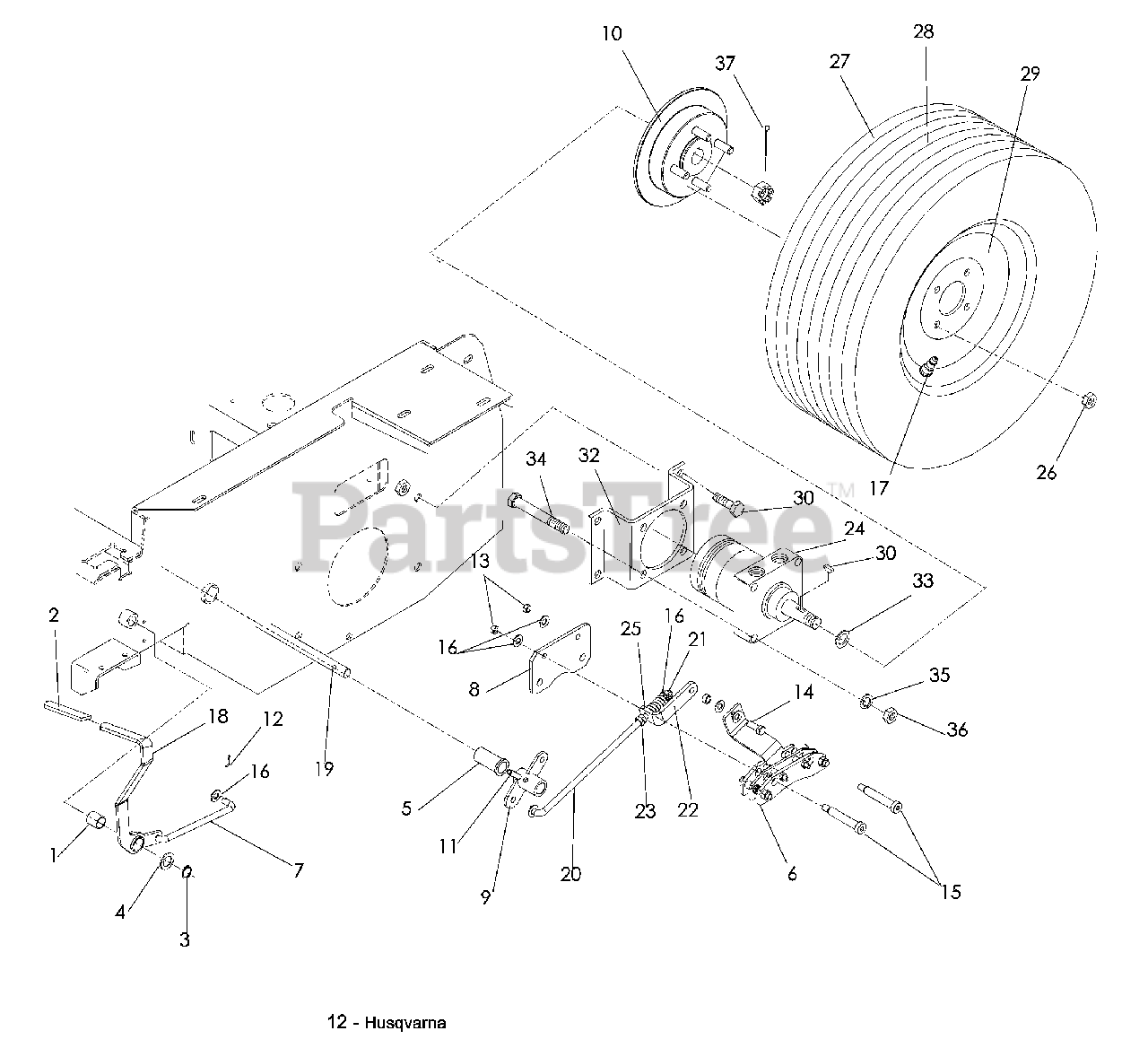

Parking Brake Parts Diagram

  • Title

1

Husqvarna 539108619

BUSHING

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539105036

GRIP

$6.49

$

In Stock, only 1 left!

0

3

Husqvarna 539101151

RING, RETAINING 7/8

$

$

Not available

4

Husqvarna 539923787

BUSHING, MACHINE

$3.99

$

In Stock, only 3 left!

0

5

Husqvarna 539113479

BUSHING, POLYMER ¾ x

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539133047

CALIPER

$120.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539113947

LINKAGE, BRAKE

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539113948

PLATE, BRAKE

$21.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539113946

BELLCRANK, BRAKE

$37.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539113945

HUB

$157.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539110631

PIN, ROLL, 5/16" DIA.

$3.99

$

In Stock, Qty 16

0

12

Husqvarna 539990037

PIN, COTTER 3/32 x ¾

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539200282

NUT 3/8-16 JAM NYLOC

$

$

Not available

14

Husqvarna 539990563

HCS 3/8-16 x 1

$1.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539113951

SB 3/8-16 x 2½ SKT HD

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539912234

VALVE STEM

$6.49

$

In Stock, Qty 20+

0

18

Husqvarna 539108616

BRAKE LEVER

$54.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539110624

SHAFT, CROSS

$34.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539113949

LINKAGE, REAR BRAKE

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990289

NUT 3/8-24 CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539113950

BRACKET, L

$15.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539114523

WHEEL MOTOR, TJ

$

$

Not available

25

Husqvarna 539113952

SPRING

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539101173

NUT ½-20 HEX LUG

$

$

Not available

27

Husqvarna 539112592

TIRE, COMPLETE

$

$

Not available

28

Husqvarna 539112599

TIRE, 23 x 9.5-12

$194.99

$

Usually ships in 3-10 days

0

29

Husqvarna 510253001

RIM, OFFSET 1"

$

$

Not available

30

Husqvarna 539105278

KEY, WOODRUFF

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539101331

NUT ½-13 HEX NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539132300

STANDOFF, WHEEL MOTOR

$

$

Not available

33

Husqvarna 539916561

BUSHING, MACHINE, 1"

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539101332

HCS ½-13 x 2¾

$4.99

$

In Stock, only 4 left!

0

35

Husqvarna 539990254

LOCKWASHER ½

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990258

NUT ½-13 HEX

$4.99

$

In Stock, Qty 15

0

37

Husqvarna 539104288

PIN, COTTER

$3.99

$

Usually ships in 3-10 days

0

HFCS ½-13 x 1¼ WHIZLK

Note: NOT SHOWN

$

$

Not available
