LZF 6127 (966956801) - Husqvarna 61" Zero-Turn Mower (2008-06) Seat Parts Diagram

61" Zero-Turn Mower

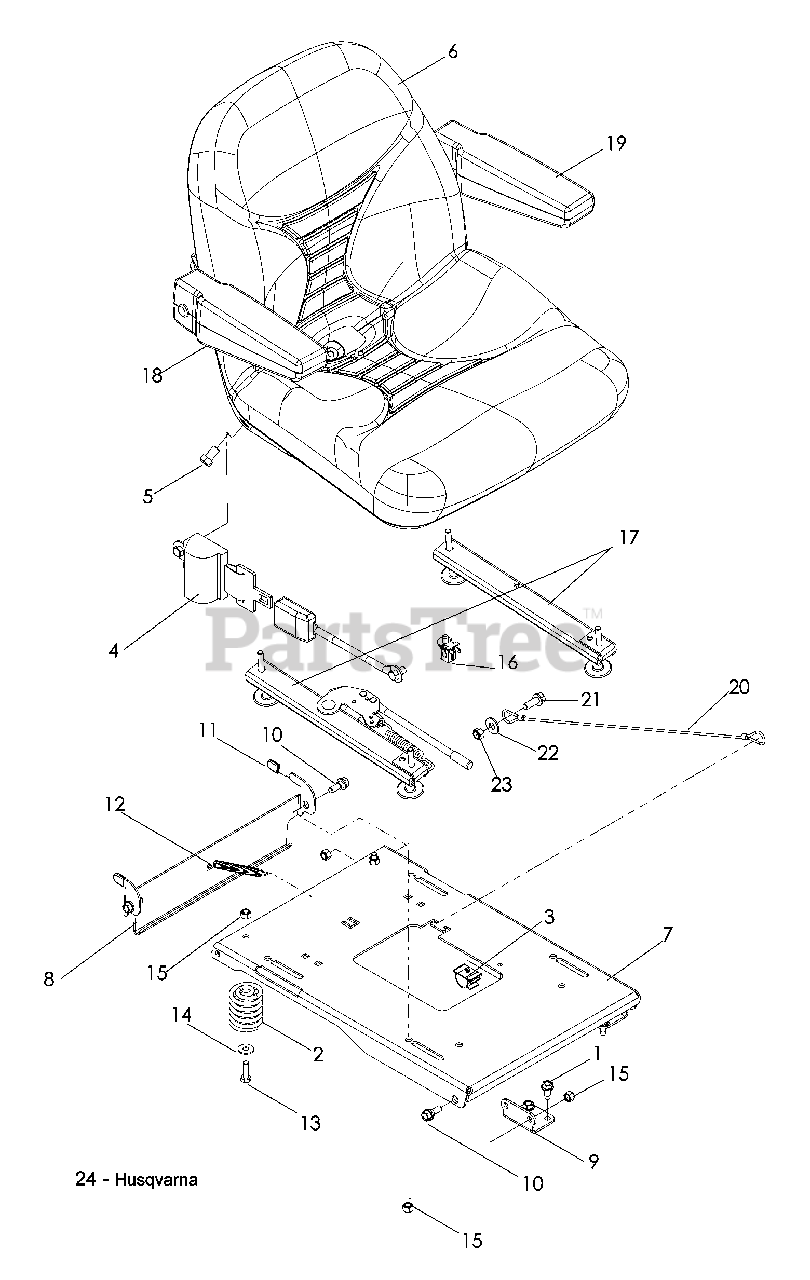

Seat Parts Diagram

  • Title

1

Husqvarna 539107475

BOLT 5/16-18 x ¾ THD FRM

$6.49

$

In Stock, Qty 5

0

2

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

3

Husqvarna 539110815

CLIP, PUSH MOUNT

$3.49

$

In Stock, only 1 left!

0

4

Husqvarna 539130359

SEAT BELT, RETRACTABLE
(Superseded to 596322701)

$133.99

$

In Stock, only 1 left!

0

5

Husqvarna 539112034

HCS 7/16-20 x ¾

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539130873

SEAT
(Superseded to 539112281)

$

$

Not available

7

Husqvarna 539130785

PAN, SEAT

$121.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539130787

LATCH, SEAT

$26.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539130789

PIVOT, SEAT PAN

$15.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539130896

BOLT 5/16-18 HEX HD

$17.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539130898

GRIP, VINYL

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539977250

SPRING

$

$

Not available

13

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539119741

SWITCH, SEAT
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

17

Husqvarna 539112037

SEAT RAIL SET COMPLETE

$157.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539112035

ARM REST ASSM, RT
(Superseded to 574201601)

$85.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539112036

ARM REST ASSM, LT
(Superseded to 574201602)

$84.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

21

Husqvarna 539990582

HCS, 3/8-16 x 1 WHIZLK

$

$

Not available

22

Husqvarna 539990517

WASHER 3/8 STD FLT

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0
