LZS29PKA606 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, 29hp Kawasaki Propane (SN: 920000 - 999999) (2011) Engine Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, 29hp Kawasaki Propane

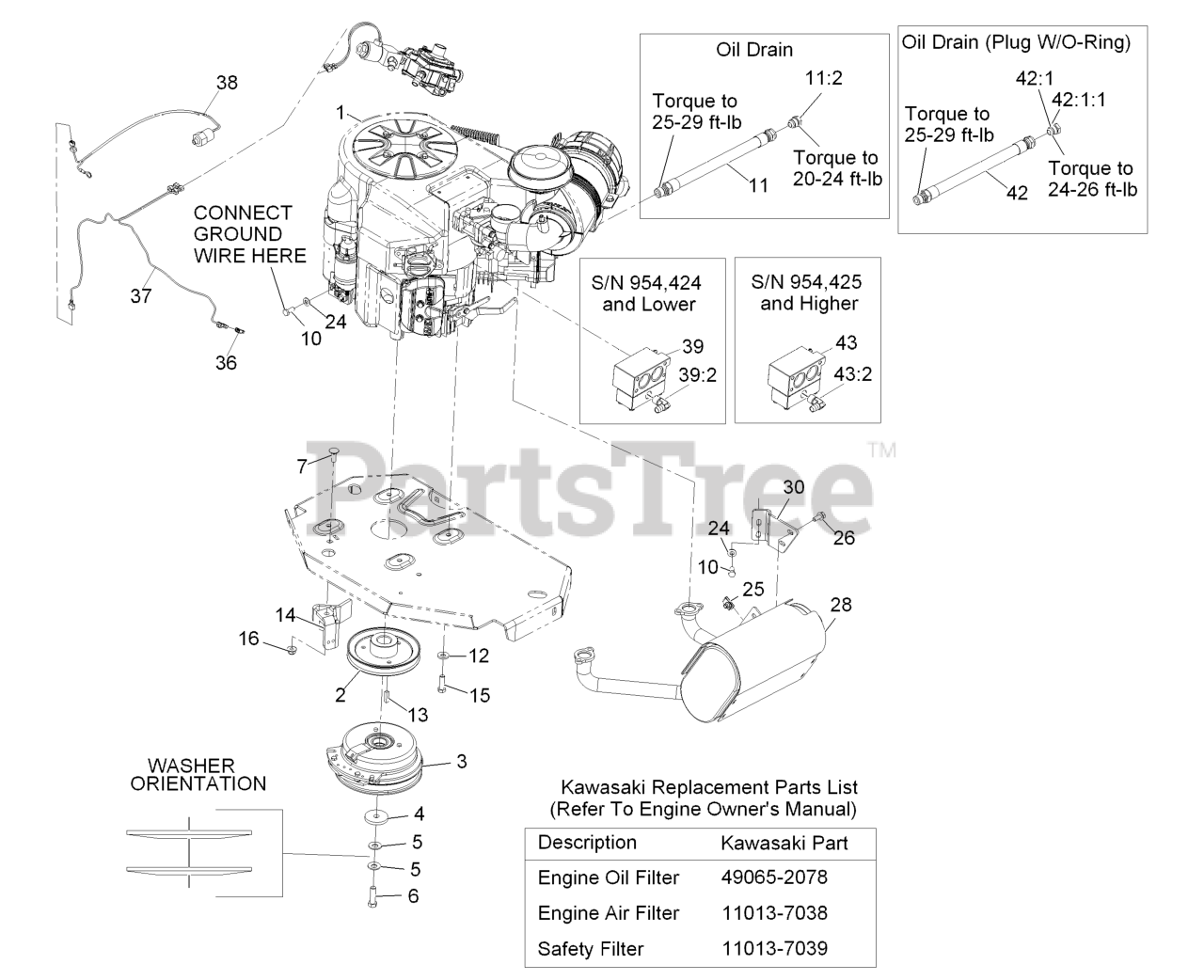

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki, Fx801v-S04-R

Note: Not serviced separately\n Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Exmark 109-9905

SHEAVE
(Superseded to 142-9445)

$53.99

$

In Stock, only 1 left!

0

3

Exmark 116-1620

CLUTCH KIT

$359.99

$

In Stock, Qty 16

0

4

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 15

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

10

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Exmark 109-4490

116-4924
(Superseded to 116-4924)

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$36.99

$

In Stock, Qty 6

0

11:2

Exmark 109-1012

PLUG

$7.99

$

Usually ships in 3-6 days

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Exmark 1-807259

KEY

$2.99

$

In Stock, Qty 13

0

14

Exmark 116-2612-01

CLUTCH-ANCHOR

$54.99

$

In Stock, only 4 left!

0

15

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 7

0

25

Exmark 94-2413

NUT-U

$2.99

$

In Stock, only 2 left!

0

26

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

28

Exmark 116-1712

MUFFLER

$216.99

$

Usually ships in 3-6 days

0

30

Exmark 116-0203

BRACKET-MUFFLER

$33.99

$

Usually ships in 3-6 days

0

36

Exmark 32170-079

TERMINAL-TAB

$

$

Not available

37

Exmark 116-2857

WIRE HARNESS

$157.99

$

Usually ships in 3-6 days

0

38

Exmark 116-2842

126-1778
(Superseded to 126-1778)

$351.99

$

In Stock, only 4 left!

0

39

Exmark 116-4689

MIXER ASM

$

$

Not available

39:2

Exmark 116-1127

ELBOW-90 DEG

$95.99

$

Usually ships in 3-6 days

0

42

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$36.99

$

In Stock, Qty 6

0

42:1

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

42:1:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

43

Exmark 116-5639

LPG MIXER ASM

$2207.99

$

Usually ships in 3-6 days

0

43:2

Exmark 116-5635

ELBOW

$

$

Not available
