LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 404314159 - 406294344) (2019) Cooling Water System Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

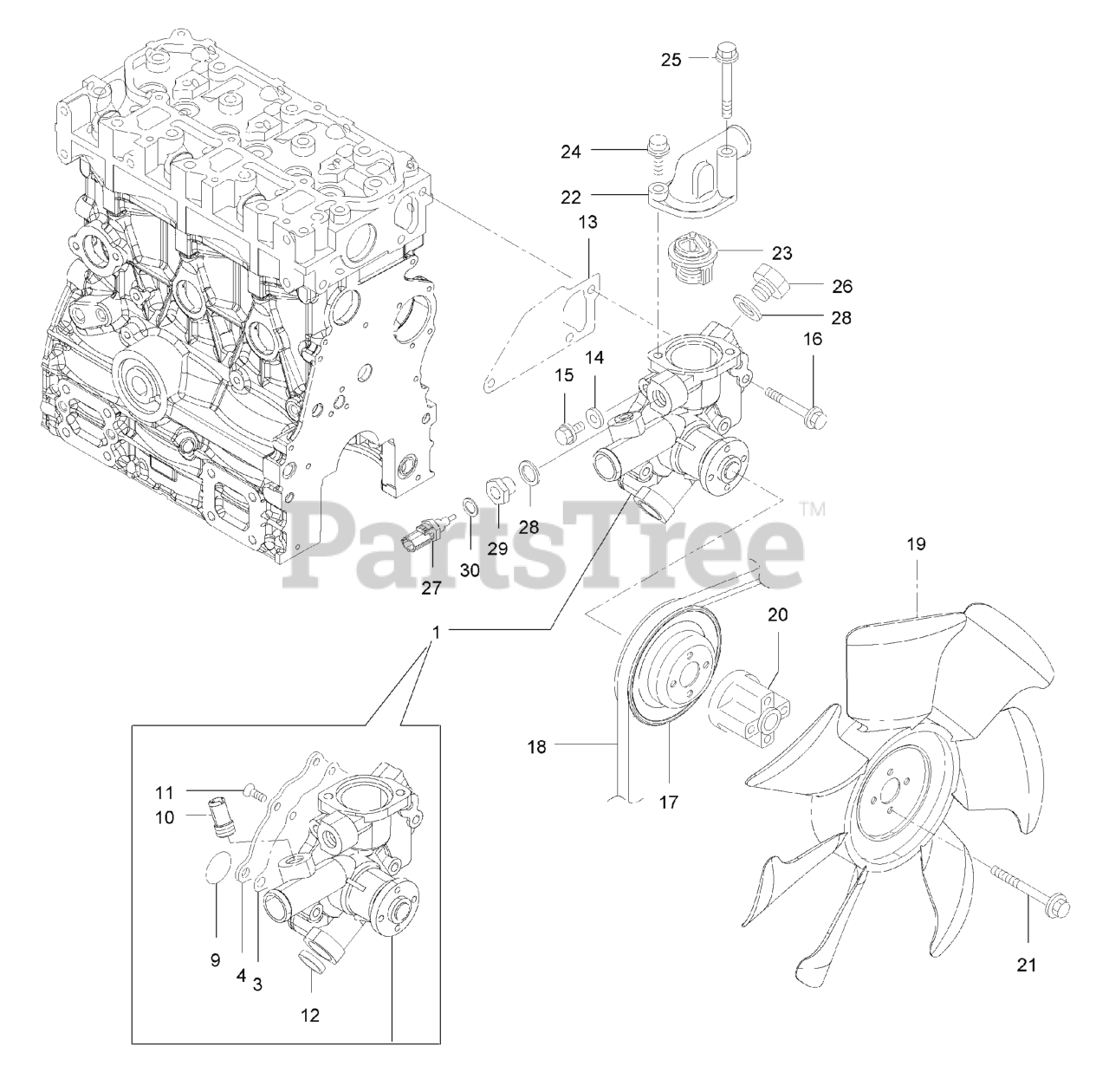

Cooling Water System Assembly Parts Diagram

  • Title
1

Exmark 135-4187

PUMP ASM-WATER

$1009.99

$

Usually ships in 3-6 days

0

3

$53.99

$

Usually ships in 3-6 days

0

4

$307.99

$

Usually ships in 3-6 days

0

9

$10.99

$

Usually ships in 3-6 days

0

10

Exmark 135-4191

JOINT-PIPE

$66.99

$

Usually ships in 3-6 days

0

11

$2.99

$

Usually ships in 3-6 days

0

12

$6.49

$

Usually ships in 3-6 days

0

13

Exmark 135-4193

GASKET-WATER PUMP

$20.99

$

Usually ships in 3-6 days

0

14

$1.49

$

Usually ships in 3-6 days

0

15

$3.49

$

Usually ships in 3-6 days

0

16

$5.49

$

Usually ships in 3-6 days

0

17

Exmark 135-4194

V-PULLEY

$99.99

$

Usually ships in 3-6 days

0

18

$58.99

$

In Stock, only 1 left!

0

19

Exmark 135-4196

FAN-COOLING 1

$67.99

$

Usually ships in 3-6 days

0

20

Exmark 135-4197

SPACER-FAN

$115.99

$

Usually ships in 3-6 days

0

21

$5.49

$

Usually ships in 3-6 days

0

22

Exmark 135-4199

COVER-THERMOSTAT

$140.99

$

Usually ships in 3-6 days

0

23

Exmark 135-4200

THERMOSTAT

$75.99

$

Usually ships in 3-6 days

0

24

$2.99

$

Usually ships in 3-6 days

0

25

$3.49

$

Usually ships in 3-6 days

0

26

$7.99

$

Usually ships in 3-6 days

0

27

Exmark 125-7124

SENSOR-THERMOSTAT, CW

$109.99

$

Usually ships in 3-6 days

0

28

$2.99

$

Usually ships in 3-6 days

0

29

$20.99

$

Usually ships in 3-6 days

0

30

Exmark 125-7176

WASHER-SEAL

$8.49

$

Usually ships in 3-6 days

0
