LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Transmission Assembly (Cont.) Center Section Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

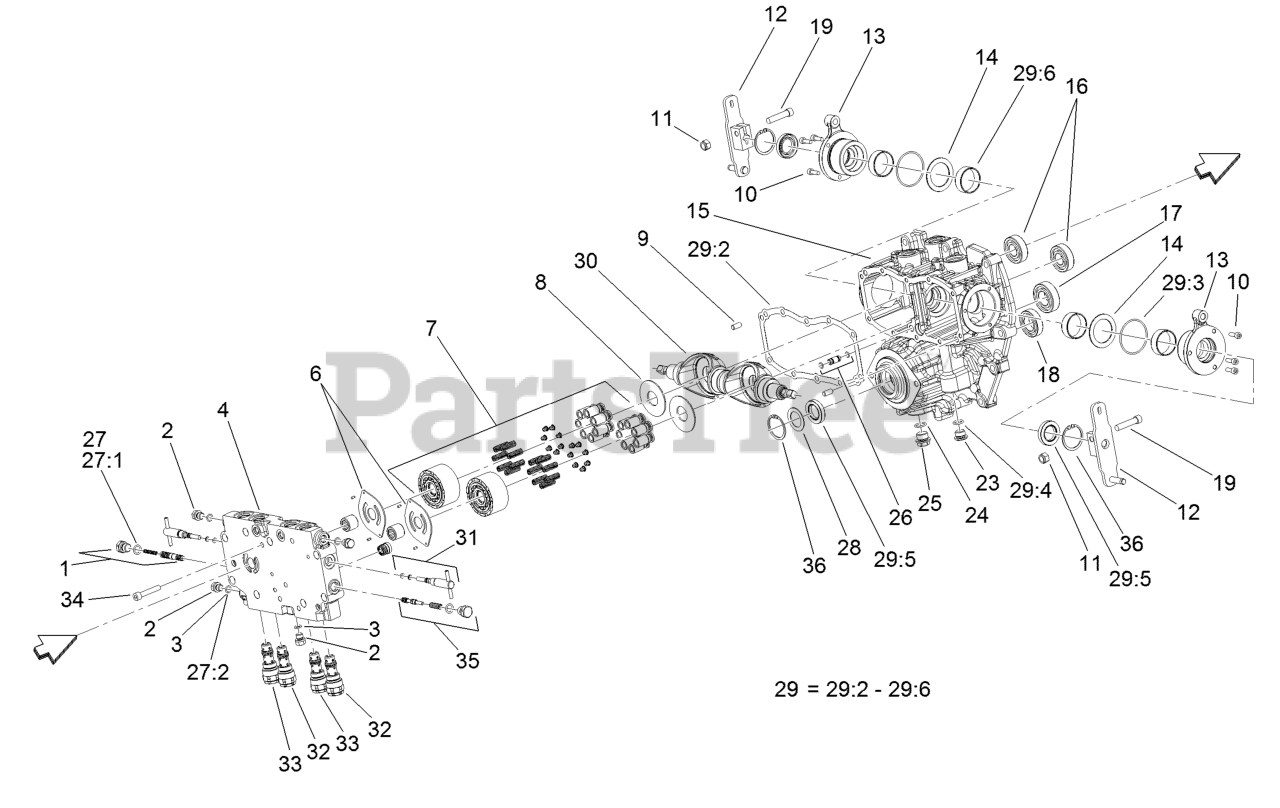

Transmission Assembly (Cont.) Center Section Assembly Parts Diagram

  • Title

1

Exmark 107-0807

Valve-Flushing, RH

$127.99

$

Usually ships in 3-6 days

0

2

Exmark 107-0857

Plug

$36.99

$

Usually ships in 3-6 days

0

3

Exmark 107-0817

O Ring-Plug

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 121-3377

Center Case, Complete

$3044.99

$

Usually ships in 3-6 days

0

6

Exmark 107-0805

Plate-Valve

$134.99

$

In Stock, only 2 left!

0

7

Exmark 107-0824

Cylinder Block ASM

$1300.99

$

Usually ships in 3-6 days

0

8

Exmark 107-0830

Plate-Thrust

$82.99

$

In Stock, only 3 left!

0

9

Exmark 92-0765

Pin-Parallel

$3.99

$

Usually ships in 3-6 days

0

10

Exmark 107-0859

Bolt

$1.99

$

Usually ships in 3-6 days

0

11

Exmark 120-6681

U-Nut

$10.99

$

Usually ships in 3-6 days

0

12

Exmark 120-6680

Arm-Control

$547.99

$

Usually ships in 3-6 days

0

13

Exmark 107-0832

Side Cover ASM

$436.99

$

Usually ships in 3-6 days

0

14

Exmark 107-0829

Washer

$

$

Not available

15

Exmark 120-5151

Pump Housing ASM

$3959.99

$

Usually ships in 3-6 days

0

16

Exmark 107-0826

Bearing

$36.99

$

Usually ships in 3-6 days

0

17

Exmark 107-0821

Bearing

$39.99

$

Usually ships in 3-6 days

0

18

Exmark 107-0838

Bearing

$67.99

$

Usually ships in 3-6 days

0

19

Exmark 120-6682

Bolt

$8.99

$

Usually ships in 3-6 days

0

23

Exmark 107-0861

Plug-NPTF

$10.99

$

Usually ships in 3-6 days

0

24

Exmark 237-79

O-Ring

$5.99

$

In Stock, Qty 17

0

25

Exmark 107-0867

Plug

$14.99

$

Usually ships in 3-6 days

0

26

Exmark 107-0812

Pipe

$115.99

$

Usually ships in 3-6 days

0

27

Exmark 107-0852

Center Case Seal Kit

$13.99

$

Usually ships in 3-6 days

0

27:1

Exmark 93-0418

O-Ring

$7.99

$

In Stock, only 3 left!

0

27:2

Exmark 107-0817

O Ring-Plug

$2.99

$

Usually ships in 3-6 days

0

28

Exmark 107-0813

Spacer

$9.99

$

Usually ships in 3-6 days

0

29

Exmark 107-0853

Pump Housing Seal Kit

$221.99

$

Usually ships in 3-6 days

0

29:2

Exmark 107-0810

Gasket-Case, Center

$22.99

$

Usually ships in 3-6 days

0

29:3

Exmark 107-0817

O Ring-Plug

$2.99

$

Usually ships in 3-6 days

0

29:4

Exmark 104-3298

Packing

$

$

Not available

29:5

Exmark 107-0814

Seal

$50.99

$

In Stock, only 2 left!

0

29:6

Exmark 107-0825

Ring-Seal

$24.99

$

In Stock, only 2 left!

0

30

Exmark 120-6679

Plate-Swash

$866.99

$

Usually ships in 3-6 days

0

31

Exmark 107-0808

Valve-Bypass

$85.99

$

Usually ships in 3-6 days

0

32

Exmark 107-0804

Valve-Rear

$443.99

$

Usually ships in 3-6 days

0

33

Exmark 107-0803

Valve-Front

$443.99

$

Usually ships in 3-6 days

0

34

Exmark 107-0863

Bolt

$3.99

$

Usually ships in 3-6 days

0

35

Exmark 107-0806

Valve-Flushing, LH

$127.99

$

Usually ships in 3-6 days

0

36

Exmark 92-0757

Ring-Snap

$7.99

$

Usually ships in 3-6 days

0
