LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Transmission Assembly (Cont.) Gear Case and Clutch Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

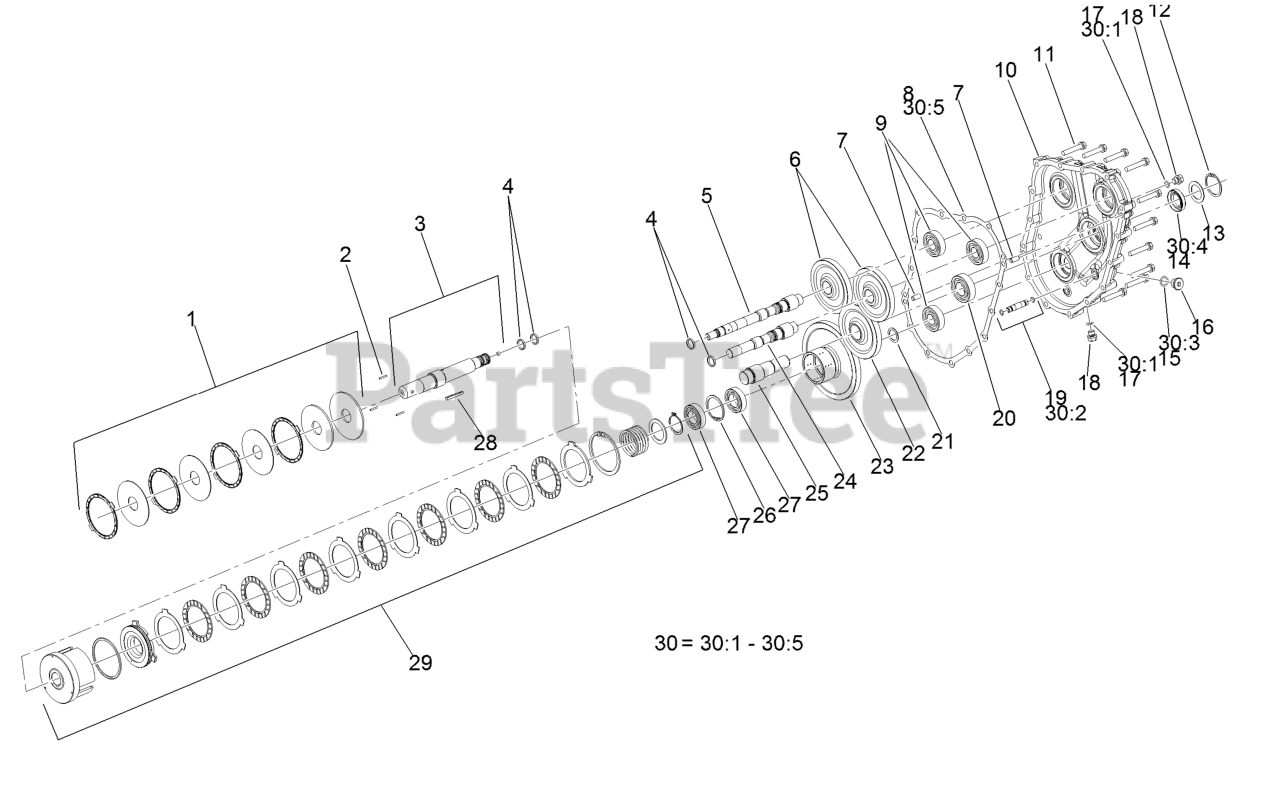

Transmission Assembly (Cont.) Gear Case and Clutch Assembly Parts Diagram

  • Title

1

Exmark 107-0839

PTO Brake ASM

$236.99

$

In Stock, only 2 left!

0

2

Exmark 107-0837

Rod-Push

$4.49

$

In Stock, only 3 left!

0

3

Exmark 107-0833

PTO Shaft ASM

$551.99

$

In Stock, only 2 left!

0

4

Exmark 107-0825

Ring-Seal

$24.99

$

In Stock, only 2 left!

0

5

Exmark 107-0827

Shaft-Pump

$69.99

$

Usually ships in 3-6 days

0

6

Exmark 107-0823

Gear-Pump

$254.99

$

Usually ships in 3-6 days

0

7

Exmark 92-0765

Pin-Parallel

$3.99

$

Usually ships in 3-6 days

0

8

Exmark 107-0816

Gasket-Housing, Gear

$71.99

$

In Stock, only 2 left!

0

9

Exmark 107-0826

Bearing

$36.99

$

Usually ships in 3-6 days

0

10

Exmark 120-5152

Housing-Case, Gear

$1792.99

$

Usually ships in 3-6 days

0

11

Exmark 107-0863

Bolt

$3.99

$

Usually ships in 3-6 days

0

12

Exmark 92-0757

Ring-Snap

$7.99

$

Usually ships in 3-6 days

0

13

Exmark 107-0813

Spacer

$9.99

$

Usually ships in 3-6 days

0

14

Exmark 107-0814

Seal

$50.99

$

In Stock, only 2 left!

0

15

Exmark 104-3298

Packing

$

$

Not available

16

Exmark 107-0861

Plug-NPTF

$10.99

$

Usually ships in 3-6 days

0

17

Exmark 107-0817

O Ring-Plug

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 107-0857

Plug

$36.99

$

Usually ships in 3-6 days

0

19

Exmark 107-0811

Pipe

$198.99

$

Usually ships in 3-6 days

0

20

Exmark 107-0821

Bearing

$39.99

$

Usually ships in 3-6 days

0

21

Exmark 107-0836

Spacer

$2.49

$

Usually ships in 3-6 days

0

22

Exmark 107-0820

Gear-Input

$254.99

$

Usually ships in 3-6 days

0

23

Exmark 107-0834

Gear-PTO

$566.99

$

Usually ships in 3-6 days

0

24

Exmark 107-0822

Shaft-Pump

$169.99

$

Usually ships in 3-6 days

0

25

Exmark 107-0819

Shaft-Input

$157.99

$

Usually ships in 3-6 days

0

26

Exmark 92-0758

Ring-Snap

$5.99

$

Usually ships in 3-6 days

0

27

Exmark 107-0838

Bearing

$67.99

$

Usually ships in 3-6 days

0

28

Exmark 107-0866

Key

$5.49

$

In Stock, only 2 left!

0

29

Exmark 107-0835

Clutch Cylinder ASM

$885.99

$

In Stock, only 2 left!

0

30

Exmark 107-0854

Gear Housing Seal Kit

$84.99

$

Usually ships in 3-6 days

0

30:1

Exmark 107-0817

O Ring-Plug

$2.99

$

Usually ships in 3-6 days

0

30:2

O-Ring

$

$

Not available

30:3

Exmark 104-3298

Packing

$

$

Not available

30:4

Exmark 107-0814

Seal

$50.99

$

In Stock, only 2 left!

0

30:5

Exmark 107-0816

Gasket-Housing, Gear

$71.99

$

In Stock, only 2 left!

0
